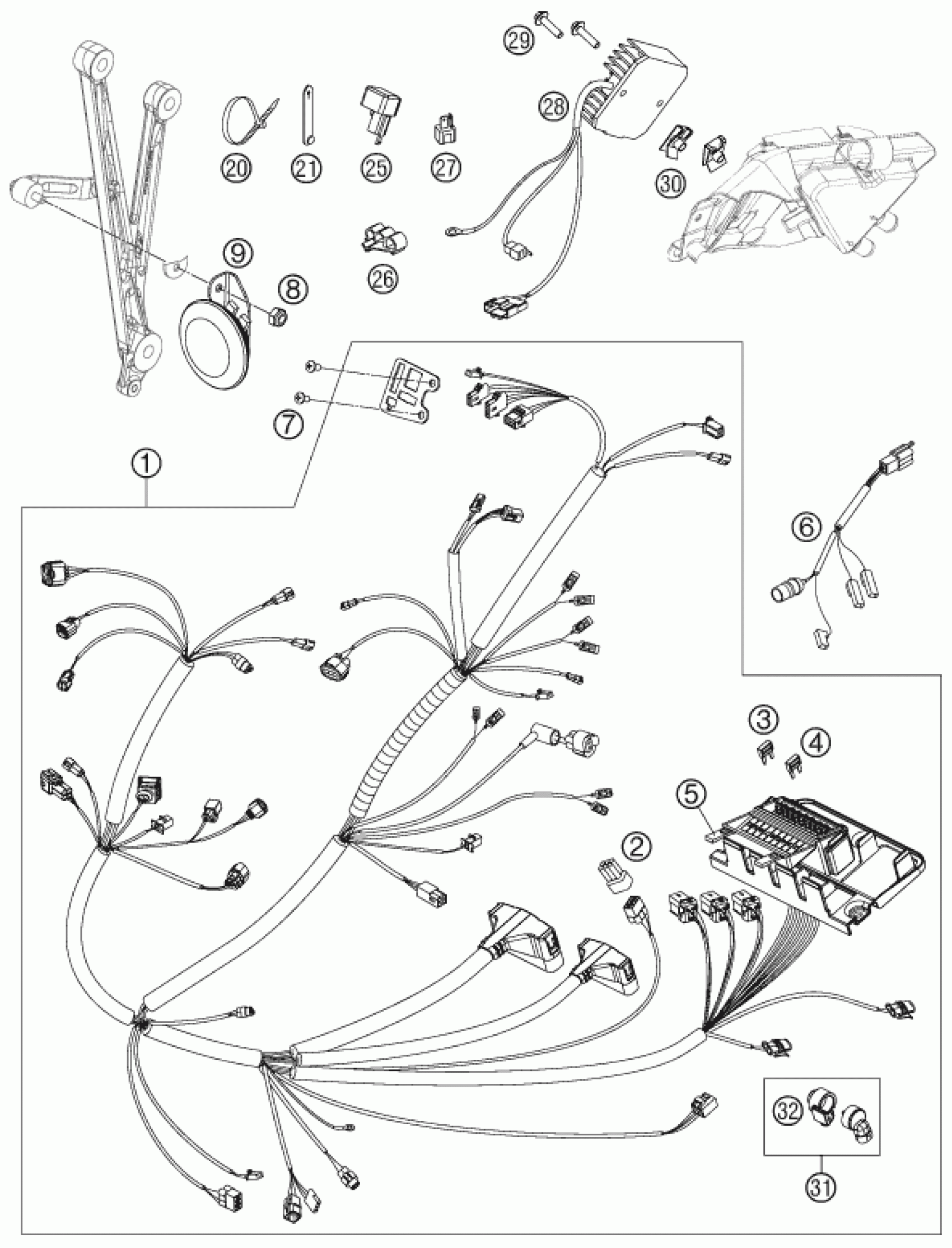

KTM 690 ENDURO R 2010 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS 690 END. R

76511175100

Unavailable

2

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

6

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

7

EJOT PT screw K50x12

0081050121

$2.05

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

DC HORN CPL.

76511060000

$40.57

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

20

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

21

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

25

FLASHER UNIT 97

44611207200

$49.83

26

WIRING HOLDER 05

61011093000

$3.48

27

DIODE S3H-15 97

58411096100

$9.81

28

VOLTAGE REGULATOR

62511034100

$163.80

29

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

30

clip nut M6

54603048100

$4.11

31

MAP-SELECT-SWITCH

76511010000

$85.36

32

RUBBER HOLDER F. MAP-SEL-SWIT.

76511010050

$10.46
