MASK, FENDERS

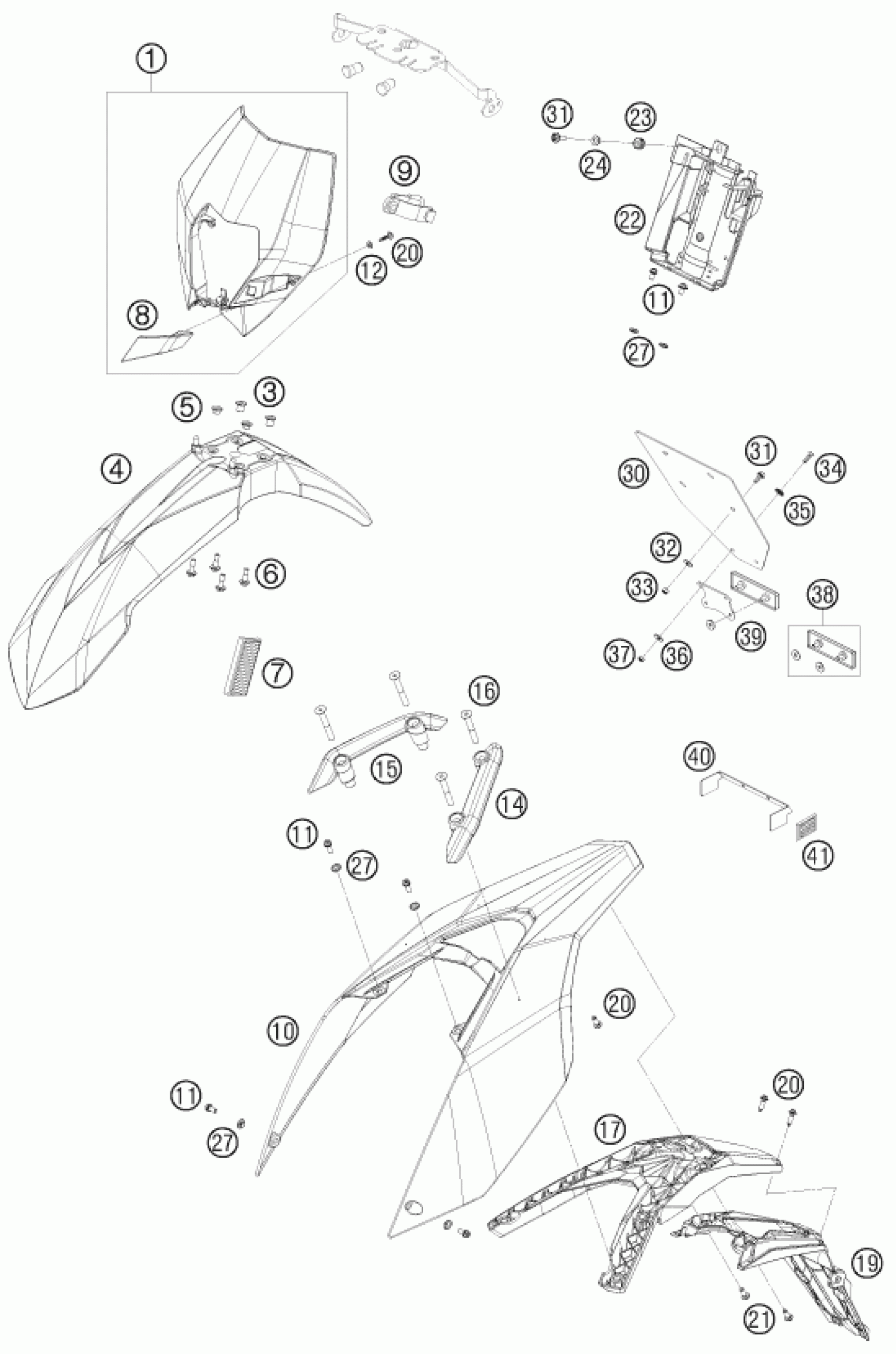

KTM 690 ENDURO R 2010 MASK, FENDERS Diagram
#
1
HEAD LIGHT MASK ORANGE 08
7800800100004
Unavailable
3
COLLAR BUSHING 7,2X10X15X8,5
62508009000
Unavailable
4
FRONT FENDER 09
7650801010004
Unavailable
5
SPACER BUSHING 03
54808020000
Unavailable
6
HH collar screw M6x20 TX30
0024060206
Unavailable
7
REFLECTOR YELLOW '99
58412080100
Unavailable
8
BRAKE HOSE GUIDE ORANGE 08
7800802200004
Unavailable
9
MASK RUBBER UFO WP '95
50211086000
Unavailable
10
REAR FENDER
7650801300004
Unavailable
11
HH collar screw M6x12 TX30
0025060126
Unavailable
12
WASHER DIN0125-A 6,4
0125060003
Unavailable
14
HAND GRIP L/S
76512008000
Unavailable
15
HAND GRIP R/S
76512009000
Unavailable
16
COUNTERSUNK SCREW ISA45 M8X75
0019080756
Unavailable
17
NUMBER PLATE CARRIER TOP 08
76508016000
Unavailable
19
NUMBER PLATE LO. PART 08
76508016050
Unavailable
20
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
21
SPECIAL SCREW T60 6X30 WS=6
0017060303
Unavailable
22
COVER 08
76514064000
Unavailable
23
rubber grommet D=8mm open
31008060000
Unavailable
24
COLLAR BUSHING 6,1X8,1X14X8 07
75014010050
Unavailable
27
COLLAR BUSHING
76508043050
Unavailable
30
license plate mouning plate
60012081200
Unavailable
31
HH collar screw M6x15 TX30
0024060156
Unavailable
32
WASHER DIN0125-A 6,4
0125060003
Unavailable
33
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
34
OVAL HEAD SCREW DIN0966-M 5X16
0966050163
Unavailable
35
WASHER 6MM
40006006000
Unavailable
36
WASHER DIN0125-A 5,3
0125050003
Unavailable
37
Self locking nut DIN 985 M5
0985050003
Unavailable
38
REFLECTOR RED
58412080000
Unavailable
39
BRACKET FOR REFLECTOR
58412080050
Unavailable
40
BRACKET SIDE REFLECTOR 06
62512081000
Unavailable
41
SIDE REFLECTOR RED REAR
16512180100
Unavailable
