FRONT FORK, TRIPLE CLAMP

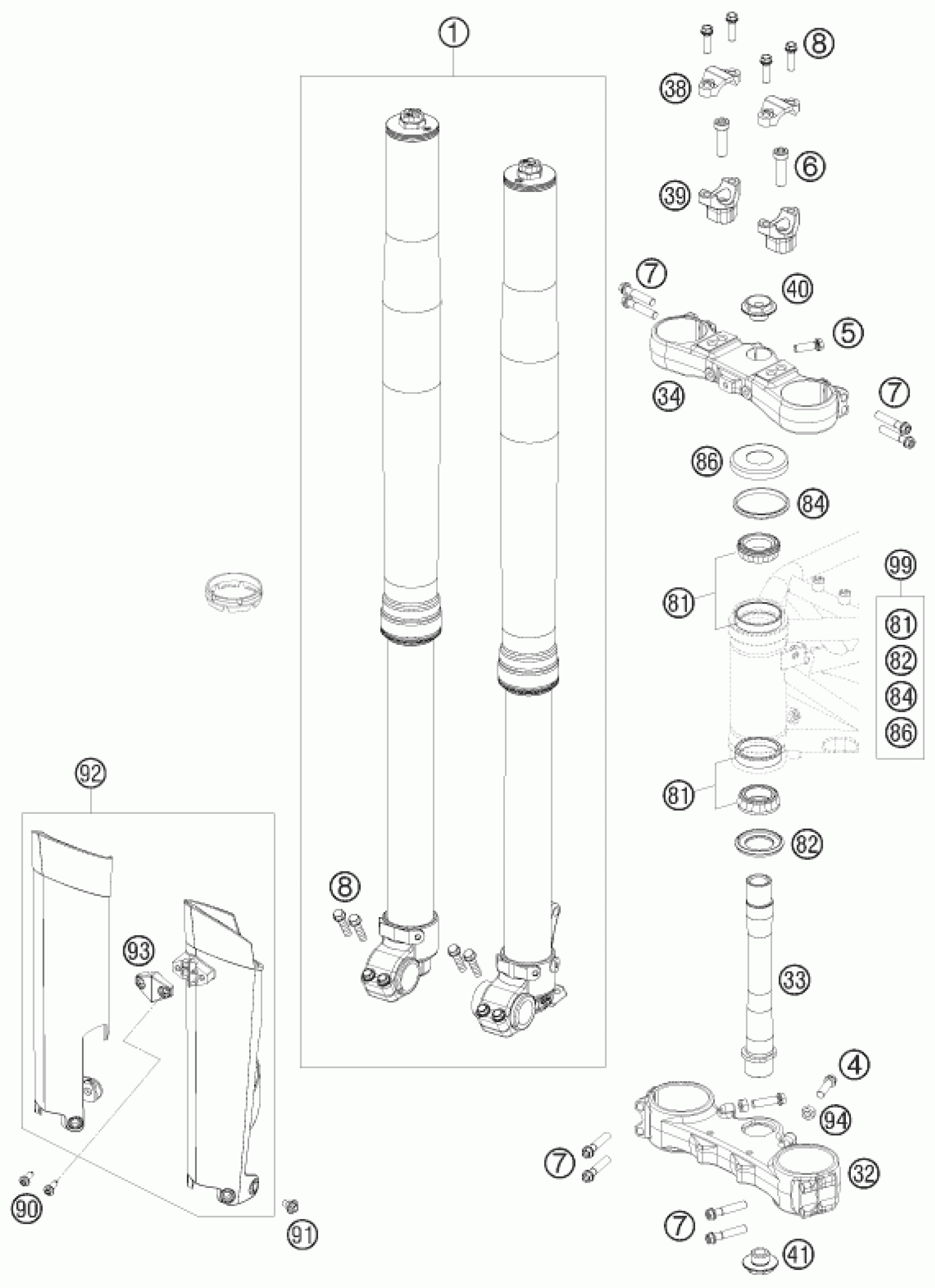

KTM 690 ENDURO R 2010 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK 690 ENDURO R 2009
14187E4101
Unavailable
4
HH collar screw M8x25
0025080256
$2.05
5
HH collar screw M8x30
0025080306
$3.08
6
AH SCREW DIN6912-M10X35 10.9
0912100356
$4.11
7
HH COLLAR SCREW M8X40 TX40
0025080406
$4.11
8
HH collar screw M8x25
0025080256
$2.05
32
BOT.TRIPLE CLAMP 22-24 OFFSET
7650103102301S
$213.51
33
FORK TUBE L=237MM 08
76501033000
$120.42
34
TRIPLE CLAMP TOP 22-24 ADJ.
7650103402301
$285.26
38
HANDLEBAR CLAMP 28MM 05
59401038000
$25.05
39
Handlebar mount D28mm-H42mm
59401039042
$36.27
40
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
$11.21
41
STE.HEAD SCR. M20X1,5 WS=27 SL
54801036100
$14.67
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
86
STEERING HEAD COVER
54201086000
$8.50
90
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECT L/S+R/S WHITE 09
7800109410028
$30.94
93
CLAMP F. SPEED. CABLE D=6MM 08
7800108500028
$5.23
94
Hexagon nut DIN934 M8
0934080003
$2.05
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
