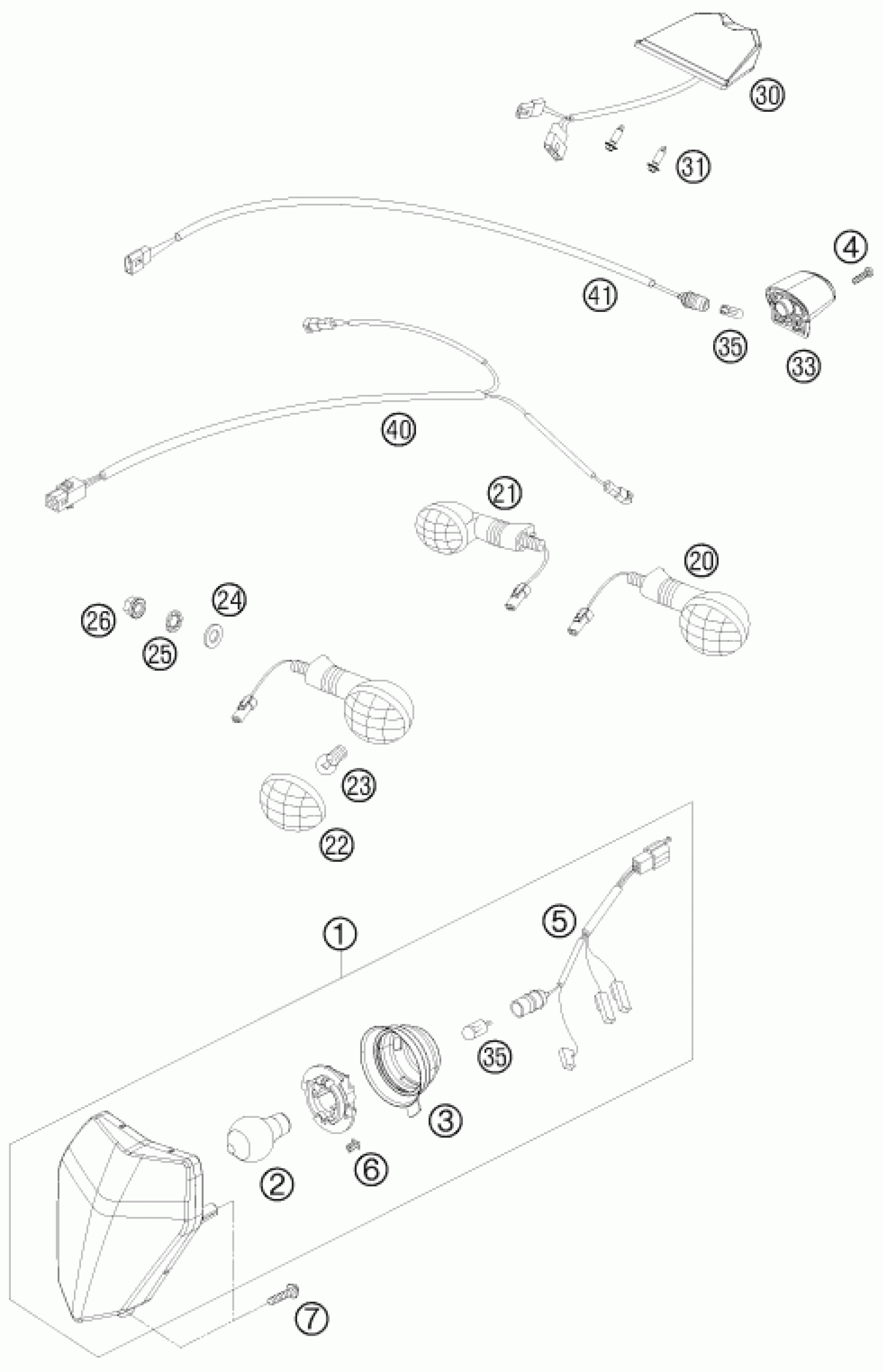

KTM 690 ENDURO R 09 <2009> LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. EXC-EU 08

78014001000

Unavailable

2

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

3

RUBBER CAP FOR HEAD LIGHT 05

54814001050

Unavailable

4

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

5

CABLE FOR HEAD LIGHT 2005

54811001050

Unavailable

20

FLASHER CPL.FRT L/S REAR R/S

54814025100

Unavailable

21

FLAHER CPL FRONT R/S REARL/S

54814026100

Unavailable

22

FLASHER LENS L/S R/S 05

54814028000

Unavailable

23

BULB 12V 10W (BA15S)

44111015100

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT

76514040000

Unavailable

31

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

33

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

40

WIRING HARNESS FLASHER REAR 08

76511076000

Unavailable

41

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable

6

DRAIN HOLE COVER

78014009000

Unavailable

7

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
