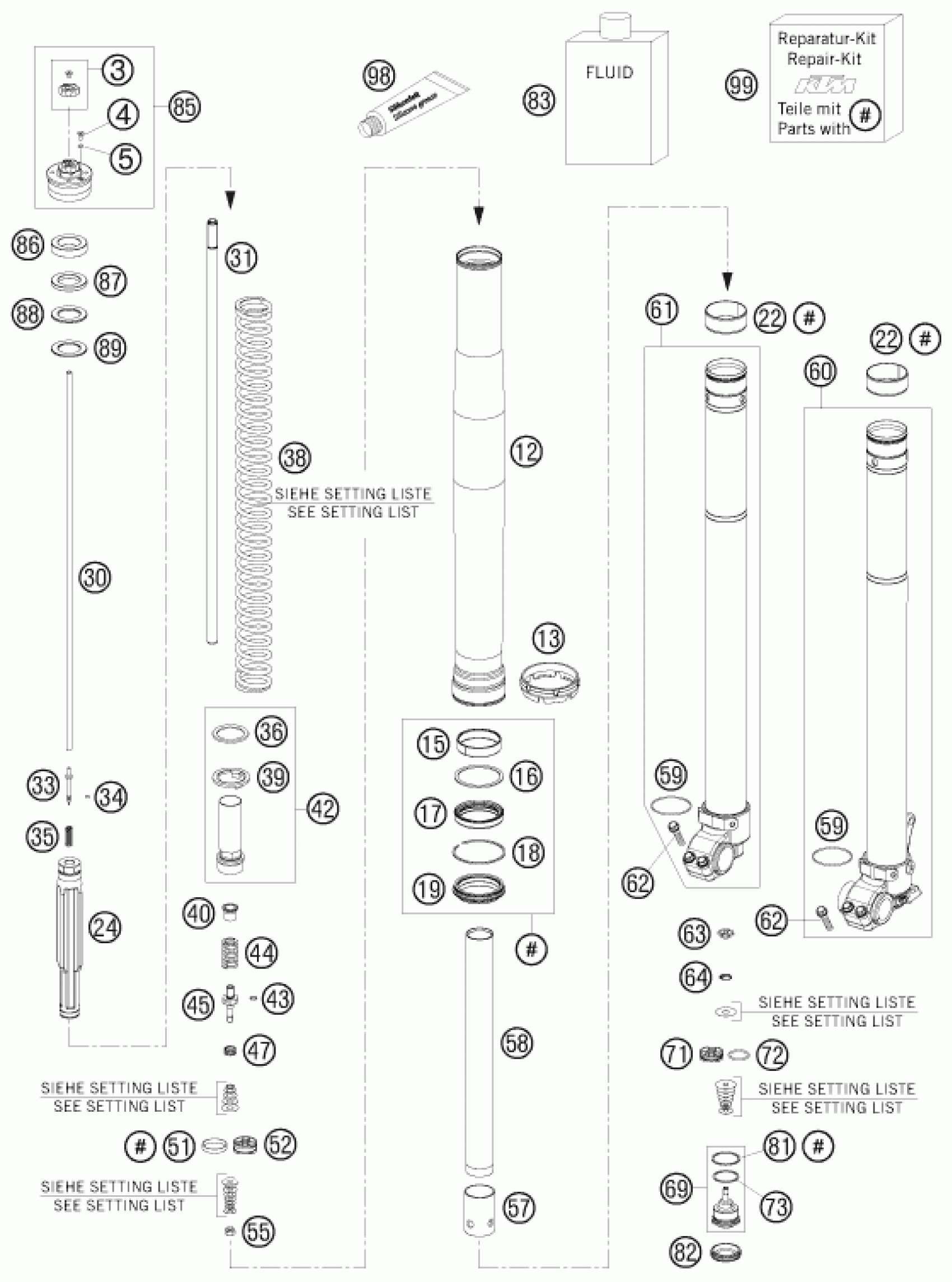

KTM 690 ENDURO R 09 <2009> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

SETTING KNOB + SCREW

48600564S

$5.23

4

Cross flat head screw M4x6

48600058

$1.82

5

O-ring 3,7x1,6 NBR70

48600009

$1.49

12

Fork outer tube 49,13x577 dt54

48600761

$310.41

13

Fork protection ring 62,1mm

48600698

$9.34

15

DU-BUSH D48XD52X12DDL02

48600429

$12.05

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST CAP D=48 58,4X11,8

48600400

$12.80

22

DU-BUSH D47XD49X20DDL02

48600428

$12.05

24

Stop 12,4x31,9x200 cpl.

48600557S

$40.50

30

adjusting tube 6x495

48600562

$12.10

31

PISTON ROD D=12 L=529 ALU

48600561

$242.99

33

Needle 4,5x43,6

48600277

$5.51

34

O-ring 2x1,5 NBR70

48600298

$1.49

35

Spring (5,4) 4-23 rebound

48600444

$3.08

36

Washer 32x42x2,5 plastic

48600113

$11.12

38

SPRING D43.2 L485 5.2N/MM

91410010S

Unavailable

38

SPRING D43.2L485 5.0N/MM D43.2

91410021S

Unavailable

38

Mainspring D43.2 L465 5.4N/MM

91410065S-00

Unavailable

39

Spring retainer 33,5x43x3

48600021

$16.73

40

Spring retainer 12,3x19x1,25 r

48600525

$2.05

42

SCREW SLEEVE M27X,08 L=100 KPL

48600762S

$25.64

43

O-ring 6x1,2 NBR70

48600299

$1.49

44

Spring (13,9) 17-32 rebound

48600511

$1.49

45

Tap 6x46 rebound

48600576

$9.72

47

Spring (11,4) 0,4-8 valve

48600382

$2.05

51

Piston ring 21x23x5

48600455

$4.50

52

Piston 6,07x22,7x13

48600575

$14.76

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

57

Adapter 23x28x70

48600764

$22.34

58

Tube 23x350

48600763

$74.98

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S + TUBE CPL. 09

48600862S1

$249.42

61

AXLE CLAMP R/S + TUBE CPL. 09

48600861S1

$564.81

62

HH collar screw M8x25

0025080256

$2.05

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

Tap compression cpl.

48600586S

$37.67

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE5 5L 2008

48600765S1

$149.59

85

Screw cap M51X1.5 cmpl. 0

48600558S

$72.87

86

Preload bush 26,5x42x10

48600038

$3.08

87

Preload bush 26,5x42x5

48600037

$4.11

88

Preload bush 42x26,5x2,5

48600036

$2.05

89

Preload bush 26,5x42x1,5

48600053

$4.11

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR-KIT EXC FRONT FORK 2009

R14016

$78.53
