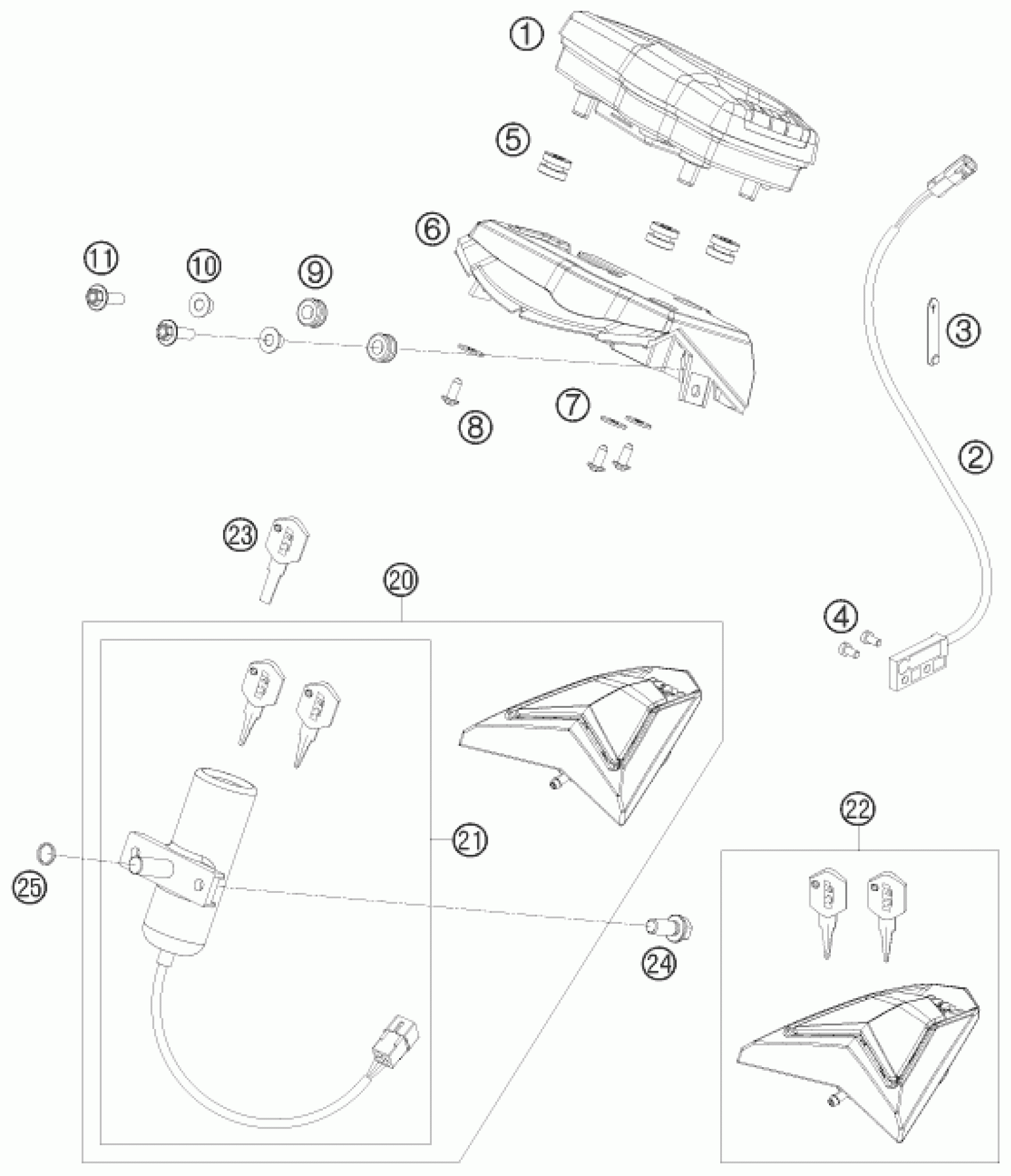

KTM 690 ENDURO 2010 INSTRUMENTS / LOCK SYSTEM Diagram

SPEEDOMETER SENSOR

76514068000

$86.39

SPEEDO KM/H 21'' 10

75014269100

$542.10

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

rubber grommet 16x10.8x3

58214069051

$5.23

SPEEDOMETER BRACKET

76514060000

$15.51

washer DIN 9021 A - 5.3

0021050003

$1.49

EJOT PT screw K50x12

0081050121

$2.05

rubber grommet D=8mm open

31008060000

$2.05

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

HH collar screw M6x15 TX30

0024060156

$3.08

LOCK SET 08

76511066044

$264.78

IGNITION LOCK 08

76511066000

$135.19

TANK PLUG 08

76507008000

$94.29

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05
