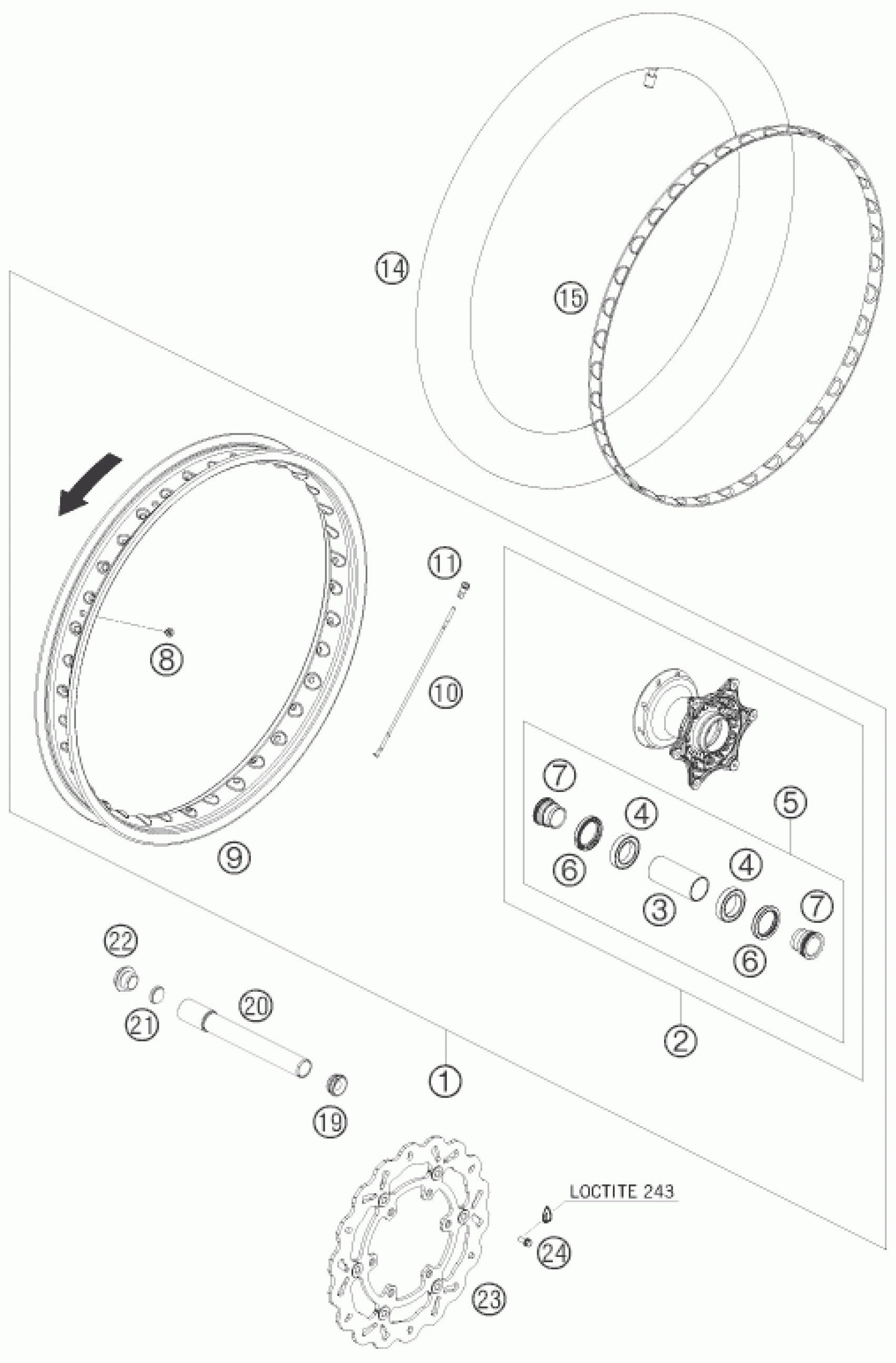

KTM 690 ENDURO 2010 FRONT WHEEL Diagram

#

Description
Price

2

FRONT HUB CPL. 08

75309010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

FRONT WHEEL REP. KIT

78009015000

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

8

PLUG FOR RIM

55003135000

Unavailable

9

Rim 1.85X21" DID black 08

7650907000030

Unavailable

10

SPOKE M4,5X226-18'' INOX

75309073226

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

14

Hose 21"

50309075000

Unavailable

15

RIM BAND FRONT 2MM 2003

58409073100

Unavailable

19

PLUG BUSHING WS=27 03

54809081050

Unavailable

20

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

21

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

22

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

23

FRONT BRAKE DISC D=300

76509060100

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

1

FRONT WHEEL CPL. 1,85X21'' 08

7650900104430

Unavailable
