Description

Price

1

EXHAUST MANIFOLD 08

76505007000

$704.23

2

self-locking nut M8 Cu

51010086100

$3.08

3

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

4

Exhaust gasket 05

61005005000

$10.00

5

LAMBDA SENSOR 07

75041090000

$171.19

6

HEAT SHIELD EXHAUST MANIFOLD

76505090010

$76.19

7

SCREW TORX M5X10 05

58605083010

$2.05

8

HEAT SHIELD SILENCER

76505090020

$71.43

9

GRAPHIT RING 55X50X25 05

58605005000

$16.92

10

CLAMP FOR SILENCER 57,4MM 08

76505051000

$27.67

11

SILENCER 08

76505083000

Unavailable

12

clip nut M5

69008021080

$3.08

13

HH collar screw M8x35 TX40

0025080356

$4.11

14

collar bushing 8.5x12x23.5x10

58405050065

$5.23

15

damp. component silicone grey

54305068100

$8.31

16

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08

17

HOLDER SILENCER

76505084000

$35.90

18

TOOTH LOCK WASHER DIN6797-J

0797050000

$2.05

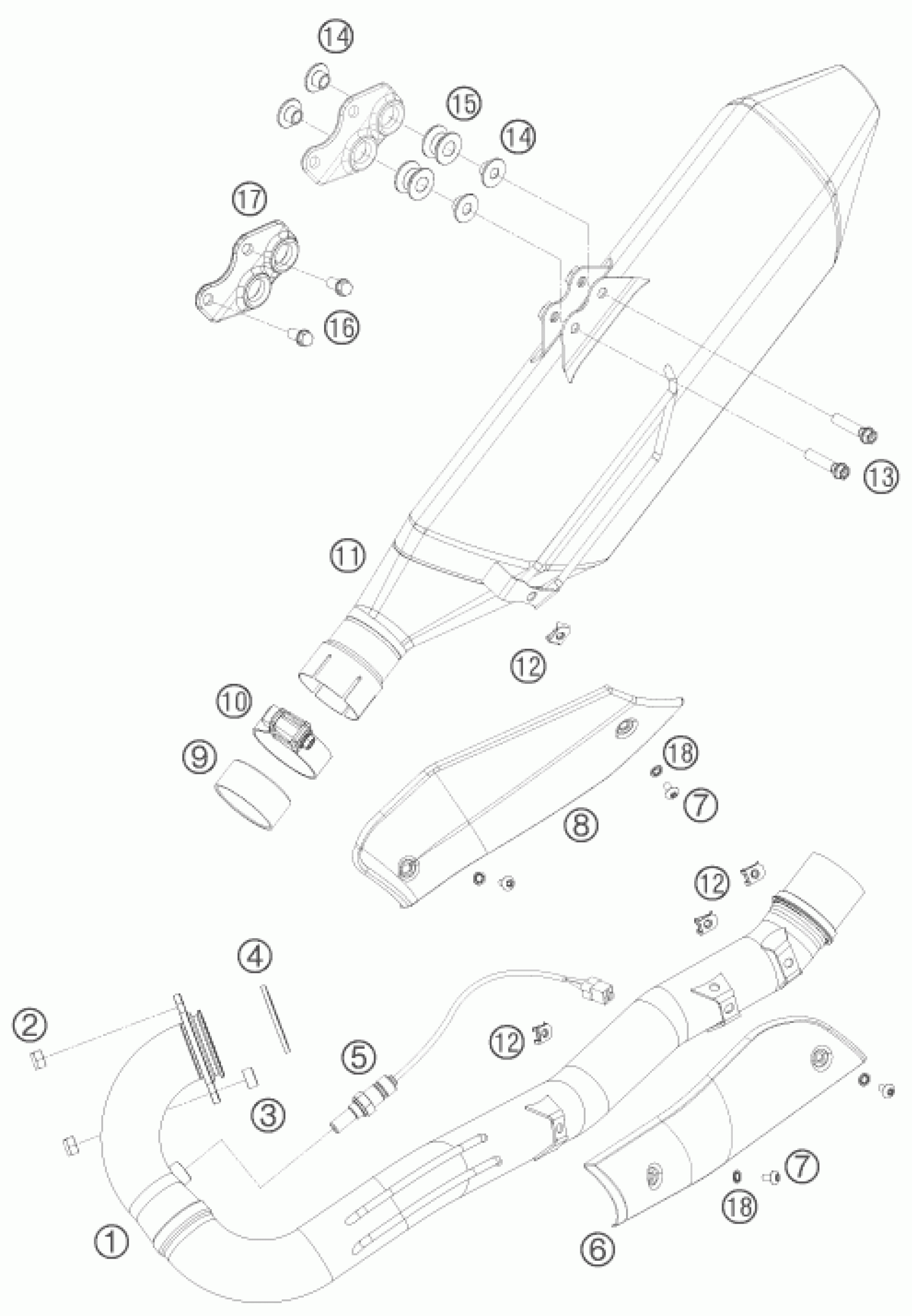

KTM 690 ENDURO 2010 EXHAUST SYSTEM Diagram

EXHAUST MANIFOLD 08

self-locking nut M8 Cu

SPACER BUSH. 8,5X15X7,5 05

Exhaust gasket 05

LAMBDA SENSOR 07

HEAT SHIELD EXHAUST MANIFOLD

SCREW TORX M5X10 05

HEAT SHIELD SILENCER

GRAPHIT RING 55X50X25 05

CLAMP FOR SILENCER 57,4MM 08

SILENCER 08

clip nut M5

HH collar screw M8x35 TX40

collar bushing 8.5x12x23.5x10

damp. component silicone grey

HH COLLAR SCREW M 8X16 WS=13

HOLDER SILENCER

TOOTH LOCK WASHER DIN6797-J
