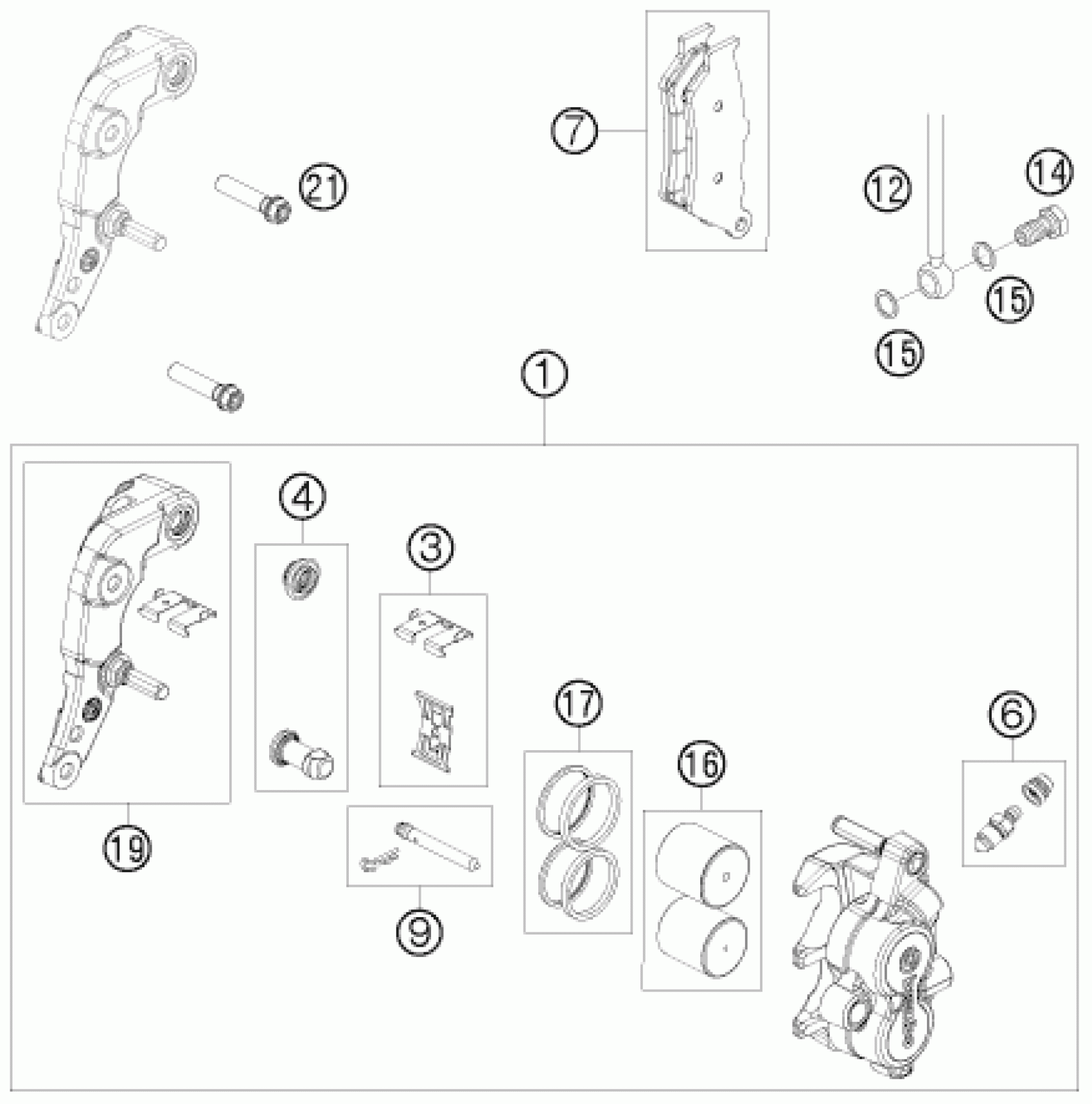

KTM 690 ENDURO 09 <2009> FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER FRONT L/S 06

6011301500101

$283.48

3

RETAINING PLATE SET FRONT 03

60013018000

$15.42

4

CUP SET SHORT

54613218000

$23.55

6

BLEEDER SCREW WITH CAP

60013020000

$7.38

7

BRAKE PADS TOSHIBA TT 2172 HHA

60013030000

$67.87

9

BOLT SET L/S

60013017000

$17.66

12

BRAKE HOSE FRONT 1265MM

76513012000

$97.10

14

banjo bolt M10x1x19 black

54813020100

$9.90

15

sealing ring DIN 7603 10x14x1

0603100141

$2.05

16

BRAKE PISTONS 30/32MM

60013083000

$64.04

17

REP.KIT SEALING RINGS 30/32MM

60013019000

$21.59

19

BRAKE CALIPER SUPPORT FR. L/S

60113049100

$97.32

21

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08
