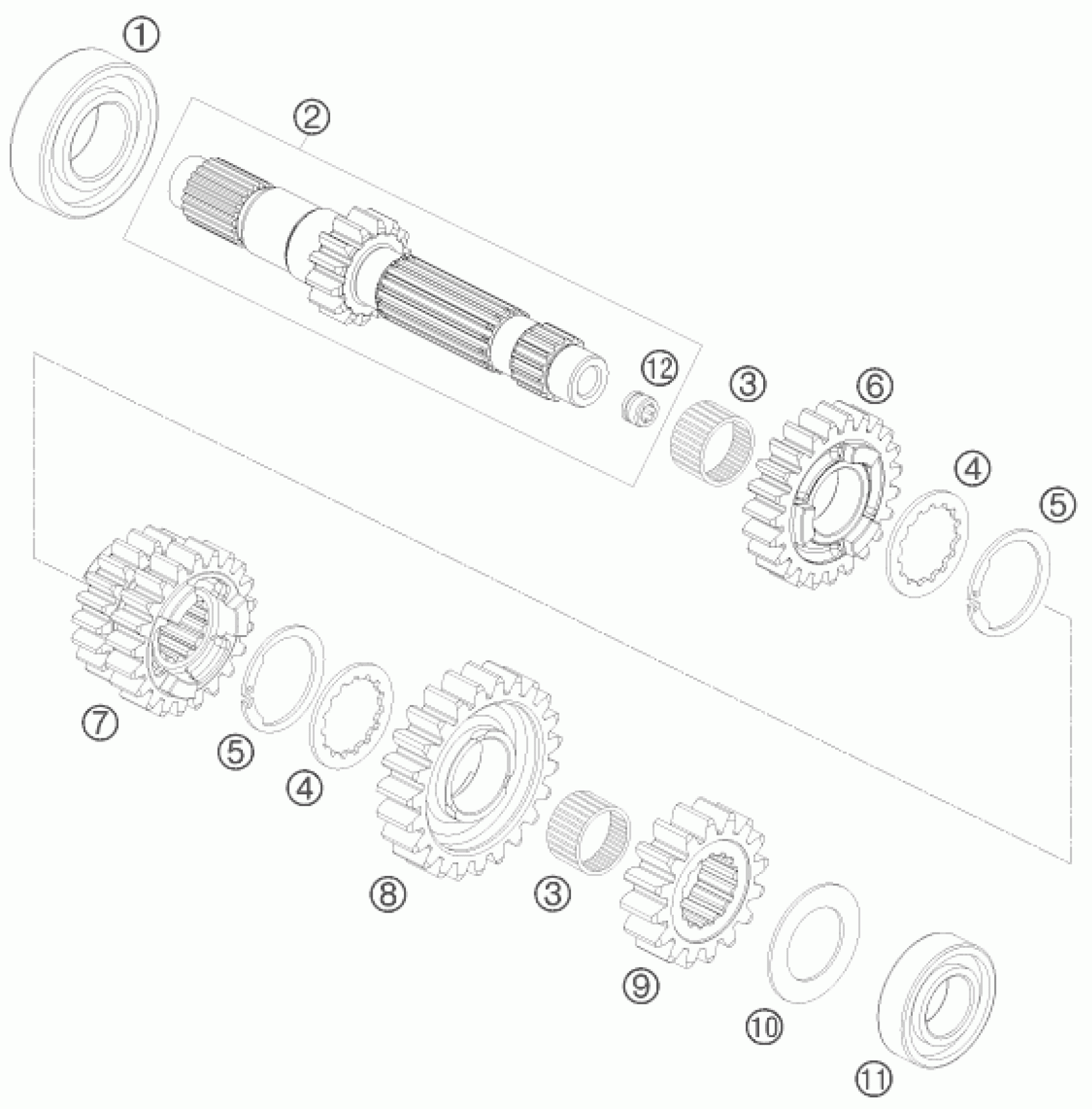

KTM 690 ENDURO 08 <2008> TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

BALL BEARING 58/28 C4 N

06252858161

$19.53

2

MAIN SHAFT

75033001100

$140.10

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

4

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

5

STOP-V-RING AV25

75033041000

$6.07

6

IDLER 5. GEAR 07

75033005000

$49.46

7

3/4TH GEAR MAINSHAFT 07

75033003000

$147.44

8

IDLER 6. GEAR 07

75033006000

$150.15

9

SOLID GEAR 2.G. 07

75033002000

$63.95

10

Shim 20x31.9x1

59033080000

$2.05

11

BALL BEARING 6004 TNH C3

0625060041

$26.26

12

GUIDE BUSHING

77333001160

$5.23
