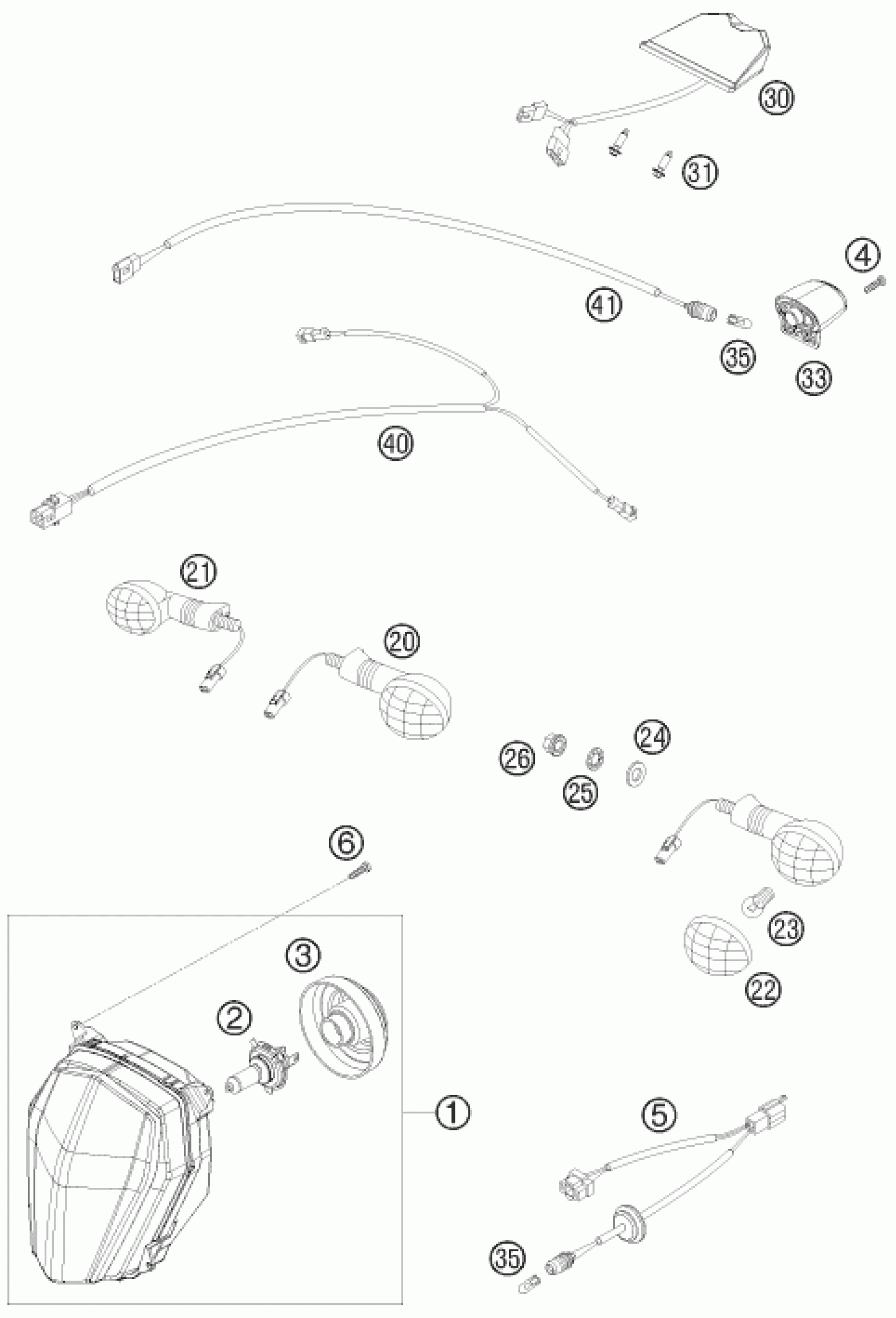

KTM 690 ENDURO 08 <2008> LIGHTING SYSTEM Diagram

#

Description
Price

20

FLASHER CPL.FRT L/S REAR R/S

54814025100

$37.20

22

FLASHER LENS L/S R/S 05

54814028000

$6.72

30

REAR LIGHT

76514040000

$106.39

31

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

33

LICENSE PLATE ILLUMINATION 07

75014047000

$10.37

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

40

WIRING HARNESS FLASHER REAR 08

76511076000

$24.77

41

WIRING HARN. LIC. PLATE ILLUM.

76511078000

$7.85

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

21

FLAHER CPL FRONT R/S REARL/S

54814026100

$37.20

23

BULB 12V 10W (BA15S)

44111015100

$3.08

24

Washer DIN0433-M10

0433100003

$1.49

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

6

EJOT PT screw K50x12

0081050121

$2.05

2

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

3

RUBBER CAP FOR HEAD LIGHT

76514001050

$10.74

4

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

5

WIRING HARNESS HEAD LIGHT

76511079000

$21.78

1

HEAD LIGHT

76514001000

$158.38
