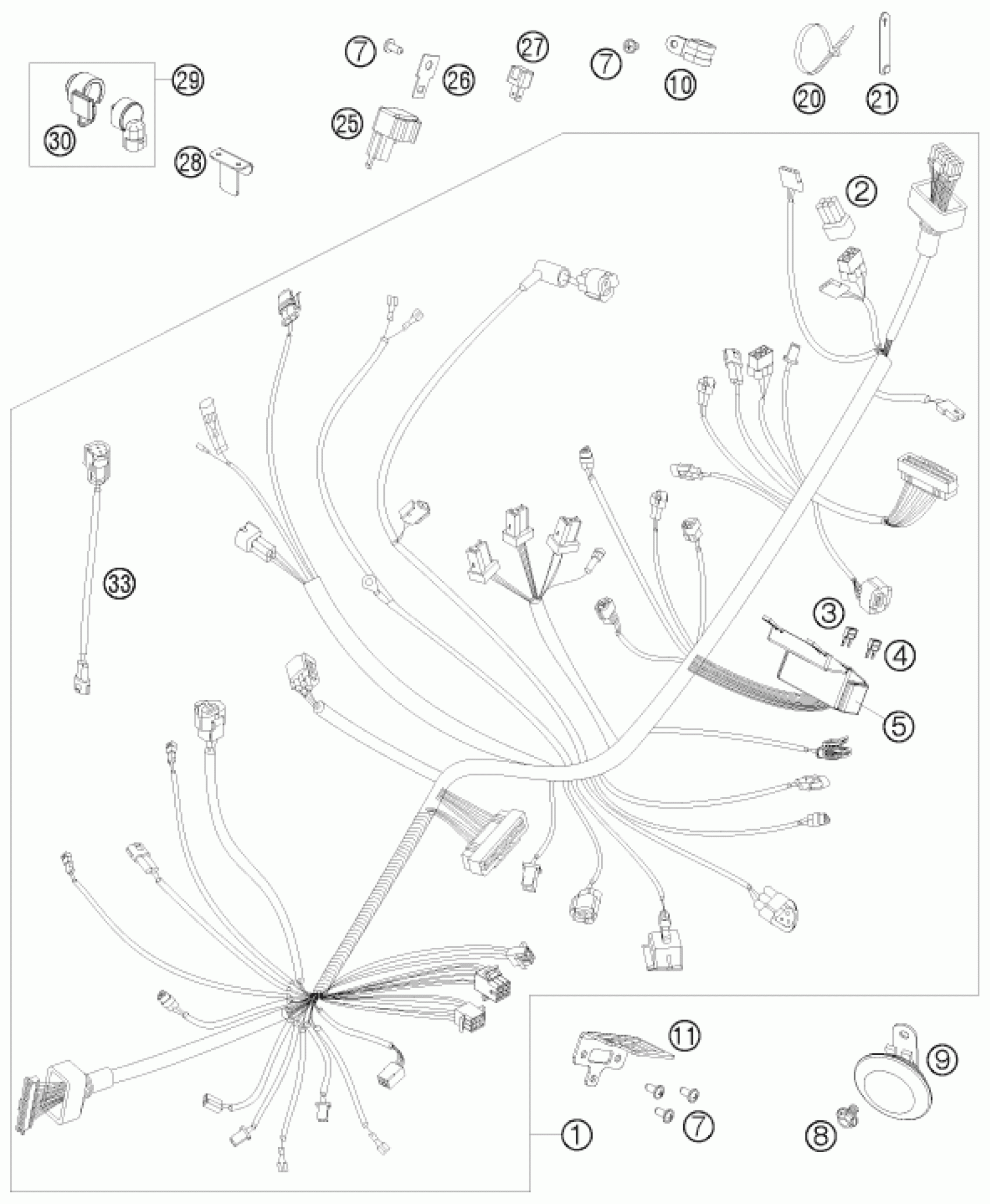

KTM 690 DUKE WHITE 2010 WIRING HARNESS Diagram

#

Description

Price

1

WIRING HARNESS

75611275000

Unavailable

2

SPARE CONNECTOR BH 6-PINS

000700000BH

Unavailable

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

Unavailable

7

EJOT PT screw K50x12

0081050121

Unavailable

8

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

9

DC HORN 05

62511060000

Unavailable

10

CLAMP RSGU 15/12

49007439000

Unavailable

11

BRACKETS FOR PLUGS 08

75611083000

Unavailable

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

20

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

21

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

21

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

25

FLASHER UNIT 97

44611207200

Unavailable

26

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

27

DIODE S3H-15 97

58411096100

Unavailable

28

BRACKET MAP-SELECT-SWITCH

75611046000

Unavailable

29

MAP-SELECT-SWITCH

76511010000

Unavailable

30

RUBBER HOLDER F. MAP-SEL-SWIT.

76511010050

Unavailable

33

AMBIENT-AIR TEMP. SENSOR CABLE

75011047000

Unavailable
