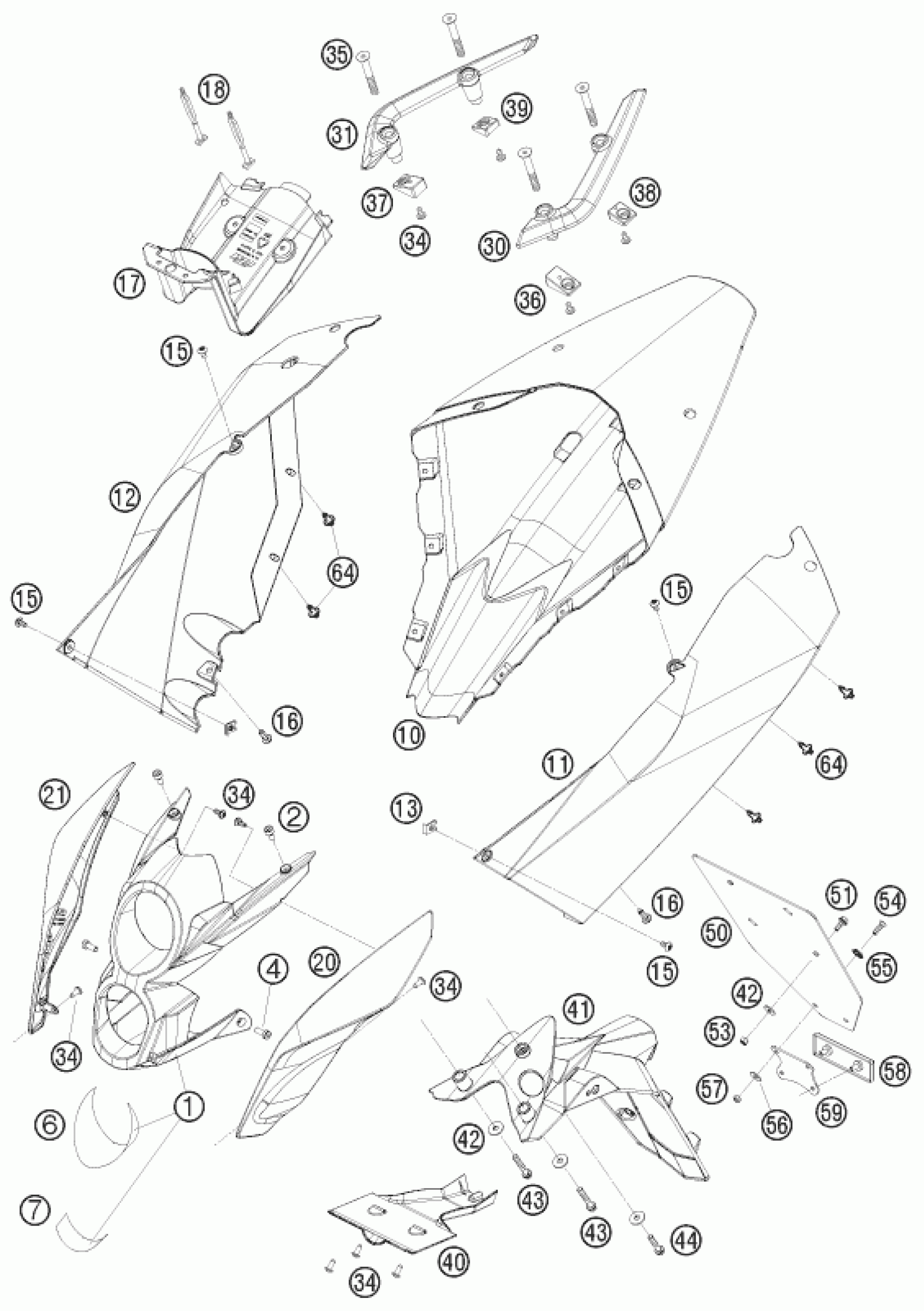

KTM 690 DUKE WHITE 2010 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK SILVER MET.

7560800100083A

$186.24

2

AH SCREW DIN0912-M 6X12

0912060123

$3.08

4

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

6

THERMAL PROT. FOIL F. LOW BEAM

75608001051

$6.62

7

THERMAL PROT. FOIL F.HIGH BEAM

75608001052

$6.54

10

REAR FENDER WHITE

7500801300020A

$332.57

11

SIDE COVER L/S+DECAL BLACK-MET

7500804100040B

$125.89

12

SIDE COVER R/S+DECAL BLACK-MET

7500804200040B

$161.19

13

RANGE CHANGE METAL NUT M5

54603048200

$5.23

15

Oval head screw M5x14 TX25

58605083014

$3.08

16

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

17

STORAGE COMPARTMENT

75003075000

Unavailable

18

RUBBER L=145MM

50303018000

$6.44

20

MASK SPOILER L/S WHITE 08

7560800300020A

$86.10

21

MASK SPOILER R/S WHITE 08

7560800400020A

$86.10

30

HAND GRIP L/S 07

75012008000

$7.28

31

HAND GRIP R/S 07

75012009000

$7.75

34

EJOT PT screw K50x12

0081050121

$2.05

35

FLAT HEAD SCREW ISO10642 M8X60

0991080603

$2.05

36

SPACER SUB FRAME FRONT L/S

75003065000

$2.05

37

SPACER SUB FRAME FRONT R/S

75003066000

$2.05

38

SPACER SUB FRAME REAR L/S

75003067000

$1.49

39

SPACER SUB FRAME REAR R/S

75003068000

$2.05

40

COVER NUMB. PLATE CARRIER 08

75608015010

$12.80

41

NUMBER PLATE CARRIER

75608015000

$16.76

42

Washer DIN9021-A 6.4

0021060003

$2.05

43

HH collar screw M6x30 TX30

0025060306

$3.08

44

HH collar screw M6x20 TX30

0025060206

$3.08

50

license plate mouning plate

60012081200

$8.41

51

HH collar screw M6x15 TX30

0024060156

$3.08

53

Self lock. nut DIN985-M6-A2

0985060003

$2.05

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

55

WASHER 6MM

40006006000

$1.49

56

WASHER DIN0125-A 5,3

0125050003

$1.49

57

Self locking nut DIN 985 M5

0985050003

$2.05

58

REFLECTOR RED

58412080000

$5.23

59

BRACKET FOR REFLECTOR

58412080050

$6.07

64

EXPANDING RIVET CPL.

76503075100

$3.08
