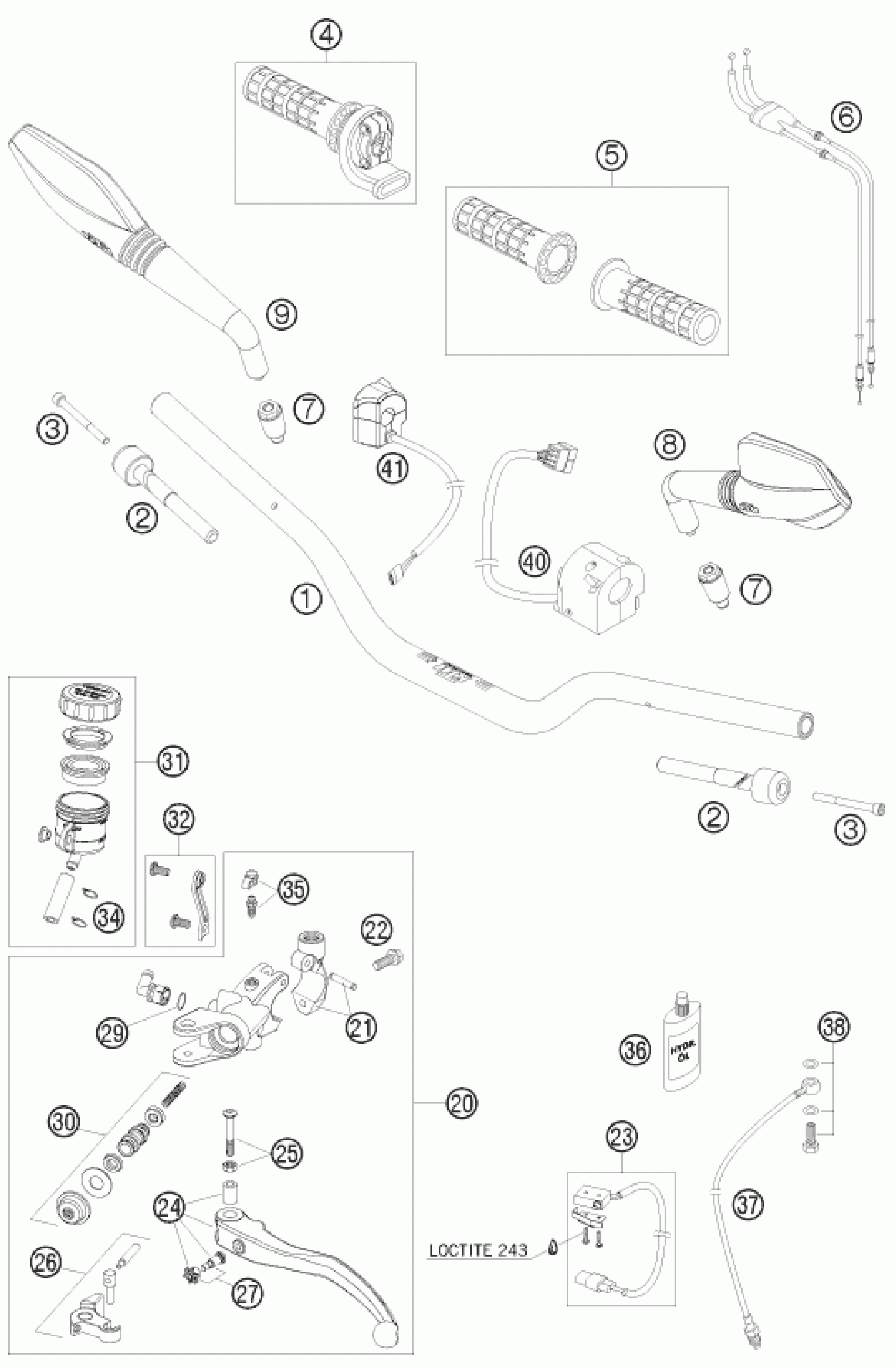

KTM 690 DUKE WHITE 2010 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR D=28MM 07

75002001000

Unavailable

3

SHCS DIN 912 M6x65

0912060653

Unavailable

5

GRIPP SET FULL WAFFLE

58302021100

Unavailable

6

THROTTLE CABLE 07

75002091000

Unavailable

2

handlebar weight

61002004000

Unavailable

4

THROTTLE GRIP CPL. 07

75002010000

Unavailable

7

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

8

REARVIEW MIRROR L/S

61112040100

Unavailable

9

REARVIEW MIRROR R/S

61112041100

Unavailable

20

MASTER CYLINDER CPL. 05

61002030000

Unavailable

21

CLAMP MIRROR WITH PIN

61002044000

Unavailable

22

HH collar screw M6x16 TX30

0025060166

Unavailable

23

CLUTCH SWITCH 05

61011049000

Unavailable

24

CLUTCH LEVER CPL. 05

61002031000

Unavailable

25

LEVER SCREW CPL. 05

61002038000

Unavailable

26

ROCKER CPL. 05

61002056000

Unavailable

27

ADJUSTING SCREW CPL.

61002043000

Unavailable

29

O-RING ANGLE PIECE

61002051000

Unavailable

30

REP.SET PISTON D=13 05

61002032000

Unavailable

31

RESERVOIR CPL. 05

61002055000

Unavailable

32

BRACKET AND SCREWS F. RESERV.

61002055050

Unavailable

34

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

35

BLEEDER SCREW WITH CAP

61002054000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

CLUTCH PIPE SM PRESTIGE 07

75632063000

Unavailable

38

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

40

LIGHT SWITCH 05

61011070000

Unavailable

41

START-STOP SWITCH AD 03

58411074200

Unavailable
