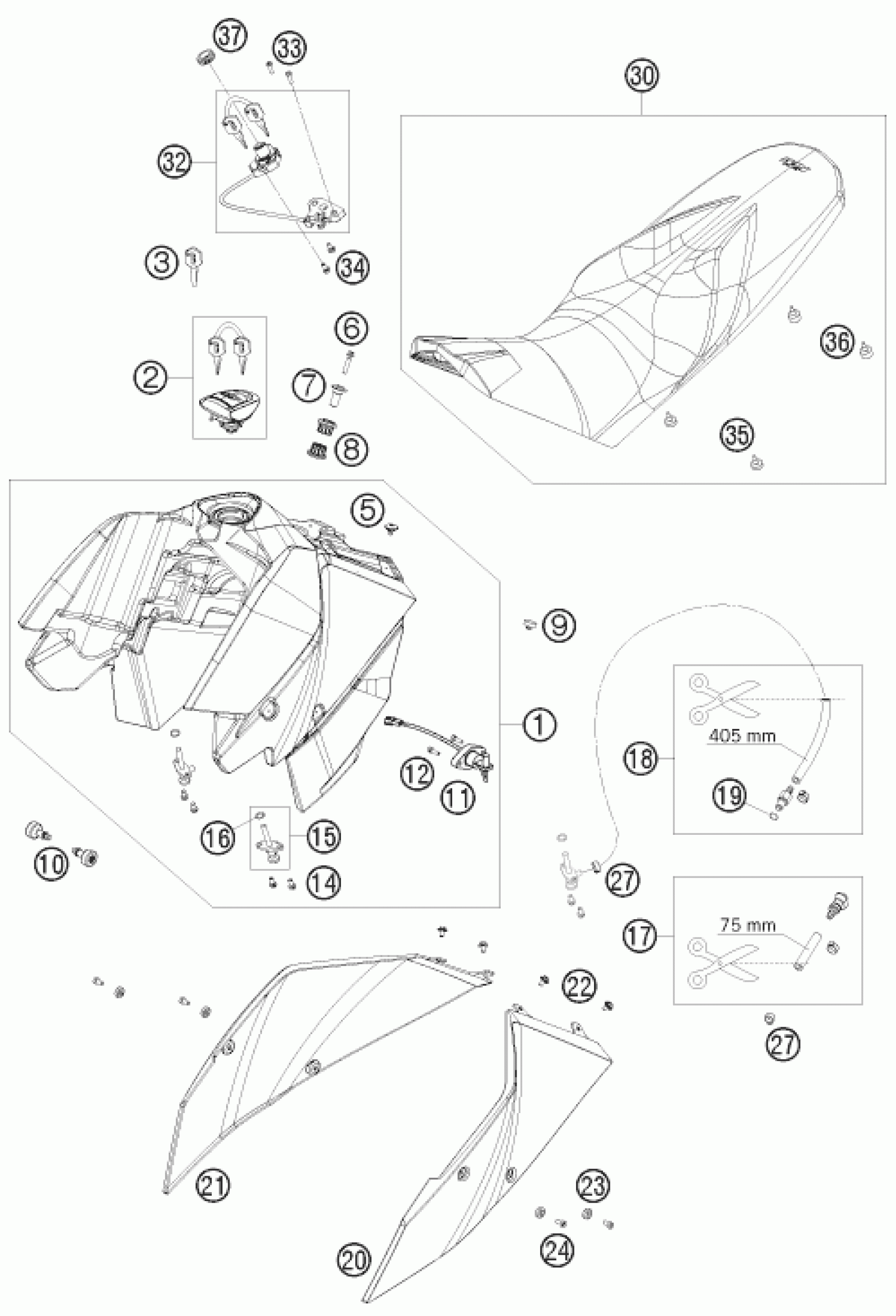

KTM 690 DUKE WHITE 2010 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK CPL. BLACK/WHITE 08

7500701304420A

Unavailable

2

TANK PLUG 06

58407008200

Unavailable

3

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

7

BEARING BUSHING OUTSIDE 03

60007060000

Unavailable

8

TANK RUBBER BUSHING 03

60007065000

Unavailable

17

FUEL HOSE WITH CLUTCH

75007116060

Unavailable

9

RUBBER BUFFER

54308042000

Unavailable

10

SPECIAL SCREW M8 06

62507026100

Unavailable

11

GAS-LEVEL SENSOR ADV. 2006

58207080100

Unavailable

5

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

16

O-RING 1,78x10,82x14,38 2-013

0770020130

Unavailable

6

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

15

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

19

O-ring VITON f. plug CPC 0

58507012000

Unavailable

20

SPOILER L/S BLACK-MET.+DECAL08

7500805000040B

Unavailable

21

SPOILER R/S BLACK-MET.+DECAL08

7500805100040B

Unavailable

22

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

23

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

24

AH SCREW DIN6912 M6X12

0012060123

Unavailable

27

VARIABLE ONE-EAR CLAMP 14,2 MM

00050142706

Unavailable

30

SEAT 08

75607040000

Unavailable

32

SEAT LOCK 05

62507050000

Unavailable

33

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

Unavailable

34

HH collar screw M5x12 TX30

0025050126

Unavailable

35

SEAT RUBBER 6 MM

75007046020

Unavailable

36

SEAT RUBBER 10 MM

75007046010

Unavailable

37

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

Unavailable

12

AH collar screw DIN 912 M5x16

0912050163

Unavailable

14

HH collar screw M6x12 TX30

0025060126

Unavailable

18

FUEL HOSE WITH CLUTCH

75007016050

Unavailable
