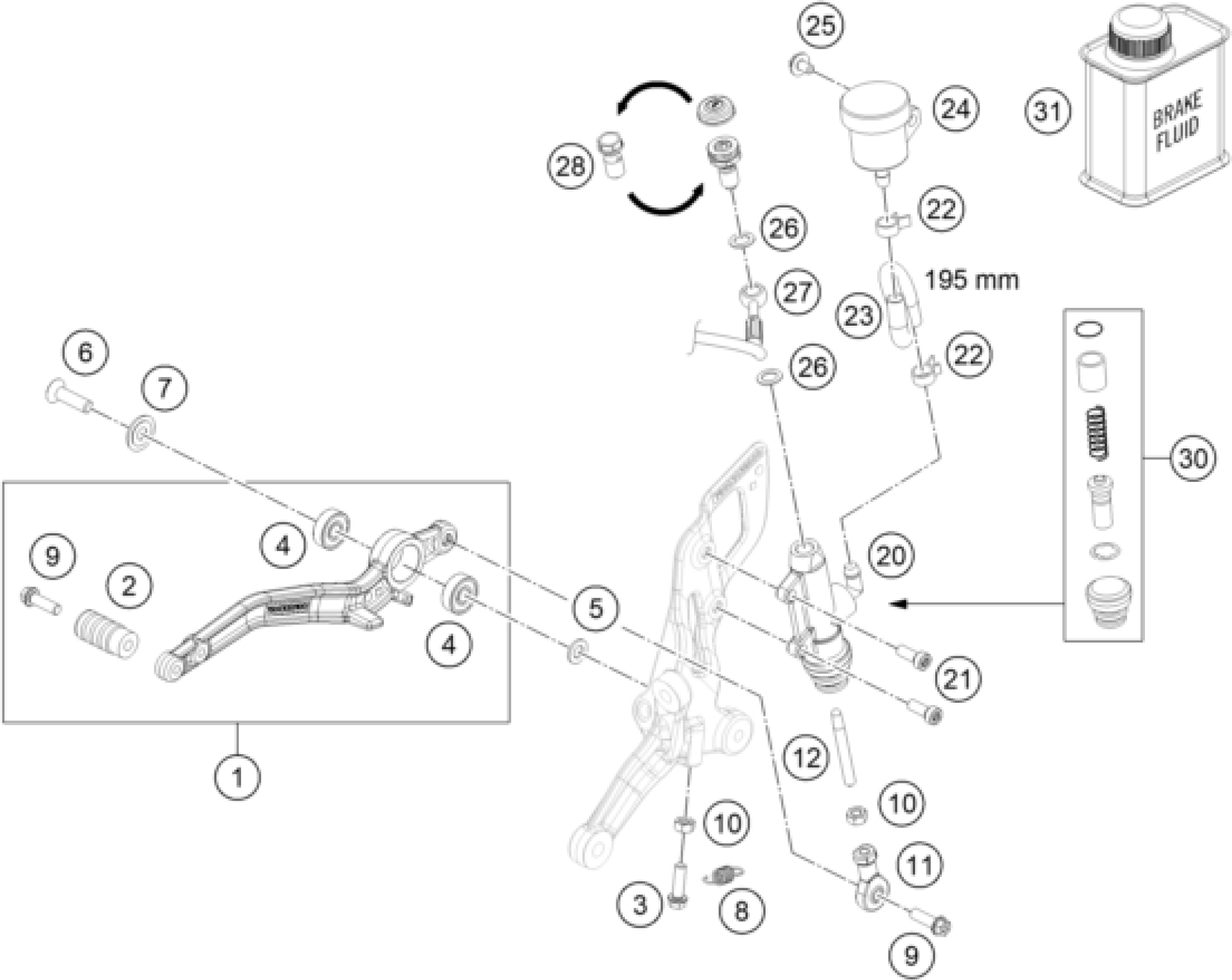

KTM 690 DUKE R ABS 2016 REAR BRAKE CONTROL Diagram

#

Description

Price

1

FOOT BRAKE LEVER CPL.

7601305014433S

Unavailable

2

Brake lover pedal Duke 94

58303060051

Unavailable

3

HH collar screw M6x20 TX30

0025060206

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

washer DIN 125 A -8.4

0125080003

Unavailable

6

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

7

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

8

SPRING FOOT BRAKE LEVER 05

61013052000

Unavailable

9

HH collar screw M6x20 TX30

0025060206S

Unavailable

10

Hex. nut DIN 934 M6

0934060003

Unavailable

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

12

PRESSURE ROD ALU 250 '90

54603068000

Unavailable

20

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

21

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

22

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

23

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

24

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

25

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

26

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

27

BRAKE PIPE

76042003000

Unavailable

28

banjo bolt M10x1x19.5

62113020100

Unavailable

30

REPAIR KIT PISTON 13MM

54513150000

Unavailable

31

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
