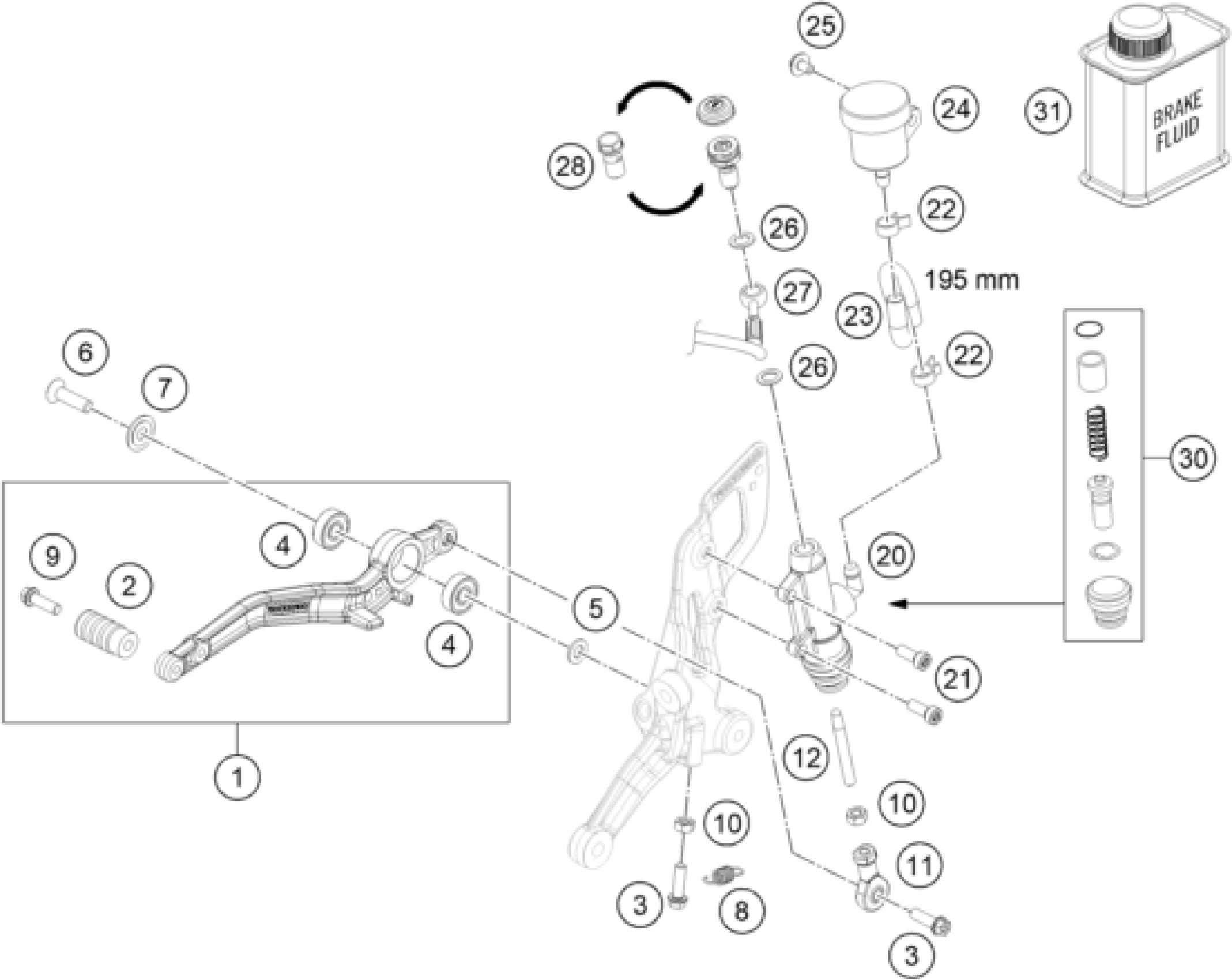

KTM 690 DUKE R ABS 2014 REAR BRAKE CONTROL Diagram

#

Description

Price

1

FOOT BRAKE LEVER CPL.

7601305014433S

Unavailable

2

Brake lover pedal Duke 94

58303060051

$15.04

3

HH collar screw M6x20 TX30

0025060206

$3.08

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

washer DIN 125 A -8.4

0125080003

$1.49

6

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49

7

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

$6.07

8

SPRING FOOT BRAKE LEVER 05

61013052000

$3.08

10

Hex. nut DIN 934 M6

0934060003

$1.49

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

12

PRESSURE ROD ALU 250 '90

54603068000

$6.35

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

21

Cap head bold ISO 14580 M6x16

014580060166

$2.05

22

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

23

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

24

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

25

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

26

sealing ring DIN 7603 10x14x1

0603100141

$2.05

27

BRAKE PIPE

76042003000

$43.66

28

banjo bolt M10x1x19.5

62113020100

$8.78

30

REPAIR KIT PISTON 13MM

54513150000

$46.46

31

Brake fluid DOT5.1 0,25L

00062030000

$12.52

9

HH collar screw M6x20 TX30

0025060206S

$2.05
