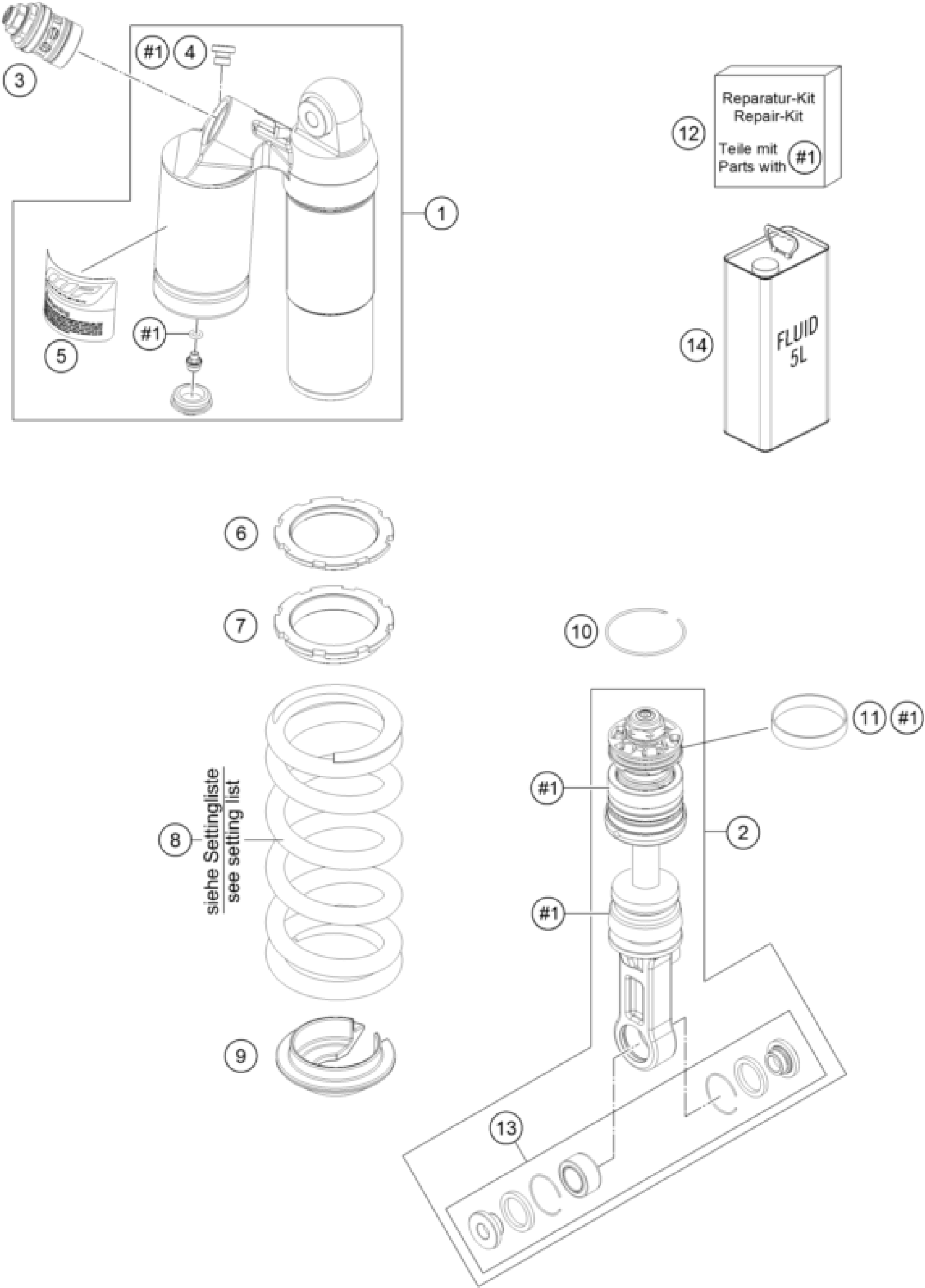

KTM 690 DUKE R ABS 2013 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

1

Shock absorber upper part

46180807S2

Unavailable

2

Shock absorber lower part

46180654S18

Unavailable

3

DCC-COMPR. DAMP. CONTROL CPL.

50180213S18

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Sticker WP warning 47x63

52000087

$10.00

6

Lock nut shock M54x1,5

46180766

$26.83

7

Adjustment nut shock M54x1,5

46180855

$45.99

8

SPRING 185MM 70N/MM (61)

91110015S

Unavailable

9

Spring retainer 28x73x15

46180396

$61.42

8

SPRING 185MM 75N/MM (61)

91110016S

Unavailable

10

Round-wire snap ring 49x1,5

46810010

$3.08

11

Piston ring 44x46x8

46812011

$4.01

12

REPAIR-KIT GASKET 05

R15002

$80.03

13

REPAIR KIT BEARINGS 07

R15006

$100.65

14

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59
