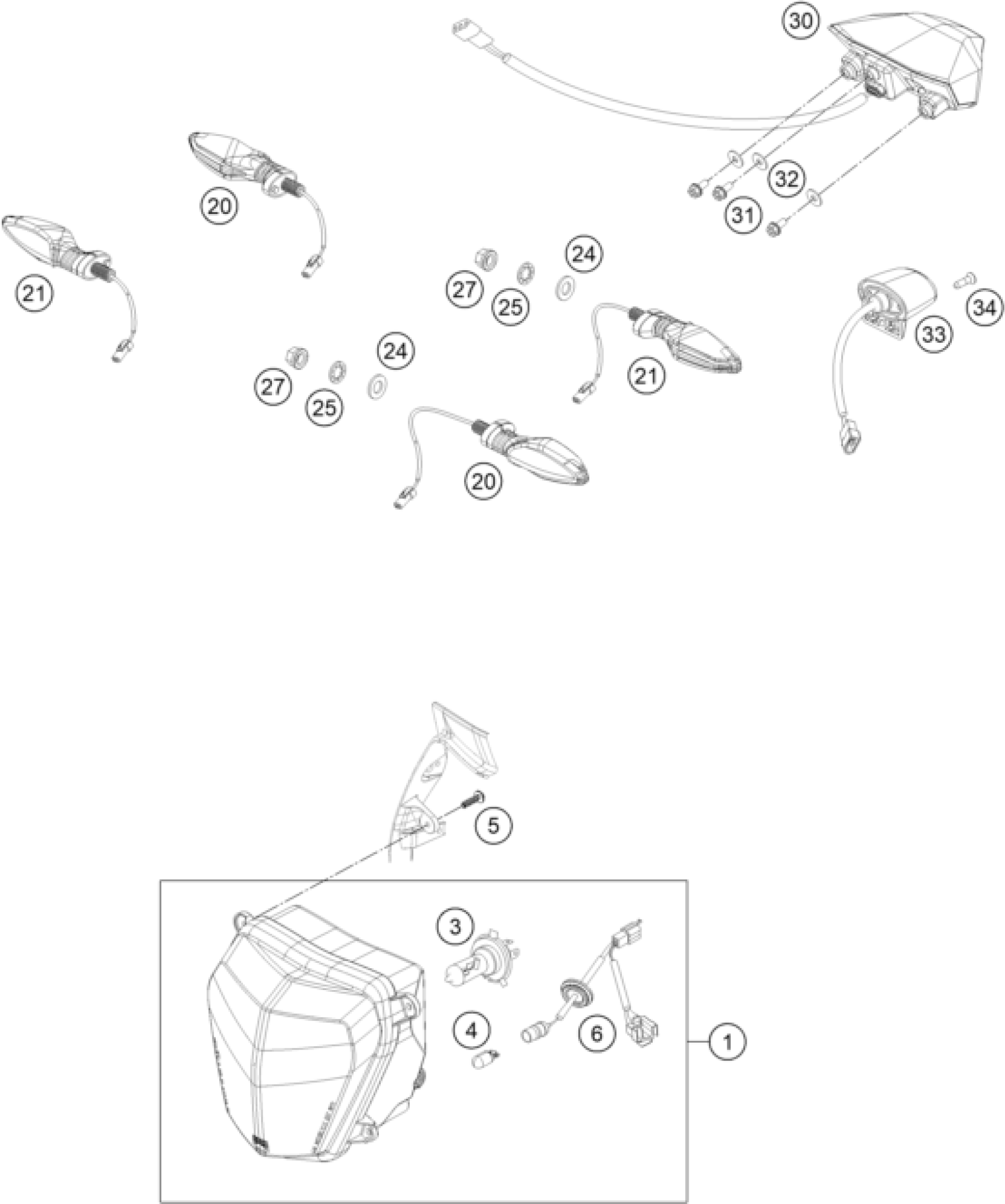

KTM 690 DUKE R ABS 2013 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT CPL.

76014001044

Unavailable

3

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

HARNESS HEAD LIGHT

76011079000

Unavailable

20

FLASHER CPL. FR.LS/REAR R/S

76014025000

Unavailable

21

FLASHER CPL. FR.RS/REAR L/S

76014026000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT

76014040000

Unavailable

31

HH collar screw M5x12 TX30

0025050126

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable

33

LICENSE PLATE ILLUMINATION LED

76014047000

Unavailable

34

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable
