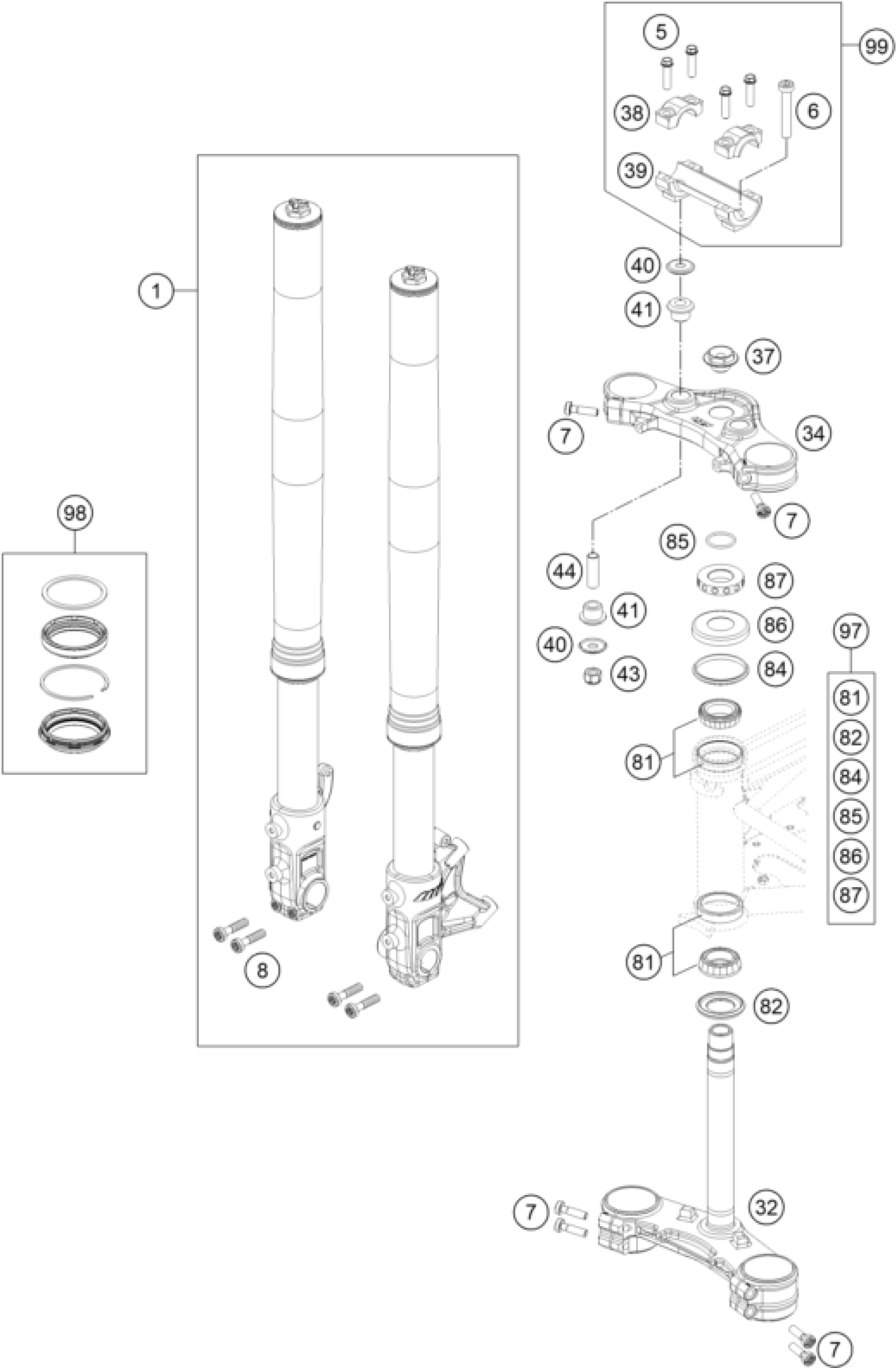

KTM 690 DUKE R ABS 2013 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK WP 690 DUKE-R

05188M1101

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

AH SCREW DIN6912-M10X60

0012100603

Unavailable

7

AH collar screw M8x30 ISA45

0035080306

Unavailable

8

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

32

LOWER TRIPLE CLAMP CPL.

7600193203204

Unavailable

34

TOP TRIPLE CLAMP

7600193403204

Unavailable

37

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP 28MM 07

5900103830001S

Unavailable

39

HANDLEBAR SUPPORT 28MM 07

5900103920001S

Unavailable

40

washer 10.5x32x2

56401042000

Unavailable

41

rubber bushing

56401040000

Unavailable

43

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

44

spacer tube 10.2x12x38

61001041000

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

O-RING 27,5X2,5 NBR

0770275025

Unavailable

86

STEERING HEAD COVER

78101086000

Unavailable

87

STEER.HEAD NUT 660SM 02

57301036000

Unavailable

98

REPAIR KIT FORK

R515

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

97

STEARING HEAD REP. KIT

76001080044

Unavailable
