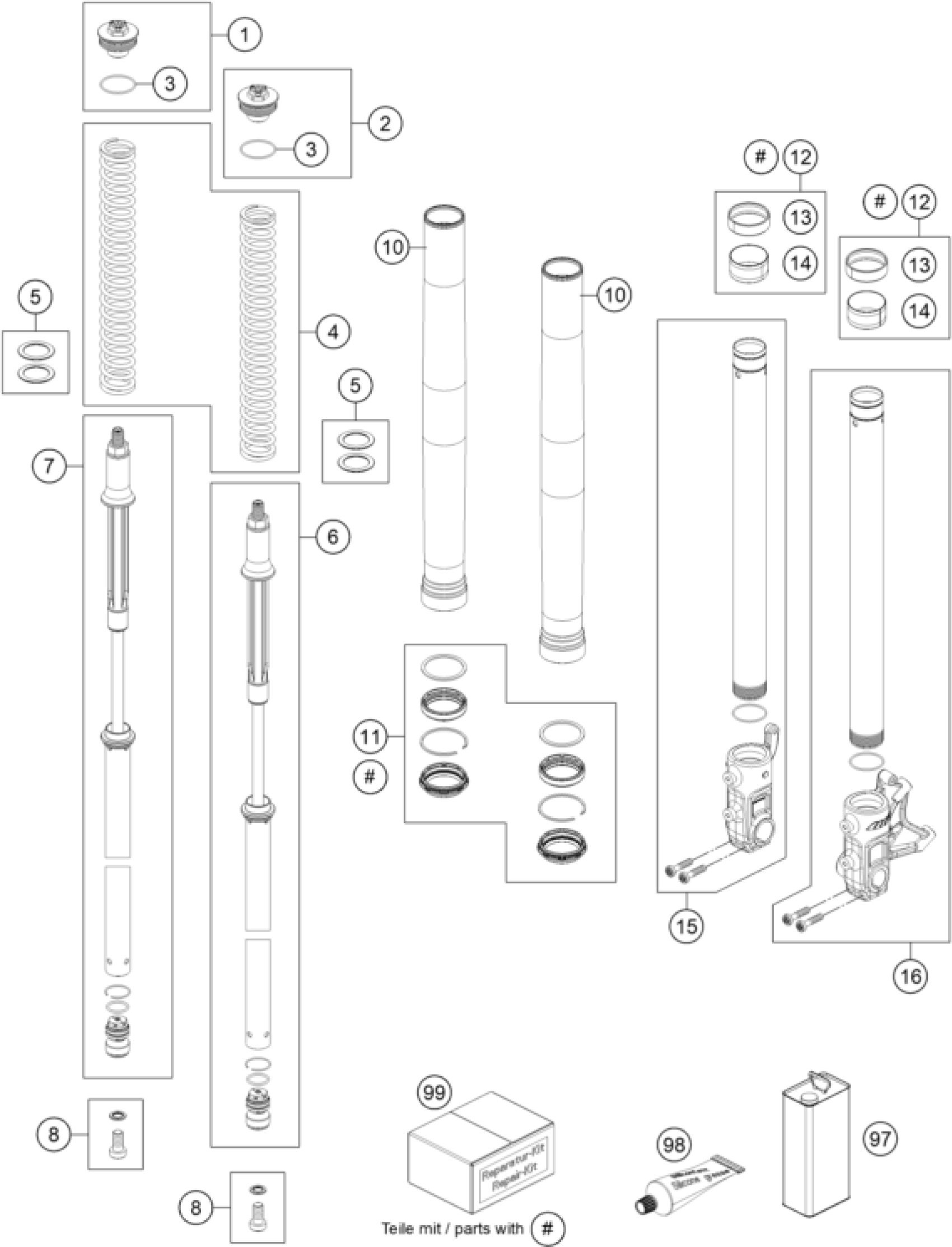

KTM 690 DUKE R ABS 2013 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

8

AH SCREW M10X20 SET

00501020S1

$11.49

12

GUIDING BUSH SET

R14029

Unavailable

14

Guide bushing 42x44x20

43570617

$11.40

16

AXLE CLAMP WITH INNER TUBE L/S

43570689S1

Unavailable

99

REPAIR KIT F. 690 DUKE R

R14027

Unavailable

1

Screw cap M46x1.5 red cmpl.

43570709S1

Unavailable

2

Screw cap M16x1.5 white cmpl.

43570709S2

Unavailable

3

O-ring 41x2 NBR70 siliconized

43570023

$13.55

4

SPRING SET 6,5N/MM

95010062S

Unavailable

6

Cartridge cmpl. l/s

57430008S

Unavailable

5

SPRING SPACER KIT

R514

$31.45

7

Cartridge cmpl. r/s

57430006S3

Unavailable

10

Fork outer tube 44.14x560 dt51

43570721

Unavailable

11

REPAIR KIT FORK

R515

Unavailable

13

Guide bushing 43x47x12

43570618

$11.68

15

AXLE CLAMP WITH INNER TUBE R/S

43570688S1

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

SILICONE GREASE F. DUST STRI

T511

$34.59
