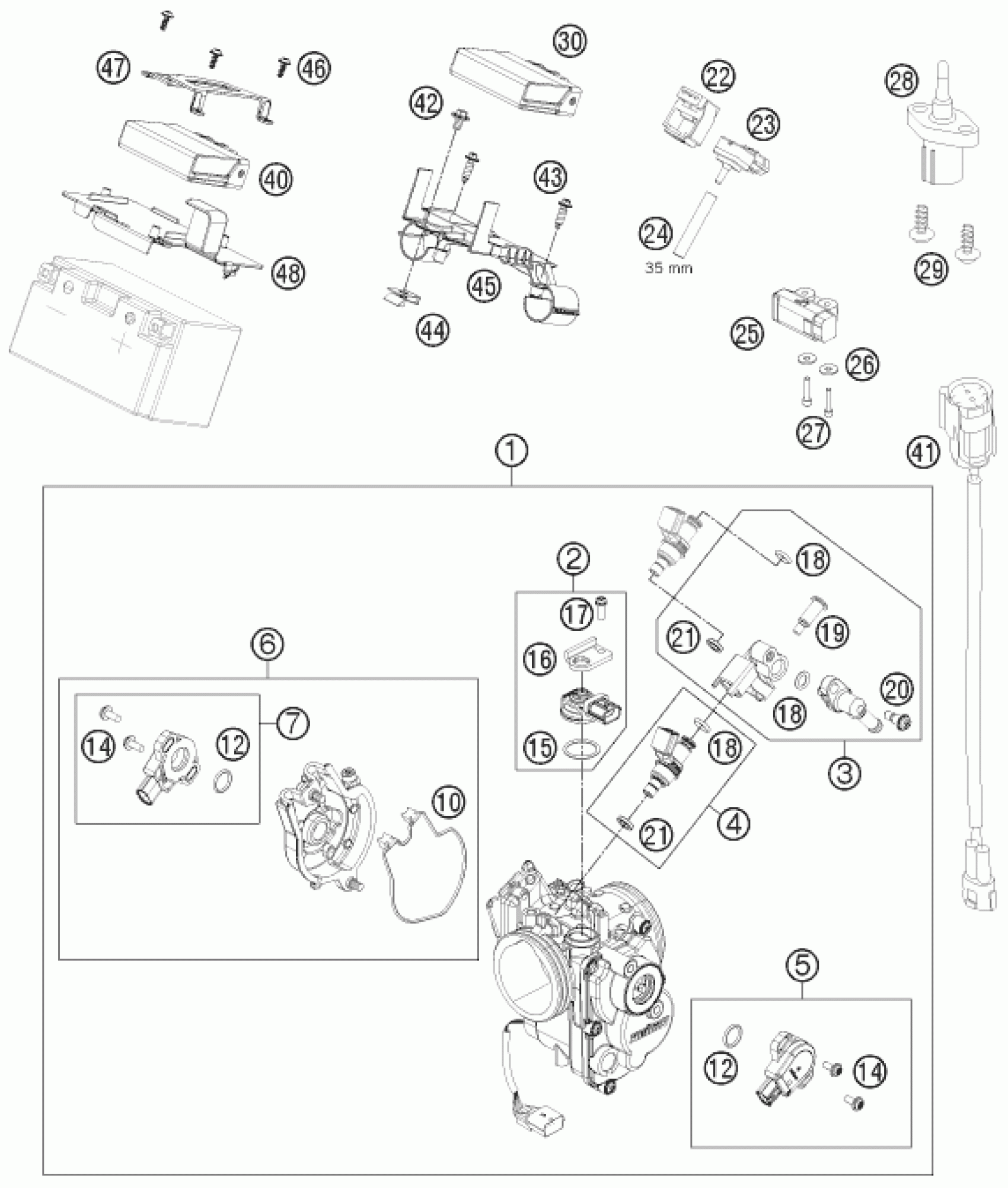

KTM 690 DUKE R 2010 THROTTLE BODY Diagram

#

Description

Price

2

MAP SENSOR CPL. 07

75041085044

$179.98

43

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

3

FUEL RAIL ASSY SET 07

75041013044

$104.80

1

THROTTLE BODY

75041101000

$1,006.71

4

FUEL INJECTOR ASSY SET 07

75041023044

$160.90

5

TPS CPL. 2010

75041077144

$107.89

6

APS UNIT CPL. 2010

75041101044

$382.69

10

PACKING

75041001060

$18.97

12

O-RING

75041077110

$8.13

14

SCREW TORX WITH WASHER

75041077130

$2.48

15

O-RING

75041085010

$6.07

16

PLATE, STAY

75041085020

$5.23

17

SCREW WASHER

75041085030

$3.08

18

O-RING 7,2x2,2

75041023020

$9.06

19

SCREW SHOULDER

75041013060

$6.72

20

SCREW SHOULDER

75041013010

$6.63

21

SEAL RING

75041023010

$11.49

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

23

PRESSURE SENSOR 06

61041085100

$144.36

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

25

ROLLOVER SENSOR 05

61041088000

$67.69

26

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.49

27

AH SCREW DIN0912-M 4X25

0912040253

$1.49

28

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

29

EJOT PT screw K50x12

0081050121

$2.05

30

TIMING CHARGER EPT 07

75041032000

$426.35

40

ELECTRONIC CONTROL UNIT

75041031000

$538.08

41

AMBIENT-AIR TEMP. SENSOR CABLE

75011047000

$18.91

7

APS SENSOR CPL. 2010

75041177144

$116.40

44

clip nut M6

54603048100

$4.11

45

BRACKET TIMING CHARGER EFI 07

75041029000

$3.48

42

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

46

EJOT PT screw K50x12

0081050121

$2.05

47

ECU MOUNTING BRACKET

75011054130

Unavailable

48

BATTERY SUPPORT - TOP PART

75011054120

$3.48
