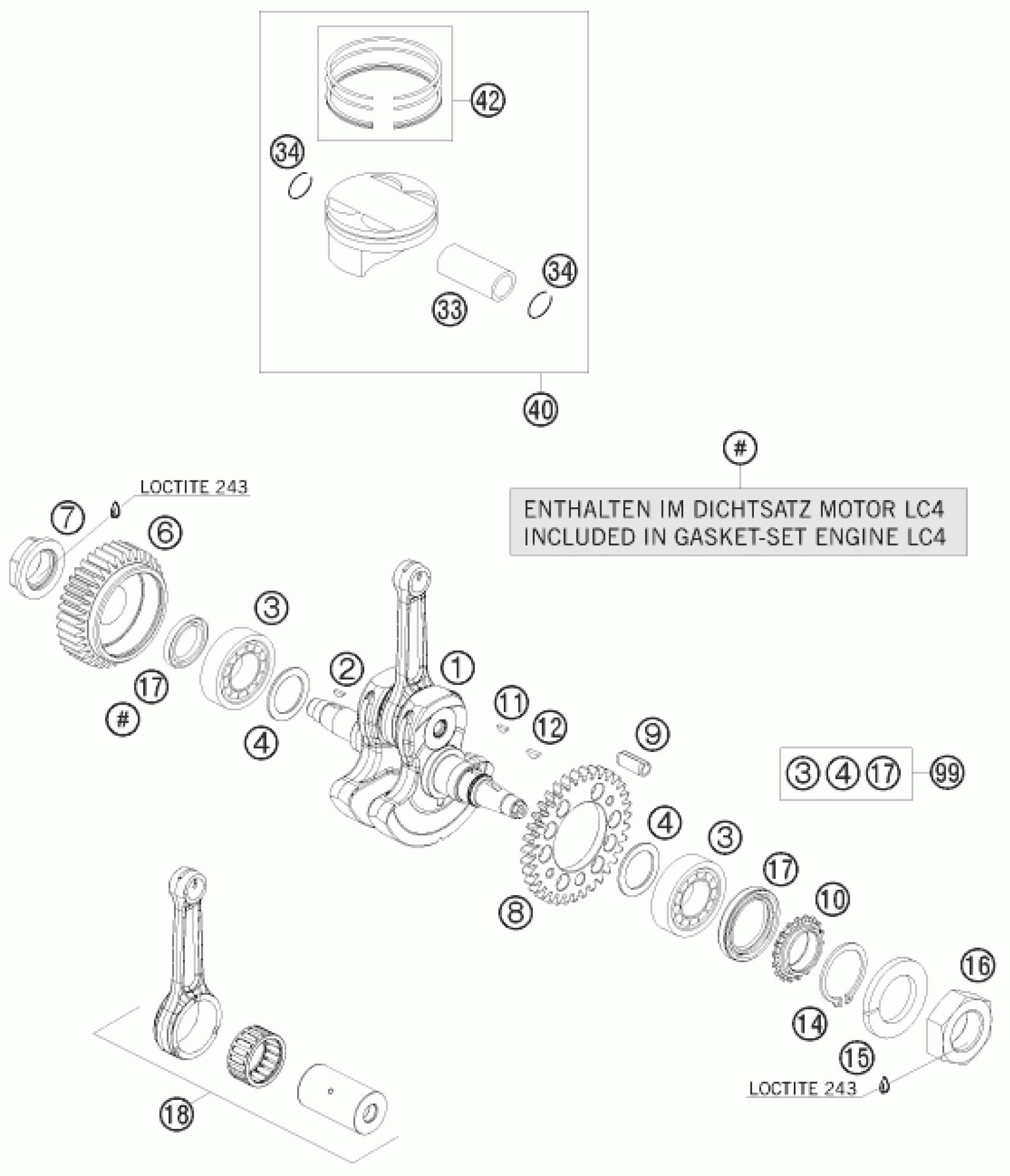

KTM 690 DUKE R 2010 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL.

75330018000

$1,096.56

2

woodruff key DIN 6888 4x5x13

0888040050

$4.11

15

LOCK WASHER VSK 18

58132072000

$2.05

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

17

SHAFT SEAL R.35X50X7B VITON

0760355070

$10.65

18

CONNECTING ROD REPAIR KIT

75330015044

$1,096.56

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

$83.30

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

PRIMARY GEAR 36 T 07

75032000002

$165.49

7

NUT FOR PRIMARY GEAR

75030029100

$10.46

8

DRIVE WHEEL BALANCER SHAFT 07

75030055000

$89.84

9

TENSION PIN ISO13337 8X30

0749080300

$2.05

10

TIMING PULLEY 07

75036014000

$31.22

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

12

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

33

PISTON PIN D=20 08

61230033000

$47.58

34

CIRCLIP

77630074000

$10.56

40

PISTON I CPL. D=102

75330007000 I

Unavailable

40

PISTON II CPL. D=102

75330007000 II

Unavailable

42

PISTONRING KIT DUKE R

75330031044

Unavailable

99

CRANKSHAFT REP. KIT 690

00050002305

Unavailable
