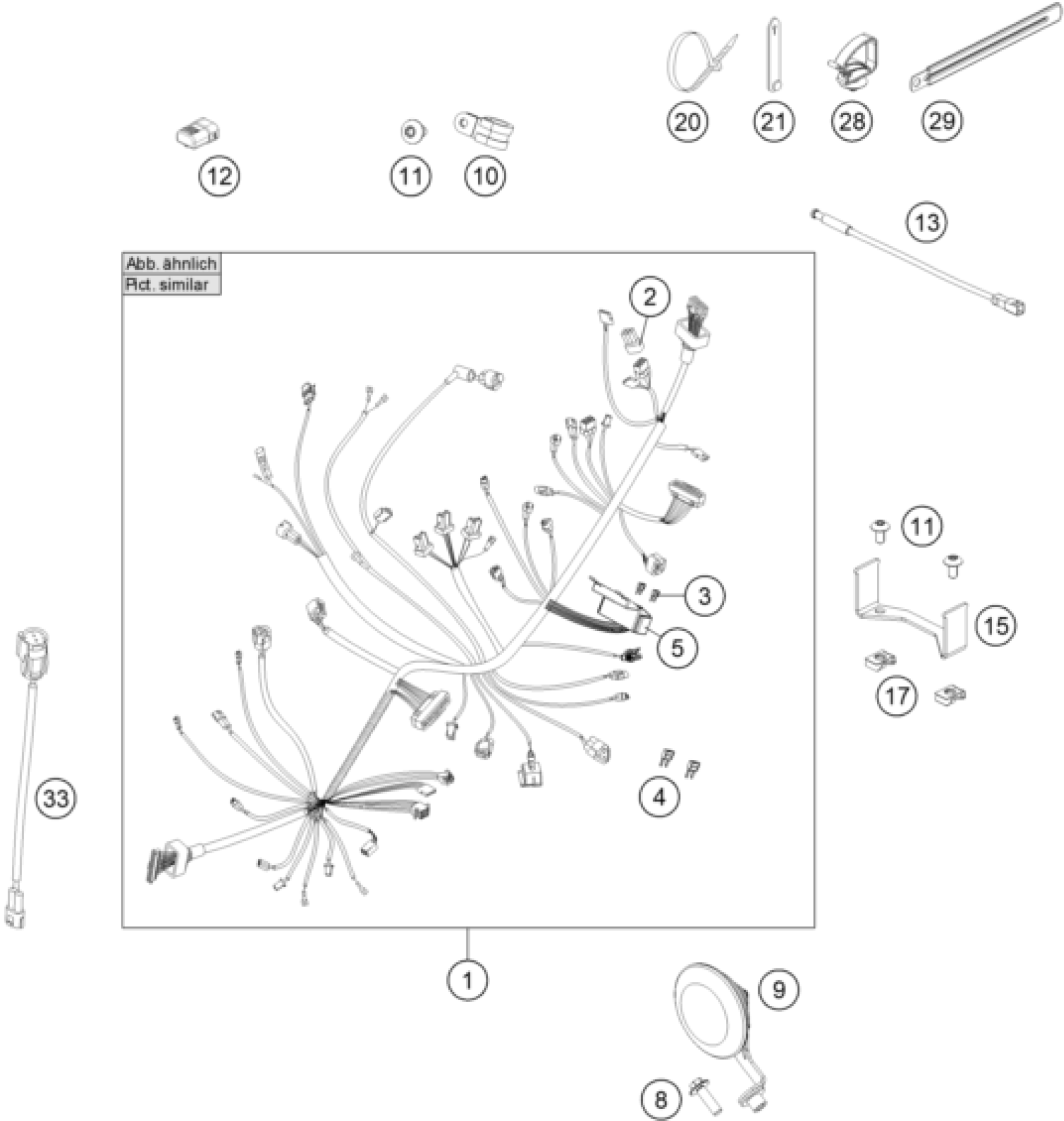

KTM 690 DUKE ORANGE ABS 2016 WIRING HARNESS Diagram

#

Description

Price

28

CABLE SUPPORT

76011094000

Unavailable

1

MAIN HARNESS

76011075200

Unavailable

3

FUSE 10A 07

75011088010

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

Unavailable

2

SPARE CONNECTOR BH 6-PINS

000700000BH

Unavailable

4

FUSE 25 A

58011109125

Unavailable

8

HH collar screw M6x20 TX30

0024060206

Unavailable

9

DC HORN 12V

76011060100

Unavailable

10

CLAMP RSGU 15/12

49007439000

Unavailable

11

SCREW TORX M5X10

78105081010

Unavailable

15

BRACKET F. FUSE BOX

76011057000

Unavailable

17

clip nut M5

69008021080

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

21

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

33

AMBIENT-AIR TEMP. SENSOR CABLE

76011048000

Unavailable

3

FUSE 15A 07

75011088015

Unavailable

4

FUSE 15 A

58011109115

Unavailable

13

Temperatur sensor

61111018100

Unavailable

12

CAP FOR CONNECTOR 000700000HJ

000700000HJ01

Unavailable

29

CABLE SUPPORT

76011093000

Unavailable
