TIMING DRIVE

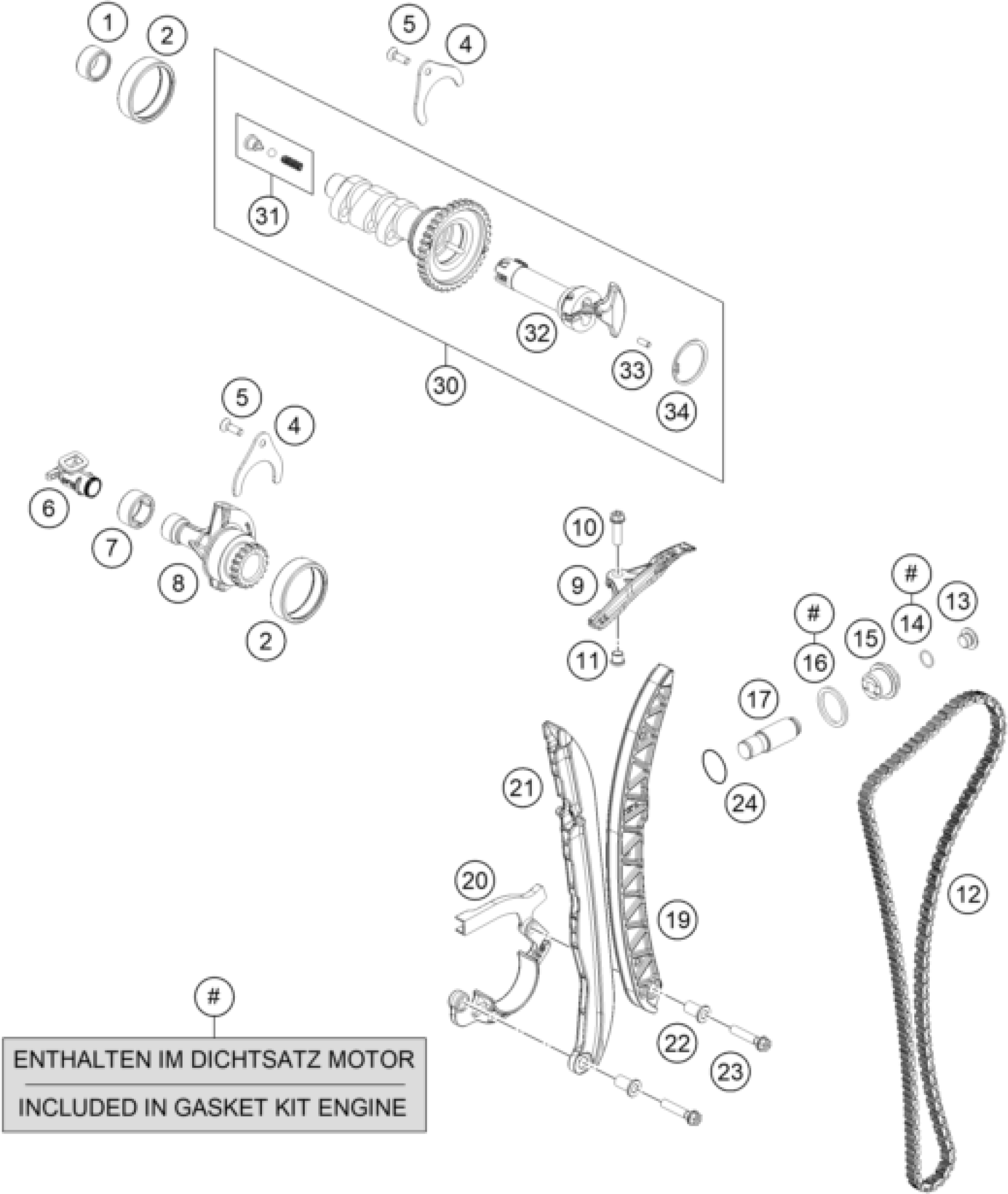

KTM 690 DUKE ORANGE ABS 2016 TIMING DRIVE Diagram
#
Description
Price
12
TIMING CHAIN
76636013000
$51.70
30
CAMSHAFT
76636010144
$540.70
31
DECO SPRING CPL.
76636016044
$25.05
32
INSERT CAMSHAFT CPL.
76636019144
$173.34
33
Needle roll.DIN5402 NRB 4X9.8
0402040980
$3.08
34
Seeger ring J32 DIN472 32X1,2
0472320120
$1.49
1
NEEDLE BEAR.HK1812 18/24/12 05
0618182412
$8.13
2
NEEDLE SLEEVE HK4012B40X47X12
0618404712
$11.02
4
LOCKING PLATE
76636010050
$15.14
5
INT. TORX FLAT HEAD M5X16 8.8
0019050163S
$2.05
6
BREATHER SYSTEM CONNECTOR
76636081000
$6.63
7
NEEDLE BUSH HK 2012
50203097000
$15.51
8
BALANCER SHAFT CYLINDER HEAD
76630058000
$74.14
13
PLUG
76636080000
$13.64
14
o-ring 10.00x1.00 NBR70
0770010010
$2.05
15
SCREW PLUG CHAIN ADJ. 07
75036008000
$14.67
16
CU SEAL-RING 20X27X1
0603202702
$4.11
17
CHAIN ADJUSTER HYD. 05
77036003000
$73.86
19
TENSIONER RAIL
76636002000
$22.81
20
CHAIN GUIDE
76636018000
$8.41
21
GUIDING RAIL
76636001000
$11.30
22
SUPPORTING SLEEVE 07
75036018050
$5.23
23
HH collar screw M6x30 TX30
0025060306S
$3.08
9
CHAIN GUIDE
76636005000
$6.91
10
HH collar screw M6x20 TX30
0025060206
$3.08
11
SUPPORTING SLEEVE 03
60040027050
$6.35
24
o-ring 18.00x2.00 NBR70
0770180020
$2.05
