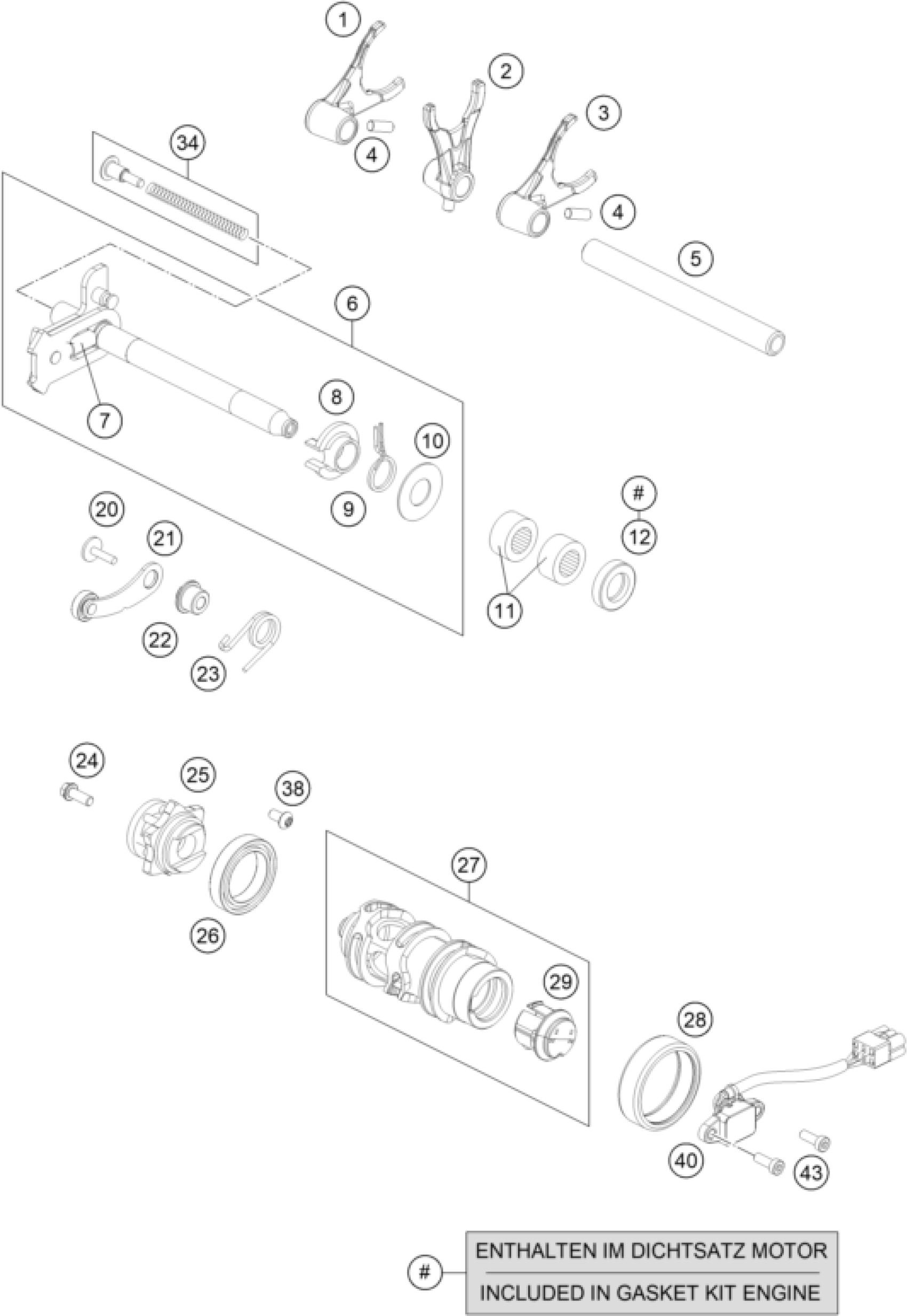

KTM 690 DUKE ORANGE ABS 2016 SHIFTING MECHANISM Diagram

#

Description

Price

24

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

25

SHIFT DRUM LOCATING CPL. 07

75034015000

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

SHIFTING DRUM CPL.

76634012044

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

34

SPRING F. SHIFTING SHAFT CPL.

75034007044

Unavailable

38

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

40

GEAR POSITION SENSOR

60411023000

Unavailable

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

Unavailable

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

Unavailable

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFTRAIL 07

75034019000

Unavailable

6

SHIFT SHAFT ASSY

75034005133

Unavailable

7

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

RETURN SPRING 2,2MM '95

54634014100

Unavailable

10

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

43

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

29

Magnet bracket cmpl.

79234012020

Unavailable

20

HH collar screw M6x20 TX30

0024060206

Unavailable

21

LOCKING LEVER CPL. 07

75034024044

Unavailable

22

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

radial shaft seal 14x24x6 B

0760142460

Unavailable
