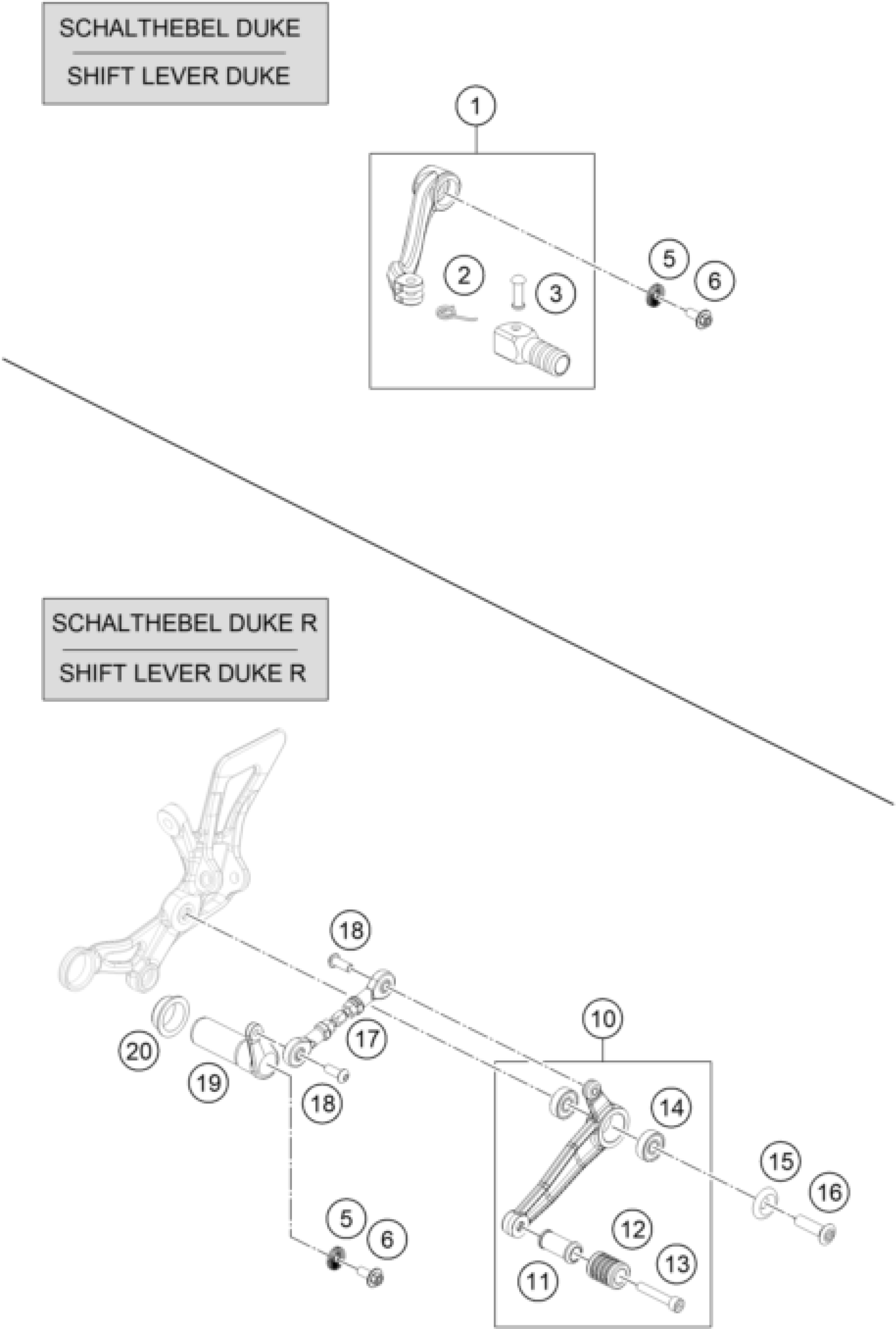

KTM 690 DUKE ORANGE ABS 2016 SHIFT LEVER Diagram

#

Description

Price

19

LEVER ARM

7600317000033

Unavailable

12

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

13

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

15

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

16

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

1

SHIFT LEVER CPL. 07

75034031000

Unavailable

2

SHIFTING LEVER SPRING

75034032000

Unavailable

3

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

5

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

6

HH collar screw M6x15 TX30

0024060156S

Unavailable

10

SHIFTING LEVER CPL.

7603403104433S

Unavailable

11

GEAR LEVER

69034032100

Unavailable

14

Grooved ball bearing 608 2RS C

0625006087

Unavailable

17

SHIFT LEVER

76034036000

Unavailable

18

FLAT HEAD SCREW ISO7380 M6X16

0738060161

Unavailable

20

SLIDE BEAR. IGUS JFM-222532-08

76034038000

Unavailable
