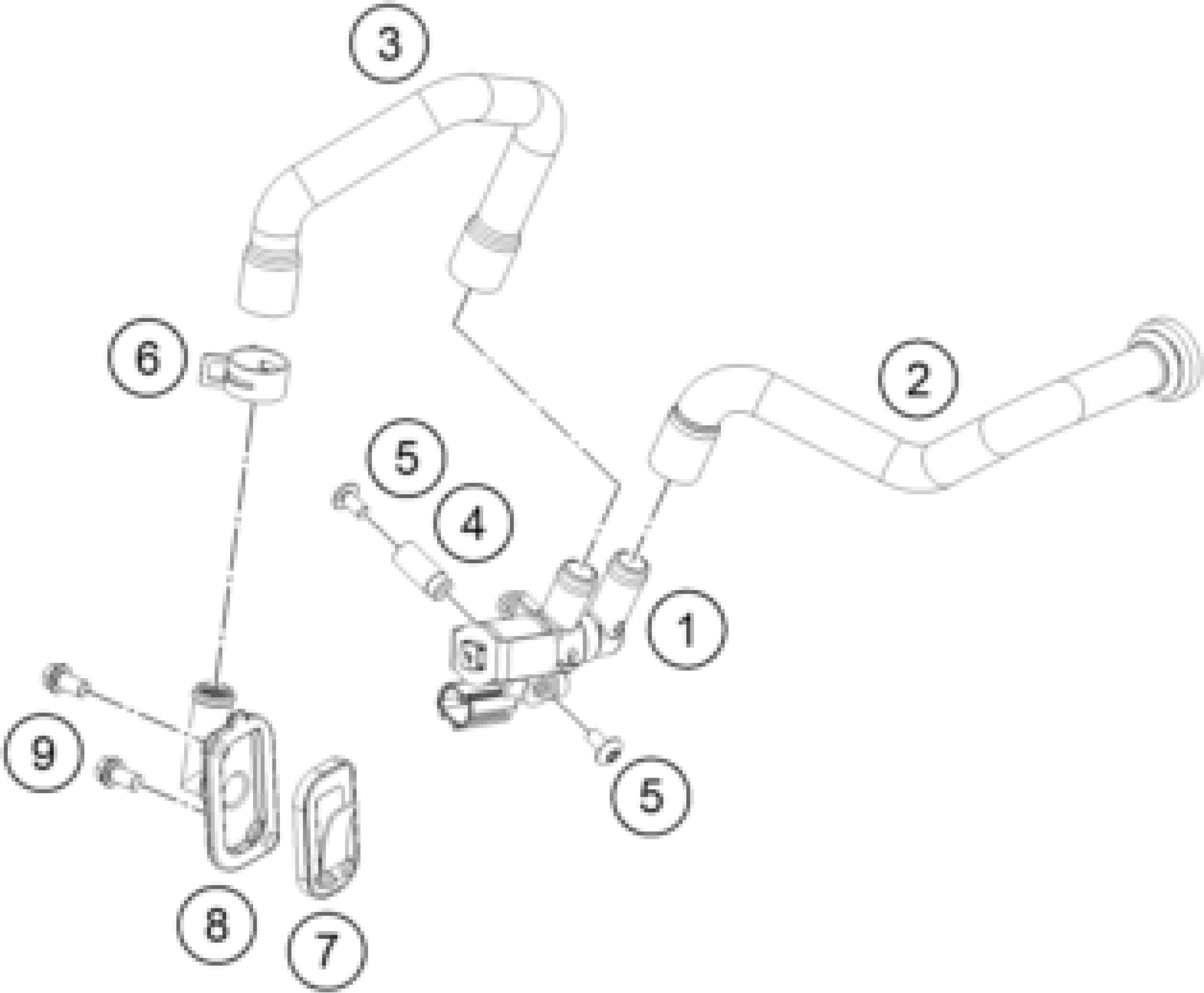

KTM 690 DUKE ORANGE ABS 2016 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

3

SLS HOSE

76005027000

$22.52

4

SLS HOLDING BUSH

76005031000

$5.70

5

SCREW TORX M5X10

78105081010

$2.05

6

CLAMP STD DN20

00049200121

$1.49

7

SAS Reed Valve

60005026000

$21.50

8

SAS flange

61205022000

$17.48

9

HH collar screw M6x12 TX30

0025060126

$3.08

1

SLS-VALVE 07

75005026000

$74.51

2

SLS HOSE

76005026000

$34.12
