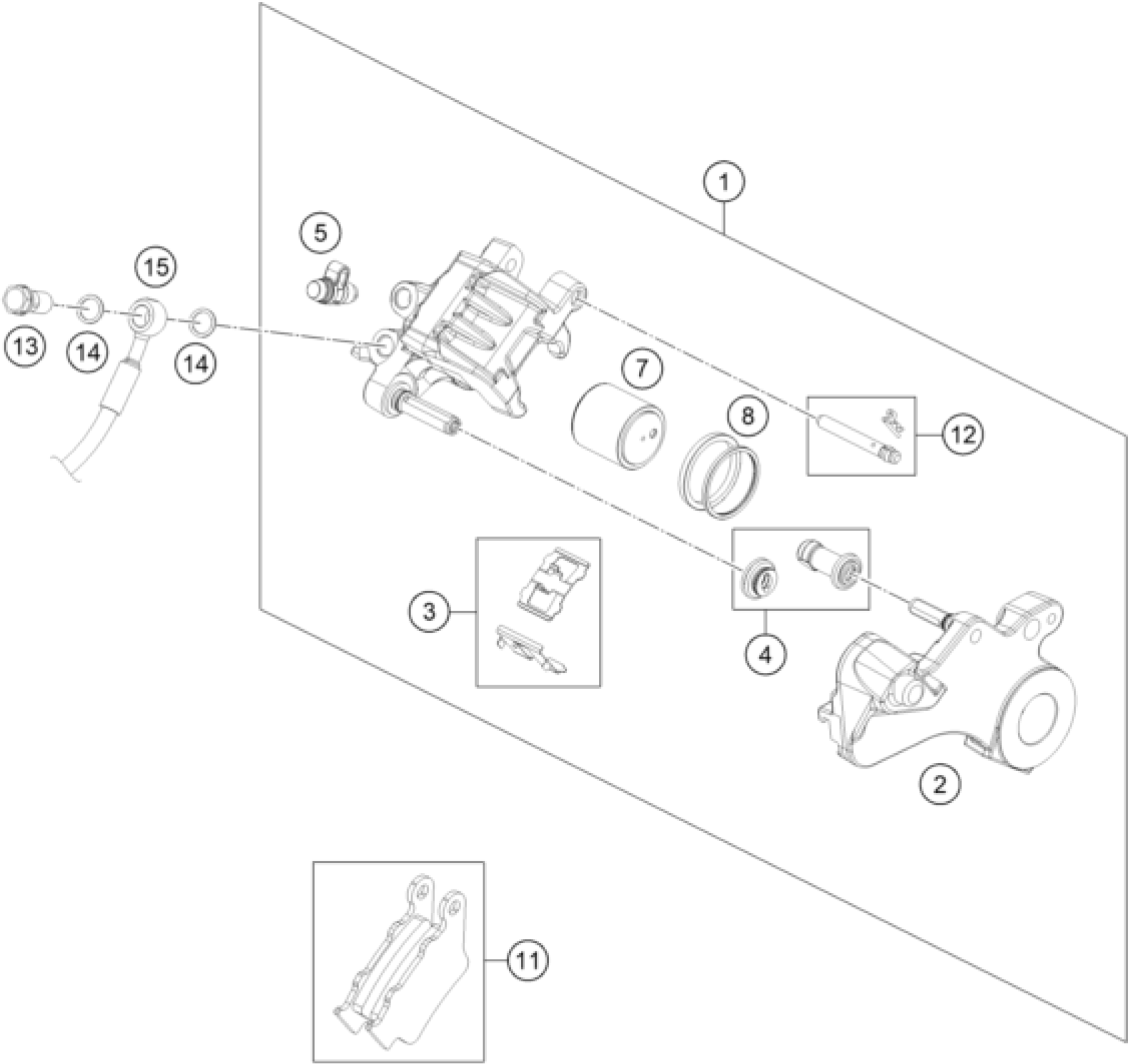

KTM 690 DUKE ORANGE ABS 2016 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CAL. RE. - WITHOUT PADS

7601308000101

$290.68

2

BRAKE CALIPER BRACKET REAR

7601317500001

$151.56

3

RETAINING SPRING SET

54613311200

$15.61

4

CUP SET SHORT

54613218100

$23.55

5

BLEEDER SCREW WITH CAP

61013020200

$8.41

7

BRAKE PISTON 32MM

50313083000

$31.97

8

REPAIR KIT SEALING RINGS 32MM

50313081000

$15.98

11

BRAKE PAD SET REAR SBS-S-40GF

75013090000

$46.18

12

BOLT SET 05

61013082000

$18.88

13

banjo bolt M10x1x19.5

62113020100

$8.78

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

BRAKE PIPE

76042004100

$120.79
