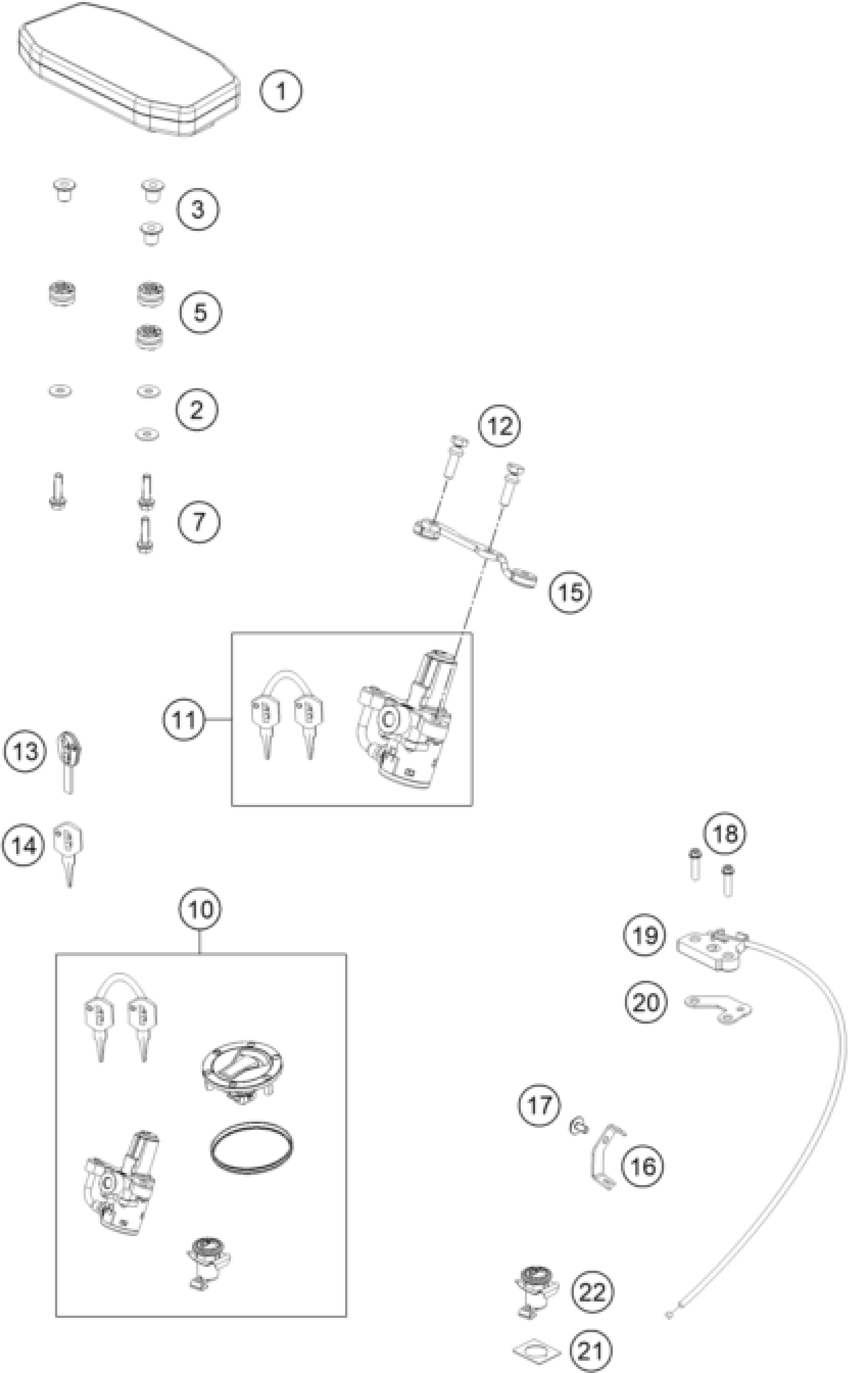

KTM 690 DUKE ORANGE ABS 2016 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

5

DAMP. COMPONENT SPEEDOMETER

61314069051

Unavailable

7

HH collar screw M5x20 TX30

0025050206

Unavailable

10

LOCK SET

76011066044

Unavailable

11

IGNITION + STEERING LOCK

76011066000

Unavailable

12

Tear-off screw M6 ignition loc

76011064200

Unavailable

13

BLANK KEY 690

76011067100

Unavailable

15

ALU PLATE IGNITION LOCK COVER

76011066095

Unavailable

16

SEAT LOCK BRACKET

76007051000

Unavailable

17

COLLAR SCREW M6X12 TX

0024060123

Unavailable

18

HH collar screw M6x25 TX30

0025060256

Unavailable

19

SEAT LOCKING MECHANISM

76007050050

Unavailable

20

BRACKET SEAT LOCKING MECHANISM

76007052000

Unavailable

21

ANTI-ROTATION ELEMENT SEATLOCK

76007053000

Unavailable

22

SEAT LOCK

76007050000

Unavailable

2

washer DIN 9021 A - 5.3

0021050003

Unavailable

3

COLLAR BUSHING 5,5X9X15X11,5

76014069050

Unavailable

1

INSTRUMENT PACK

76014269000

Unavailable

14

KEY SET

76011067000

Unavailable
