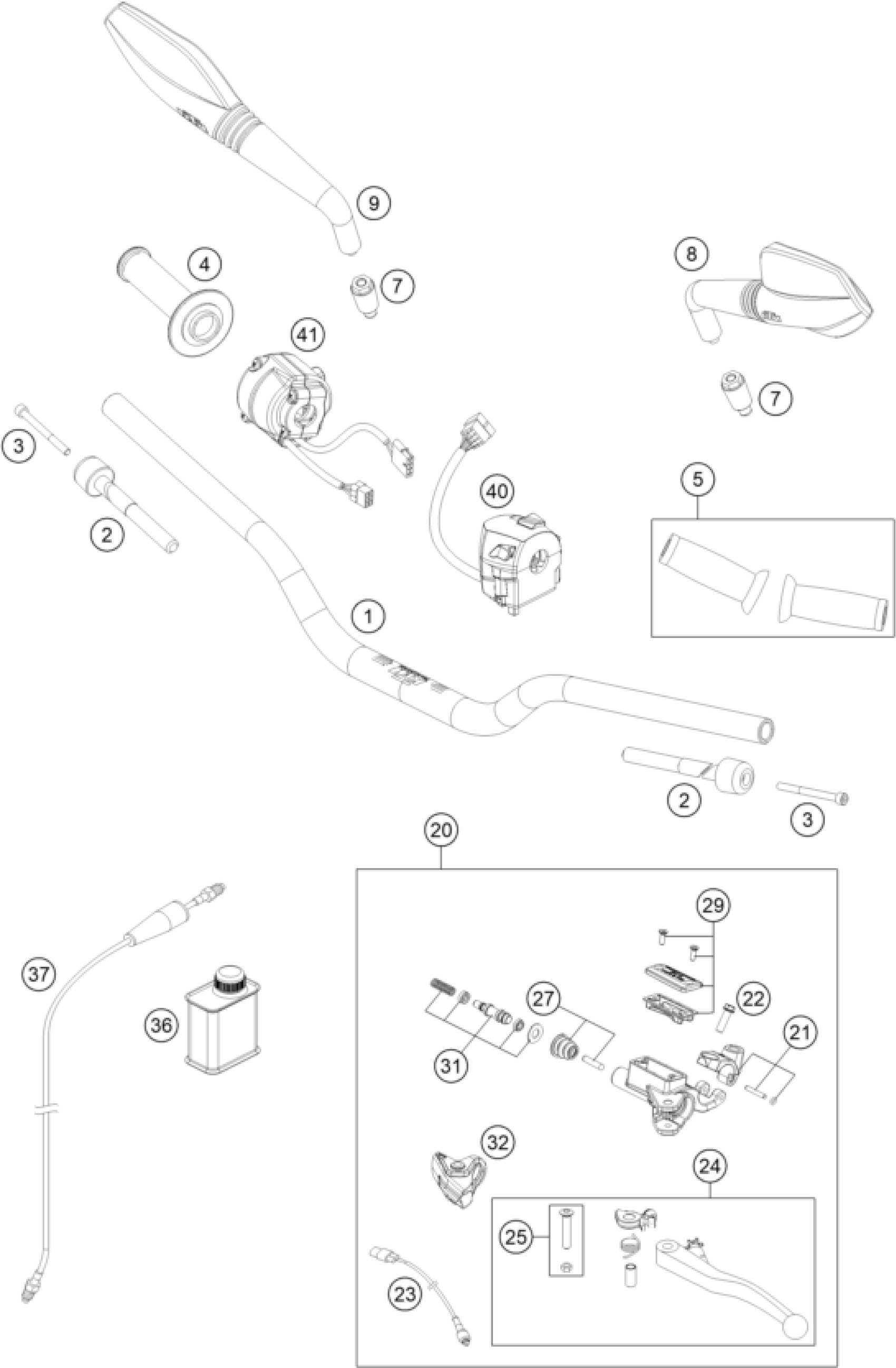

KTM 690 DUKE ORANGE ABS 2016 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR D= 28MM

76002001000

$152.40

2

handlebar weight

61002004000

$35.52

3

SHCS DIN 912 M6x65

0912060653

$2.05

4

THROTTLE GRIP

76002010000

$29.91

5

GRIP SET OPEN END

76002021000

$46.27

7

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

8

REVIEW MIRROR L/S 07

61112040000

$48.61

9

REVIEW MIRROR R/S 07

61112041000

$48.61

20

MASTER CYLINDER DOT CPL. 11MM

76502030144

$550.52

21

CLAMP, CYL. PIN, O-RING

76513005000

$69.65

22

HH collar screw M6x20 TX30

0025060206

$3.08

23

CLUTCH SWITCH ATV

83111049000

$106.49

24

CLUTCH LEVER CPL. LONG 13

76502031000

$115.28

25

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

27

PUSH ROD CPL. 13

76502046000

$31.78

29

COVER HYDR. CLUTCH DOT CPL.

25002033000

$33.28

31

REP. KIT PISTON DOT 11MM

27002032000

$125.84

32

PROTECT.CAP FOR LEVER PERCH 13

76502037000

$36.74

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

CLUTCH PIPE 1100MM

76032063000

$69.28

40

LIGHT SWITCH LC4

76011170000

$129.12

41

START-STOP/E-GAS

76011073100

$347.34
