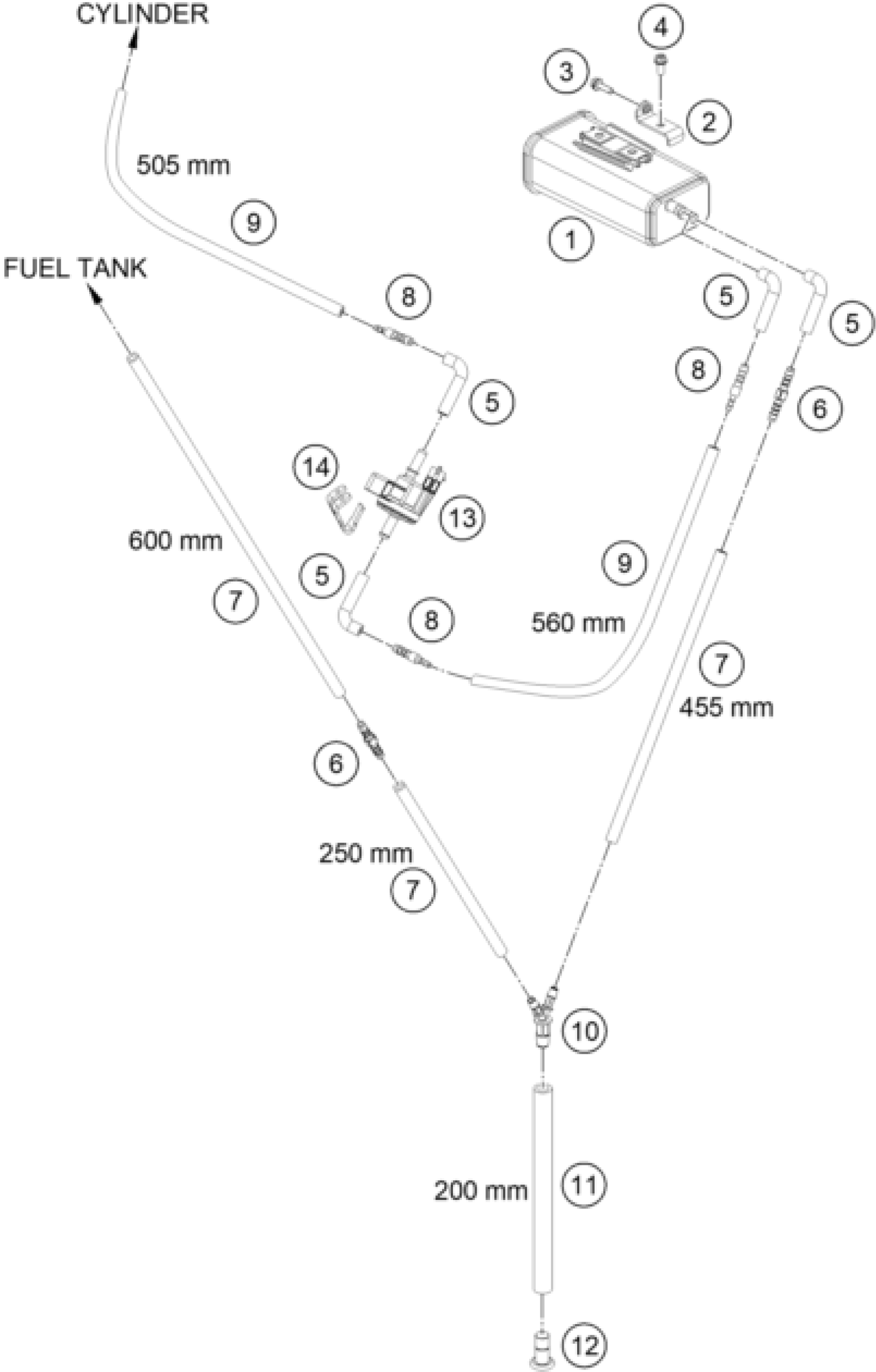

KTM 690 DUKE ORANGE ABS 2016 EVAPORATIVE CANISTER Diagram

#

Description

Price

2

BRACKET EVAP. CANISTER

76015002000

Unavailable

3

HH collar screw M5x16 TX30

0025050166

Unavailable

4

HH collar screw M6x12 TX30

0025060126

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

8

REDUCTION CONNECTION GRS6-4

75015023000

Unavailable

9

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

10

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

11

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

1

CARBON CANISTER

75015001200

Unavailable

12

PLUG D=10

61315026000

Unavailable

13

EVAP valve

76015015000

Unavailable

14

BRACKET PURGE VALVE

76011047000

Unavailable
