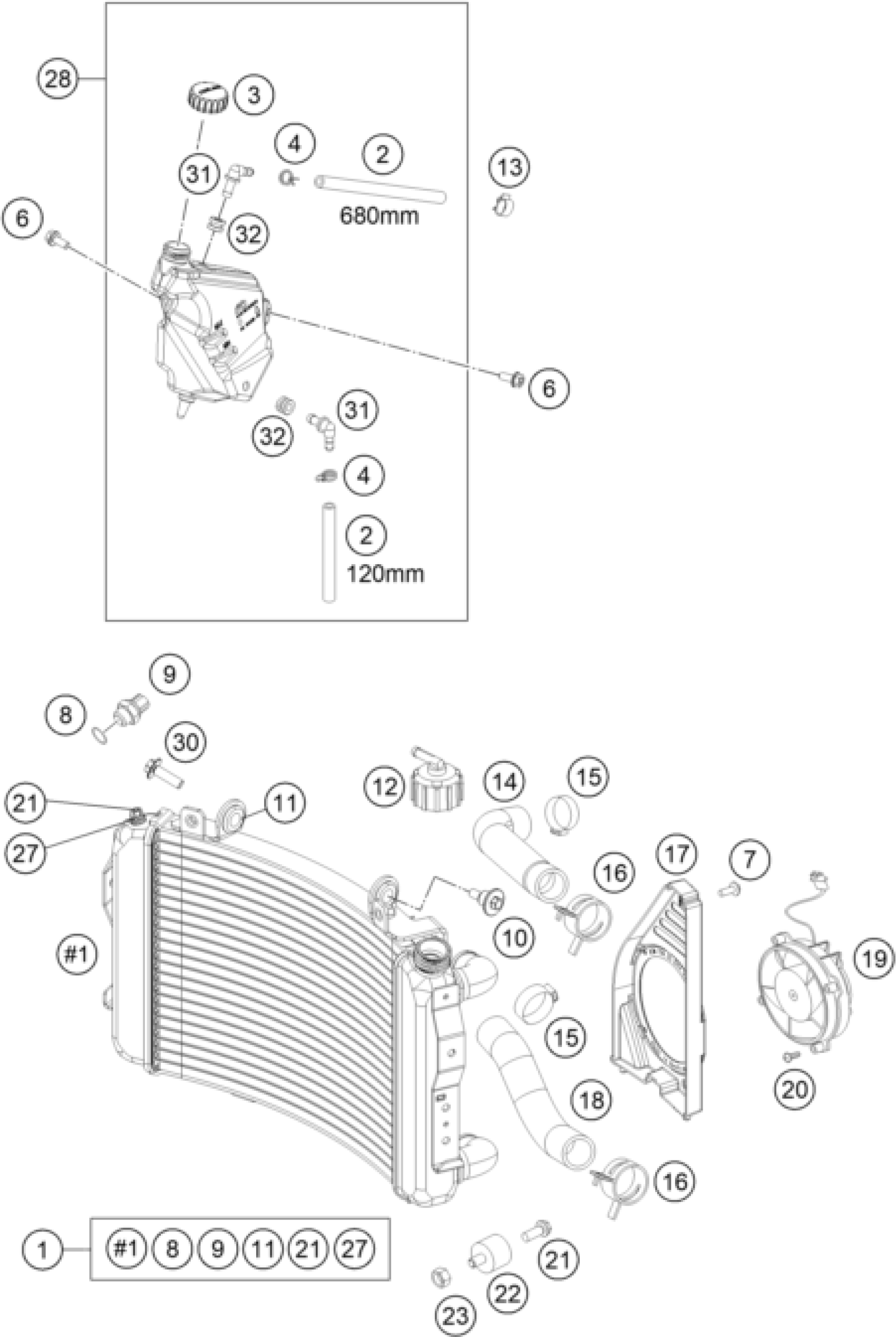

KTM 690 DUKE ORANGE ABS 2016 COOLING SYSTEM Diagram

#

Description

Price

1

RADIATOR VW2053

76035010000

$651.97

2

HOSE 6X10 EPDM 03

60035067001

$8.87

3

Latch, compens. tank cpl.

60335066044

$6.72

4

YDNAC-CLAMP 10107 10MM

58007117000

$3.39

6

HH collar screw M5x12 TX30

0025050126

$3.39

7

HH COLLAR SCREW M6X10 TX30

0024060106

$3.39

8

O-ring 17X1.5

0770017015

$1.69

9

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

10

SPECIAL SCREW M6X21 WS=8

60035001000

$3.39

11

RUBBER SLEEVE D=12MM

41001052000

$4.24

12

RADIATOR CAP 1,4 BAR

62535009000

$25.42

13

WIRING HOLDER 16MM

57013072100

$1.69

14

RADIATOR HOSE 07

75035027000

Unavailable

15

VARIABLE ONE-EAR CLAMP 32,5MM

00050325706

$4.24

31

Angle piece, reservoir

60035068000

$3.39

17

FAN COWL 07

75035044000

$6.91

18

RADIATOR HOSE 07

75035026000

Unavailable

19

FAN CPL. 12V LC4 2000

58435041000

$137.53

20

EJOT PT SCREW K50X16 1451

0081050161

$1.69

21

HH collar screw M6x10 TX30

0025060106

$3.39

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Self lock. nut DIN985-M6-A2

0985060003

$2.54

27

ALU-GASKET 6X10X1.5

60035048000

$3.39

28

EXPANSION TANK

76035065100

$54.69

30

HH collar screw M6x20 TX30

0024060206

$3.39

32

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.24

16

CLAMP STD DN32

00049320121

Unavailable
