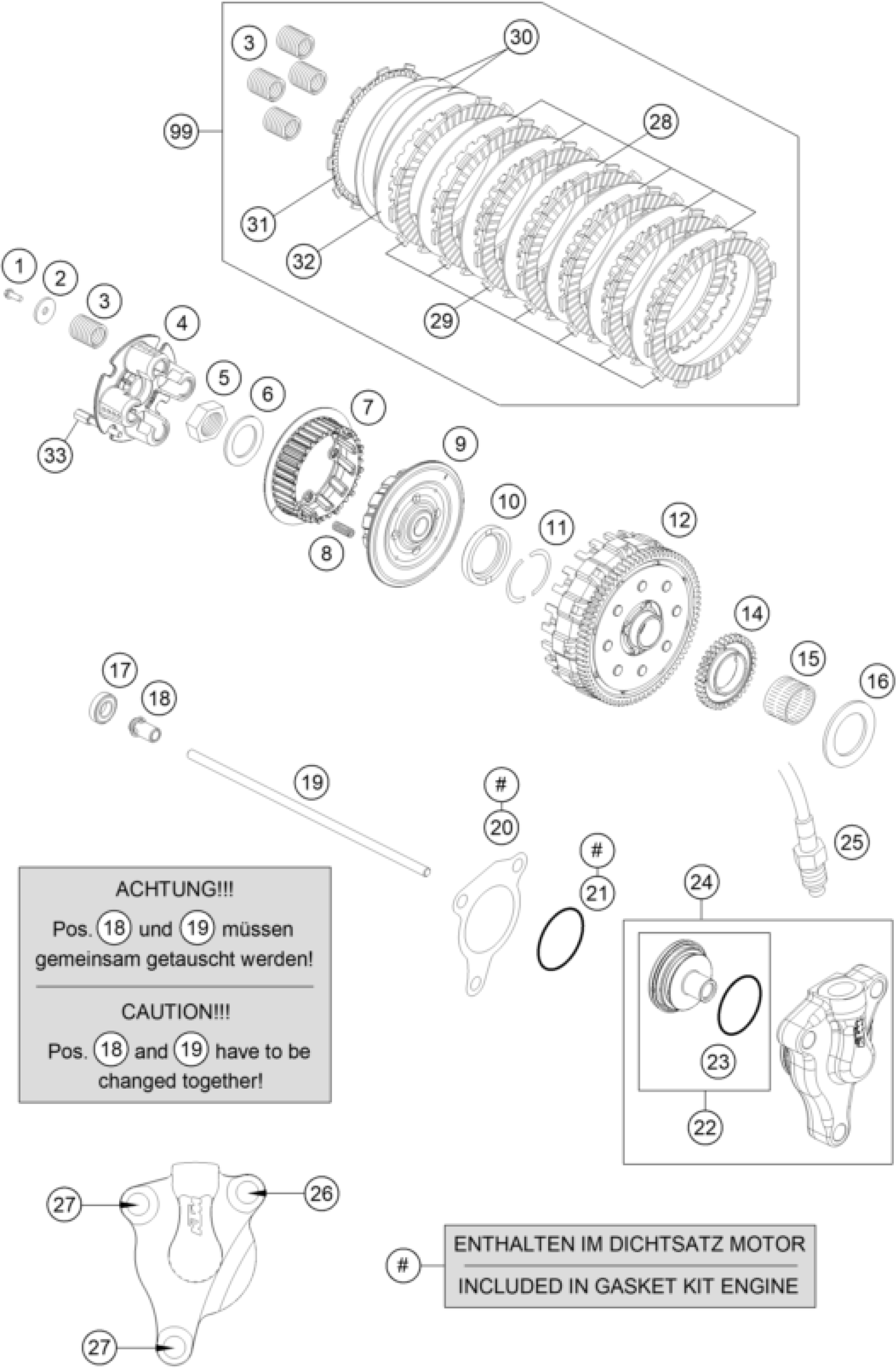

KTM 690 DUKE ORANGE ABS 2016 CLUTCH Diagram

#

Description

Price

1

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

2

SPRING RING 07

75032006000

$4.11

3

CLUTCH SPRING 3,0X33,5

58532080001

$8.87

4

PRESSURE CAP

75032003000

$112.19

5

hex nut M20x1,. H=6mm

60036073150

$6.91

6

thrust washer 20x32x2

47032020000

$4.11

7

INNER CLUTCH HUB MOVABLE

75032002002

$276.56

8

CLUTCH RELEASE SPRING

75032033000

$7.75

9

INNER CLUTCH HUB FIXED

75032002001

$259.36

10

STEPPED WASHER 07

75032009000

$9.34

11

HALF-WASHER 07

75032007000

$11.12

12

CLUTCH CAGE CPL. 79T

75032001144

$533.69

14

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

16

WASHER 26X40X2 07

75032017000

$6.35

17

deep groove ball bearing 6001.

0625060016

$18.88

18

PRESSURE BOLT 08

75032055100

$9.90

19

PUSH ROD 08

75032054200

$14.95

20

GASKET F. OUTPUT CYLINDER

59032065100

$5.60

21

O-ring 30x1.5 NBR 70

0770300015

$2.05

24

OUTPUT CYL. DOT KPL. 27MM

79432061044

$190.26

26

HH collar screw M6x35 TX30

0025060356

$3.08

27

HH collar screw M6x20 TX30

0025060206

$3.08

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

$18.41

29

LINING DISK 2,7MM FCC 02

58332011300

$28.98

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

$62.26

31

LINING DISC CUT OUT

75032111100

$23.46

32

STEEL DISK 1,5MM NITRIDED

75032112100

$22.99

33

HOLDING SCREW GMB-M5X35

75032032000

$7.66

99

CLUTCH KIT 690/701

75032011110

$218.97

25

CLUTCH PIPE 1100MM

76032063000

$69.28

22

PISTONKIT OUTPUT ZYL. DOT 27MM

26632066000

$88.82

23

O-Ring 23,52x1,78 EPDM

26632067000

$4.11
