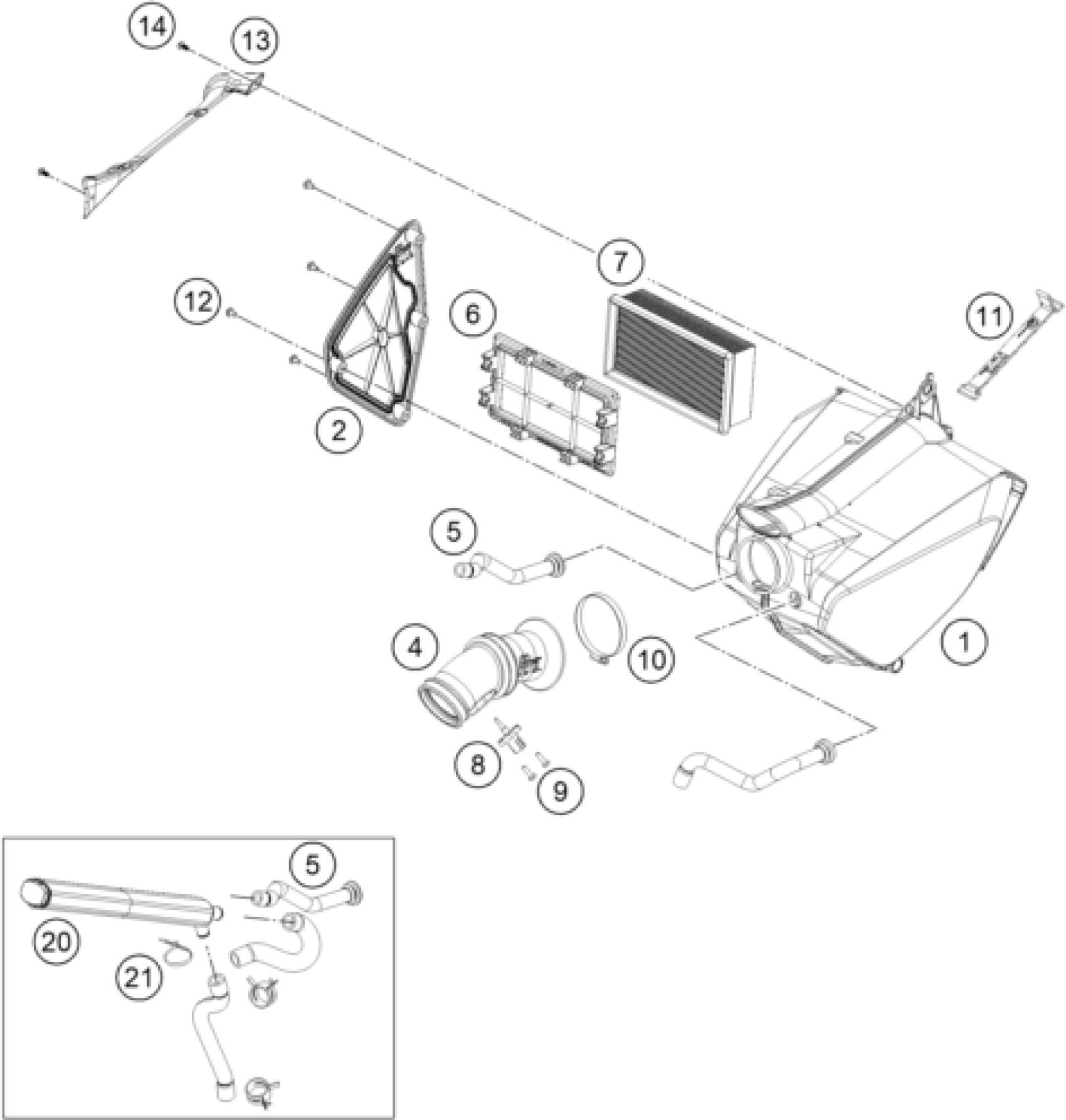

KTM 690 DUKE ORANGE ABS 2016 AIR FILTER Diagram

#

Description

Price

1

AIRFILTERBOX

76006001100

$120.23

2

FILTER BOX COVER

76006002000

$15.14

4

INTAKE TRUMPET 760

76006026000

$51.60

5

VENTILATION OIL SEPARATOR FOAM

76030088000

$25.42

6

FILTER FRAME

76006016000

$6.72

7

AIRFILTER

75006015000

$13.64

8

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

9

INT. TORX OVAL HEAD M5X16

0018050163

$1.49

10

HOSE CLAMP 60-80MM

55006028000

$4.11

11

Rubber holder, battery

76011056000

$8.13

12

SCREW TORX M5X10

78105081010

$2.05

13

CABLE SUPPORT

76008030000

$5.23

14

EJOT PT screw K50x12

0081050121

$2.05

20

OIL SEPARATOR FOAM 07

75030087000

$22.62

21

Cable tie 200/4.6mm black

44011076200

$1.49
