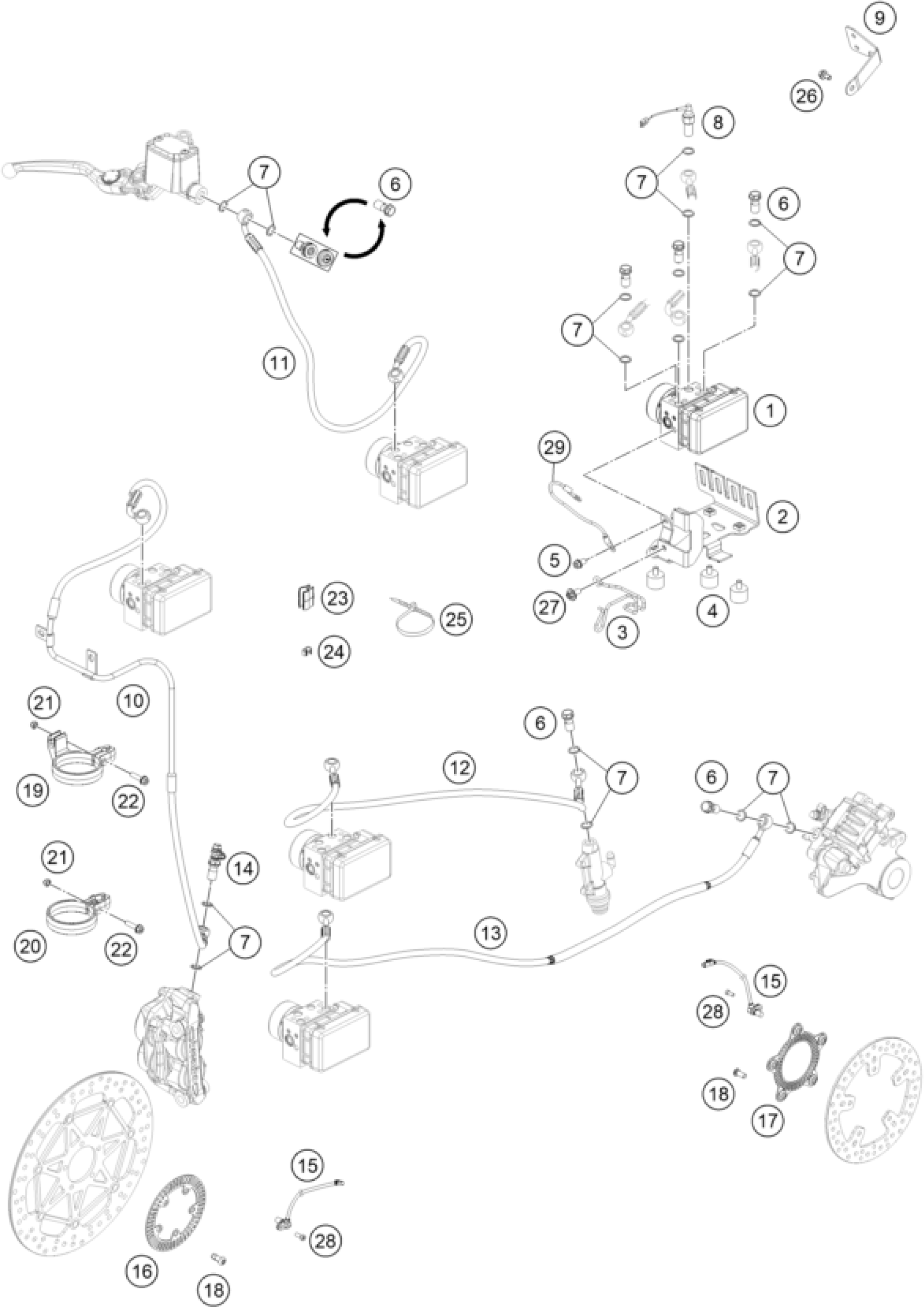

KTM 690 DUKE ORANGE ABS 2016 ABS Diagram

#

Description

Price

2

ABS MOUNTING CPL.

76042040100

Unavailable

3

BRAKE PIPE GUIDE

76042001150

Unavailable

1

ABS-MODULE FILLED

76042131044

Unavailable

4

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

5

HH collar screw M5x10 TX30

0025050106

Unavailable

6

banjo bolt M10x1x19.5

62113020100

Unavailable

7

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

8

BRAKE LIGHT SWITCH REAR

62111051000

Unavailable

9

ABS RELAY BRACKET

76042080050

Unavailable

10

BRAKE PIPE

76042001000

Unavailable

11

BRAKE PIPE

76042002000

Unavailable

12

BRAKE HOSE

76042003100

Unavailable

13

BRAKE PIPE

76042004100

Unavailable

14

BLEEDER SCREW CPL. 05

62513020000

Unavailable

15

ABS-SENSOR

76042125000

Unavailable

16

Phonic wheel, front

76042020000

Unavailable

17

Sensor wheel rear

76042021000

Unavailable

18

Special screw M8X25 SL TX40

76009062000

Unavailable

19

CLAMPING BRAKE PIPE

76001071100

Unavailable

20

CLAMPING BRAKE PIPE

76001070100

Unavailable

21

Self locking nut DIN 985 M5

0985050003

Unavailable

22

HH collar screw M5x20 TX30

0025050206

Unavailable

23

CABLE SUPPORT 10/4MM 2014

54813026100

Unavailable

24

BAR SPACER 4/7 BLACK

60111094100

Unavailable

25

Cable tie 200/4.6mm black

44011076200

Unavailable

25

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

26

HH collar screw M6x10 TX30

0025060106

Unavailable

27

HH collar screw M6x13 TX30

0024060136

Unavailable

28

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

29

Ground cable LC4 ABS

76011097050

Unavailable
