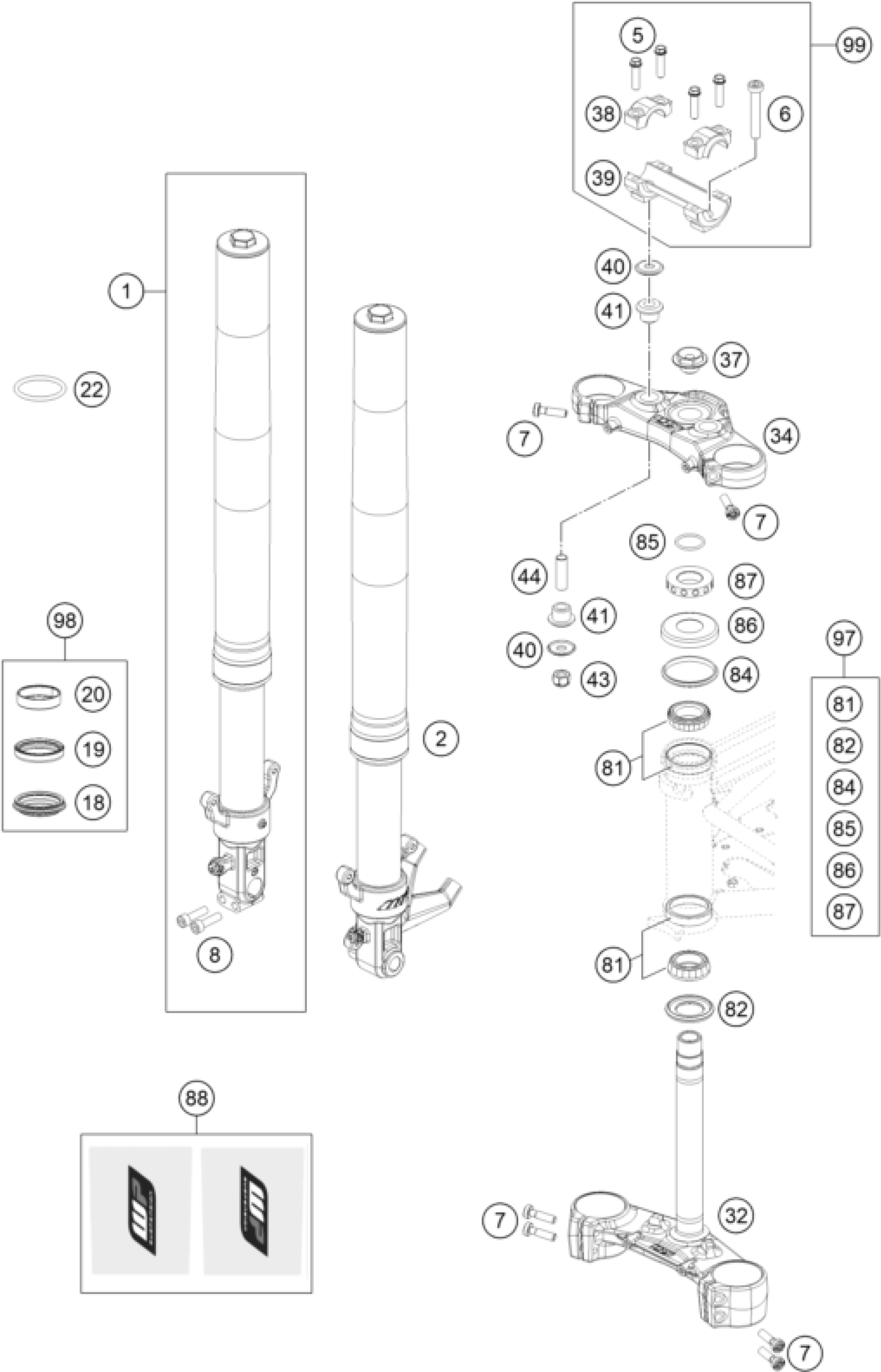

KTM 690 Duke, orange 2019 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK WP 690 DUKE R/S

05187L19R01

$1,193.52

2

FORK WP 690 DUKE L/S

05187L19L01

$1,888.50

5

HH collar screw M8x30

0025080306

$3.08

6

AH SCREW DIN6912-M10X60

0012100603

$2.05

7

AH collar screw M8x30 ISA45

0035080306

$3.08

8

AH SCREW M8X27

J020080273

$2.05

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

22

O-ring 43x2 NBR70 siliconized

40140024

$4.11

32

LOWER TRIPLE CLAMP CPL.

7600103202801S

$277.22

34

UPPER TRIPLE CLAMP

7600103402801S

$150.53

37

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

39

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

40

washer 10.5x32x2

56401042000

$4.11

41

rubber bushing

56401040000

$5.23

43

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

44

spacer tube 10.2x12x38

61001041000

$4.11

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

O-RING 27,5X2,5 NBR

0770275025

$1.49

86

STEERING HEAD COVER

78101086000

$6.07

87

STEER.HEAD NUT

57301036100

$21.96

97

STEARING HEAD REP. KIT

76001080044

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

88

STICKER SET FORK WP SMALL

61308192000

$11.87
