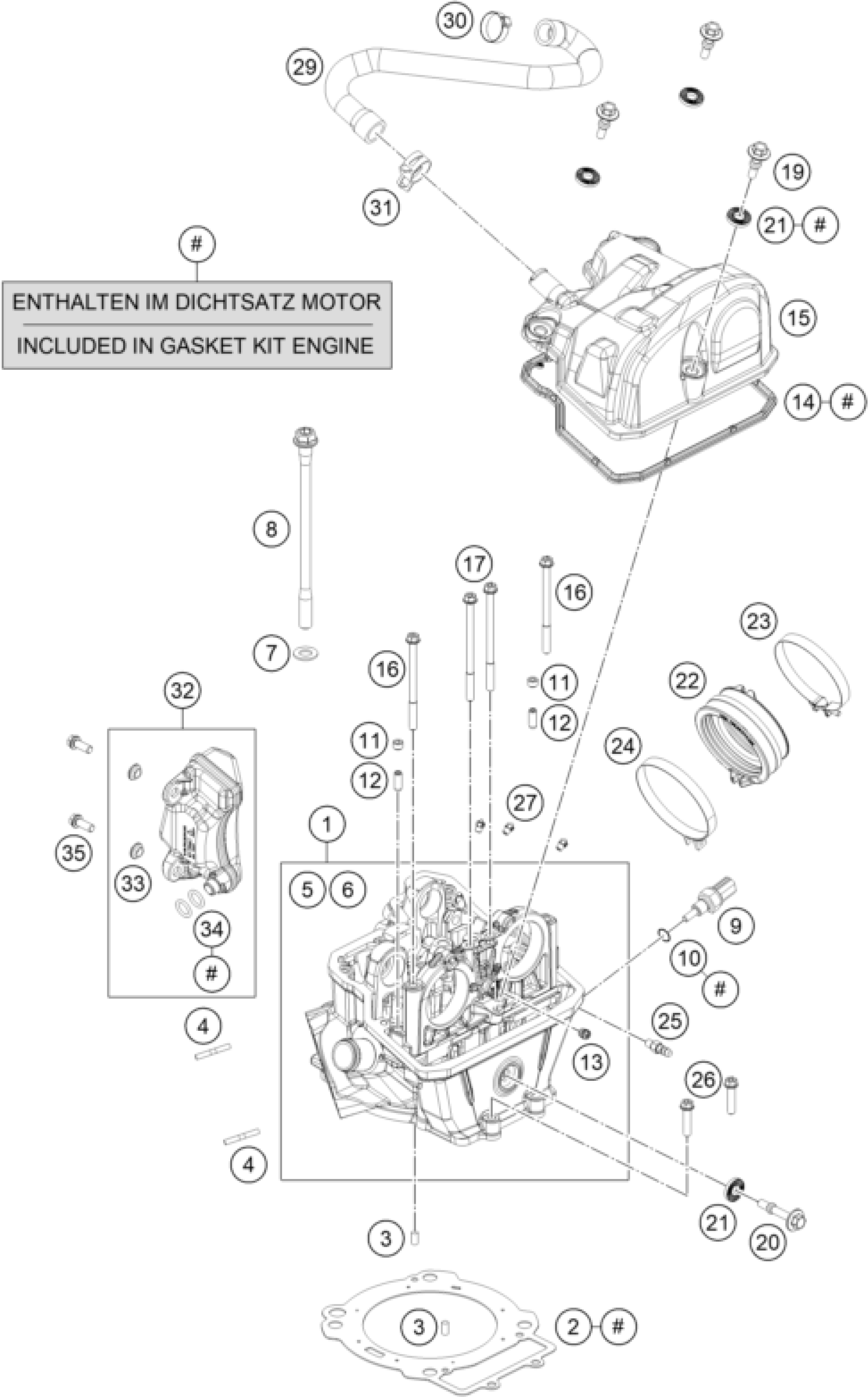

KTM 690 Duke, orange 2019 CYLINDER HEAD Diagram

#

Description

Price

1

Cylinder head cpl.

7663602004424

Unavailable

2

CYLINDER HEAD GASKET Ø105

76630036000

Unavailable

3

GROOVED PIN DIN1474 5X10

0474050100

Unavailable

4

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable

5

VALVE GUIDE 6MM

76636026001

Unavailable

6

VALVE GIUDE INTAKE 6MM

61236025001

Unavailable

7

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

Unavailable

9

water temperature sensor

79435047000

Unavailable

10

o-ring 10.00x2.00 silicone

0770100020

Unavailable

11

THREAD PIN DIN913-M8X6 PRE30

0913080060S

Unavailable

12

Cylinder pin DIN7979 6x16

0979060160

Unavailable

13

SCREW PLUG

59030296000

Unavailable

14

VALVE COVER GASKET

76636053000

Unavailable

15

VALVE COVER

7663605200033

Unavailable

16

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

17

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

19

VALVE COVER SCREW

78036054100

Unavailable

20

valve mechanism cover screw

75036055000

Unavailable

21

decoupling element

75036052010

Unavailable

22

RUBBER SLEEVE INTAKE FLANGE

76636044000

Unavailable

23

HOSE CLAMP GEMI 70MM

75036047000

Unavailable

24

HOSE CLAMP GEMI 75

61336048000

Unavailable

25

VACUUM CONNECTION M6/0.75MM

60036023200

Unavailable

26

HH collar screw M6x25 TX30

0025060256

Unavailable

27

oil jet 50 M5

60030063050

Unavailable

29

ENGINE EXHAUST CYLINDERHEAD

76030084100

Unavailable

30

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

31

CLAMP 21X12 STD-DES

00049210121

Unavailable

32

RESONATOR ASSY.

76636065000

Unavailable

33

Chain slider bushing

69004060050

Unavailable

34

O-RING 11,3 X2,4 SILICON

0770116241

Unavailable

35

HH collar screw M6x12 TX30

0025060126

Unavailable
