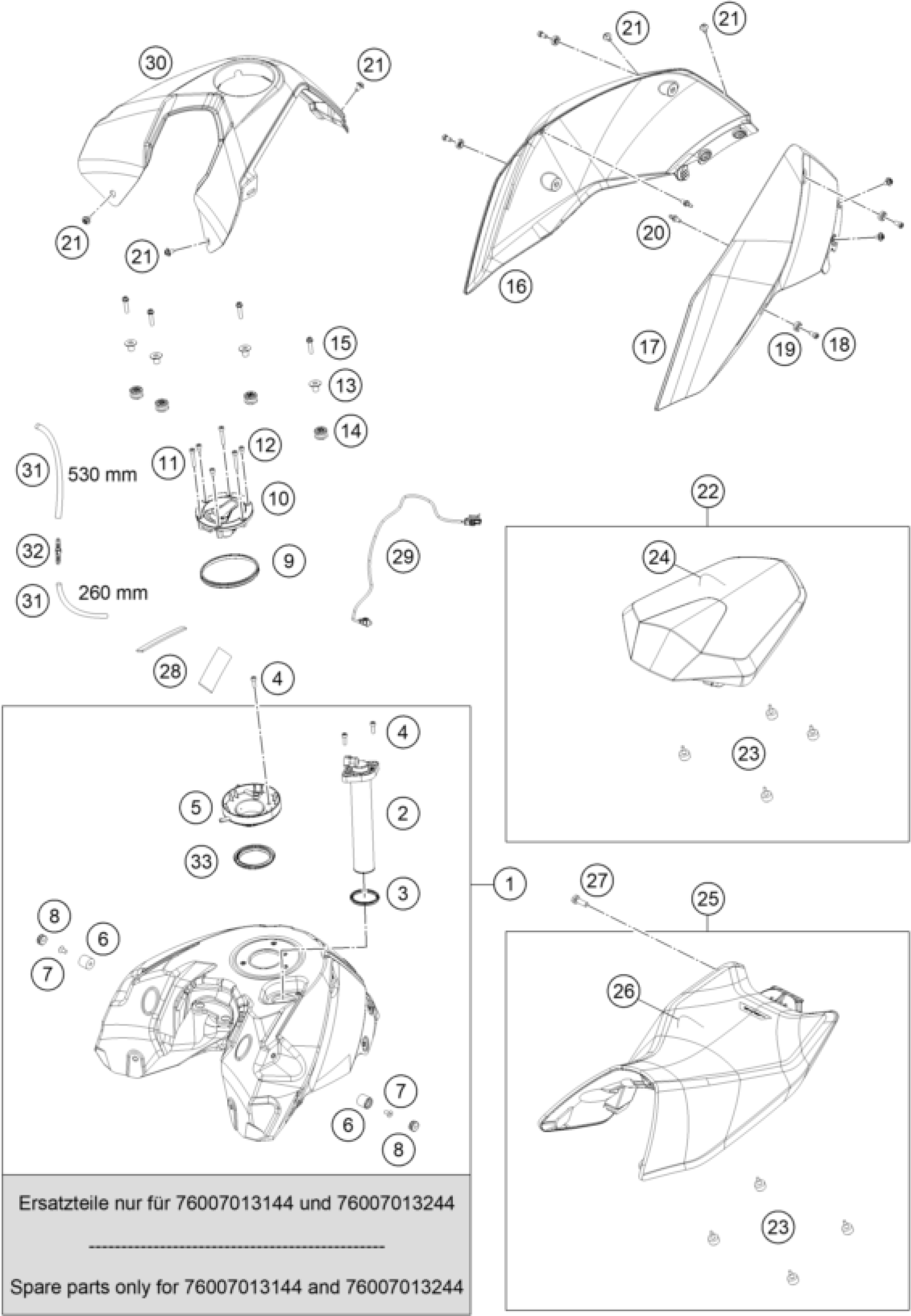

KTM 690 Duke, orange 2018 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK CPL.

76007013144

$727.89

2

FUEL TANK SENSOR

76007080000

$134.35

3

Gasket, fuel level sensor

76007080190

Unavailable

4

AH collar screw DIN 912 M5x16

0912050163

$1.49

5

fuel tank neck

76007008350

Unavailable

6

BUSHING 13X20X18,5MM

76008052000

$7.94

7

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

8

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

9

GASKET TANK PLUG

76007008052

$5.23

10

TANK PLUG

76007008000

$100.88

11

AH SCREW DIN0912-M 5X30

0912050303

$1.49

12

SHCS DIN 912 M5x8

0912050083

$1.49

13

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

14

rubber grommet, tank mounting

69007027000

$3.08

15

HH collar screw M6x25 TX30

0025060256

$3.08

16

SPOILER RIGHT ORANGE

76008051000EB

$49.08

17

SPOILER LEFT ORANGE

76008050000EB

$53.75

18

SHCS ISO 14580 M6x12

014580060126

$2.05

19

SPECIAL WASHER

61108045000

$4.11

20

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

Sozius seat

76007147000

Unavailable

23

SEAT RUBBER 10 MM

75007046010

$3.08

24

seat cover sozius

76007147050

Unavailable

25

Seat

76007140100

Unavailable

26

seat cover

76007140050

Unavailable

27

AH collar screw M8x25 ISA45

0035080256

$4.11

28

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

29

HARNESS FUEL LEVEL SENSOR

76011096000

$22.71

30

TANK COVER

76008002000

$36.92

31

HOSE 5,4X9,4 NBR, METER

60007126001

Unavailable

32

HOSE CONNECTION STRAIGHT

69015019010

$5.23

33

gasket tank insert

21007008151

$14.02
