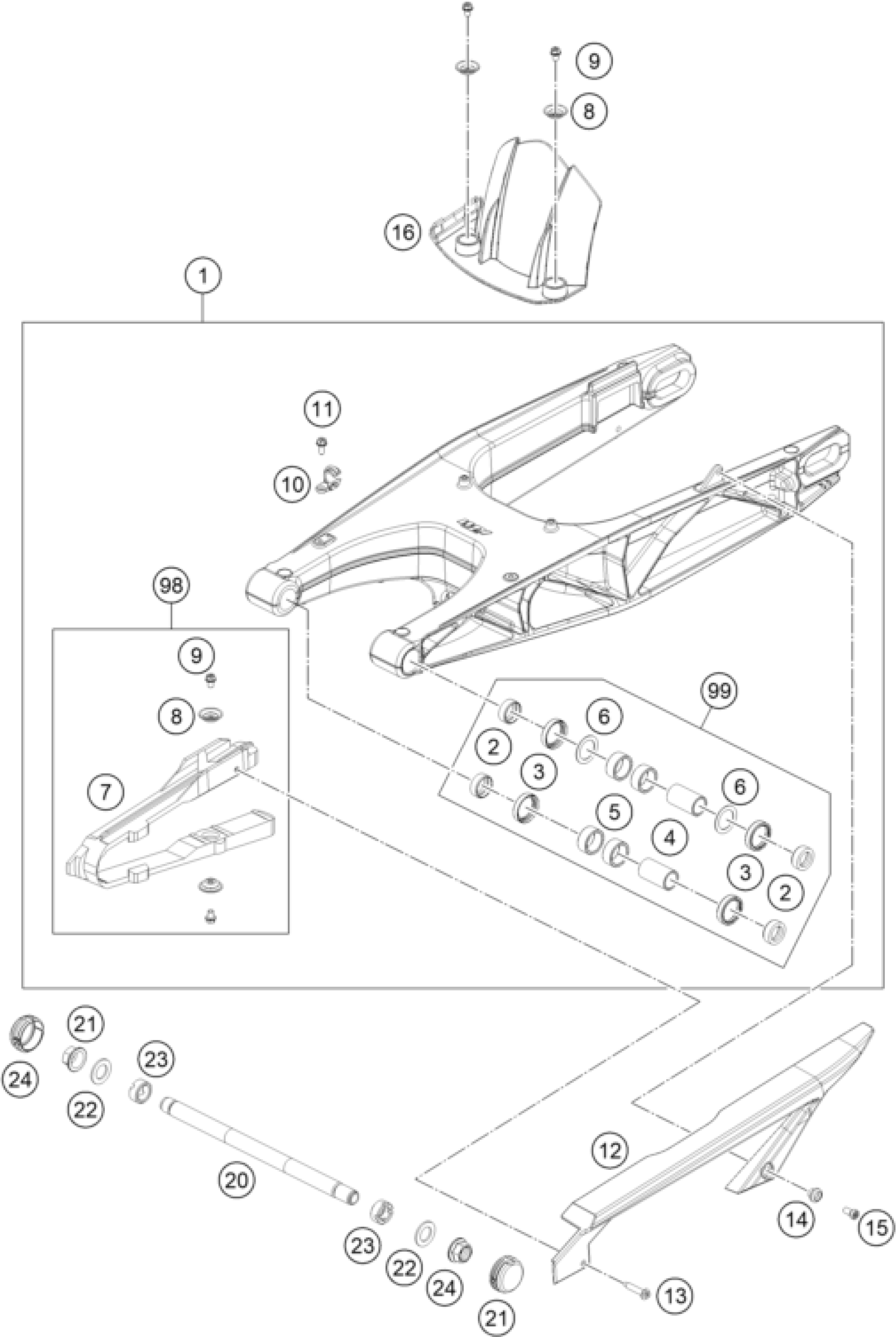

KTM 690 Duke, orange 2018 SWING ARM Diagram

#

Description

Price

1

Swing 690 Duke

7600403014433

$627.47

2

Bucket f. shaft seal ring 03

54804034000

$5.23

3

radial shaft seal 25x32x7

0760253270

$6.63

4

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

5

Needle bushing HK2212V 22/28/1

0618222812

$9.81

6

STOP DISK 22,2X31,7X1

54603036000

$3.08

7

CHAIN SLIDING PROTECTION 07

75004066000

$17.85

8

BUCKET

72210079000

$3.00

9

HH collar screw M6x8 TX30

0025060086

$2.05

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

11

HH collar screw M5x10 TX30

0025050106

$1.49

12

CHAIN GUARD

75004060000

$8.97

13

Special screw K60X30 WS=6

0017060305

$2.05

14

BUSHING MUD FLAP 07

75001094010

$6.07

15

SHCS ISO 14580 M6x12

014580060126

$2.05

16

MUD FLAP 07

75004050000

$15.14

20

SWING ARM BOLT L=272MM 07

75004037000

$69.74

21

Nut with flange M16X1,5 WS=19

54804038000

$2.05

22

WASHER 07

75004042000

$4.11

23

ADJUSTING RING M24X1 , 5 07

75004046000

$8.13

24

PLASTIC CAP 07

75003088000

$3.08

98

CHAIN GUARD KIT

75004066010

$23.09

99

SWINGARM REP. KIT

54804230010

$78.16
