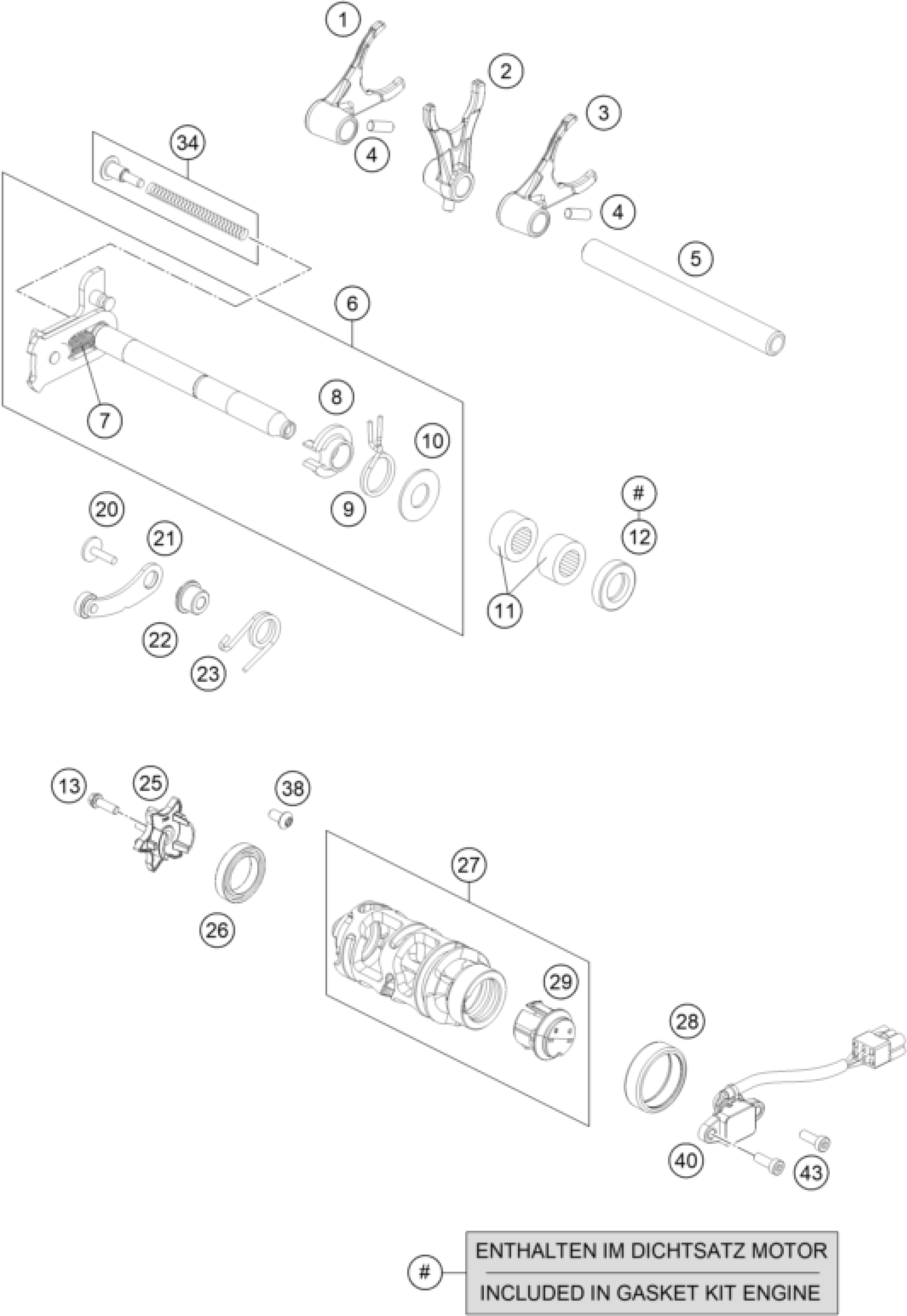

KTM 690 Duke, orange 2018 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

$39.73

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

$38.51

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

$39.73

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

5

SHIFTRAIL 07

75034019000

$12.99

6

Shifting shaft assembled

76834005133

$60.02

7

TENSIONING SPRING 0,8MM

56534013100

$1.49

8

SPRING GUIDE

54634020000

$6.44

9

RETURN SPRING 2,2MM '95

54634014100

$6.63

10

STOP DISK 14X30X1,5 STEEL

75034050000

$4.11

11

needle sleeve HK 1412 14x20x12

54632095000

$7.00

12

radial shaft seal 14x24x6 B

0760142460

$9.25

20

HH collar screw M6x20 TX30

0024060206

$3.08

21

LOCKING LEVER CPL.

61434024000

$41.60

22

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

23

ARRESTING LEVER SPRING 07

60034023100

$11.40

25

Shift locker

76834115001

$34.16

26

BALL BEARING 61805 C3

0625618050

$43.94

27

Shifting drum cpl.

76634012144

$128.27

28

NEEDLE BEAR HK3512 35X42X12

0618354212

$9.90

29

Magnet bracket cmpl.

79234012020

$58.71

34

SPRING F. SHIFTING SHAFT CPL.

75034007044

$8.78

38

PAN HEAD SCREW M5X10 TX25

073800501002

$1.49

40

GEAR POSITION SENSOR

60411023000

$173.62

43

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

13

HH collar screw M6x20 TX30

0025060206

$3.08
