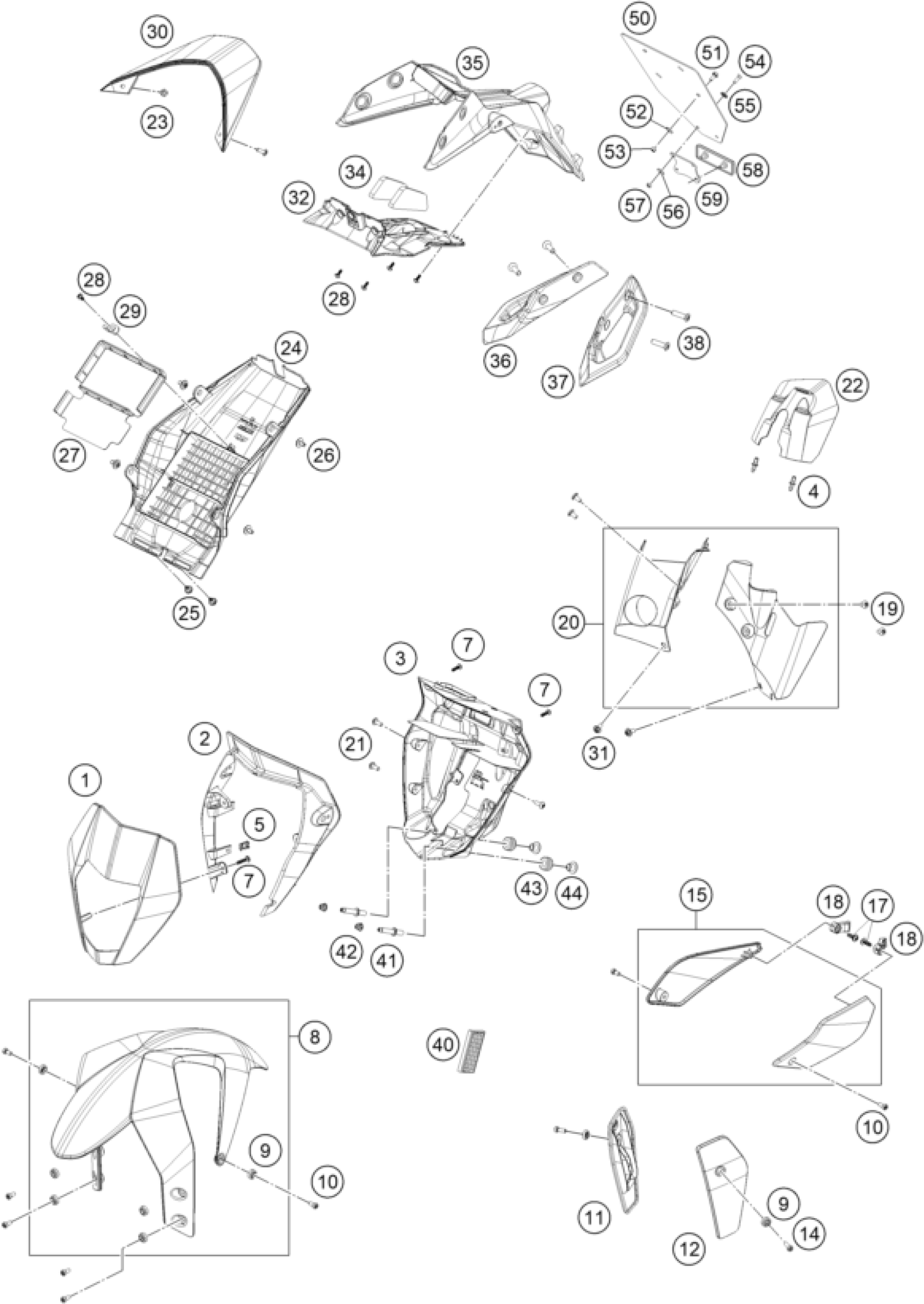

KTM 690 Duke, orange 2018 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK BLACK

7600800100030

$26.64

2

MASK MIDDLE PART

76014061000

$14.67

3

MASK BACK BOARD

76014060100

$29.82

5

clip nut M5

69008021080

$3.08

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

FRONTFENDER CPL.

7600801004430

$59.74

9

SPECIAL WASHER

61108045000

$4.11

10

SHCS ISO 14580 M6x12

014580060126

$2.05

11

RADIATOR SPOILER R/S

7600806100030

$14.02

12

RADIATOR SPOILER L/S

7600806000030

$14.02

14

Cap head bold ISO 14580 M6x16

014580060166

$2.05

15

FRAMECOVER-SET

76003094000

$12.80

17

EJOT PT screw K50x14

0081050141

$1.49

18

BRACKET FRAMECOVER

76003093050

$2.05

19

SCREW TORX M5X10

78105081010

$2.05

20

FRAMECOVER-SET FRONT

76003085044

$18.50

21

Oval head screw M5x14 TX25

58605083014

$3.08

22

COVER IGNITION LOCK

76011066050

$8.03

23

Cap head bold ISO 14580 M6x16

014580060166

$2.05

24

REAR END LOWER PART

76008019000

$21.68

25

EXPANDING RIVET CPL.

76503075100

$3.08

26

COLLAR SCREW M6X12 TX

0024060123

$1.49

27

BATTERY -BASE

76011054050

$11.68

28

EJOT PT screw K50x12

0081050121

$2.05

29

RETAINING PLATE BATTERY

76011055000

$5.23

30

COVER REARLIGHT BLACK

7600801502030

$17.94

31

HH collar screw M6x13 TX30

0024060136

$3.08

32

COVER NUMBER PLATE CARRIER

76008015010

$11.12

34

METAMOLL FOR REARLIGHT

76014043000

$4.11

35

NUMBER PLATE CARRIER

76008015000

$23.18

36

HANDLE R/S

76012009000

$37.58

37

HANDLE L/S

76012008000

$33.09

38

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49

40

REFLECTOR YELLOW '99

58412080100

$7.75

41

EJOMAT DOUBLE PIN 60X12/M6X28

76014060150

$5.23

42

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

43

RUBBER SLEEVE 7X10,8X16MM

76014069051

$2.05

44

COLLAR BUSHING 6,2X7,5X13X12

76014062000

$3.08

50

license plate mouning plate

60012081200

$8.41

51

HH collar screw M6x15 TX30

0024060156

$3.08

52

Washer DIN9021-A 6.4

0021060003

$2.05

53

Self lock. nut DIN985-M6-A2

0985060003

$2.05

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

55

WASHER 6MM

40006006000

$1.49

56

WASHER DIN0125-A 5,3

0125050003

$1.49

57

Self locking nut DIN 985 M5

0985050003

$2.05

58

Rear reflector red

58412080400

$5.23

59

BRACKET FOR REFLECTOR

58412080050

$6.07

4

QUICK RELEASE-NIPPLE 03

54806008051

$2.05
