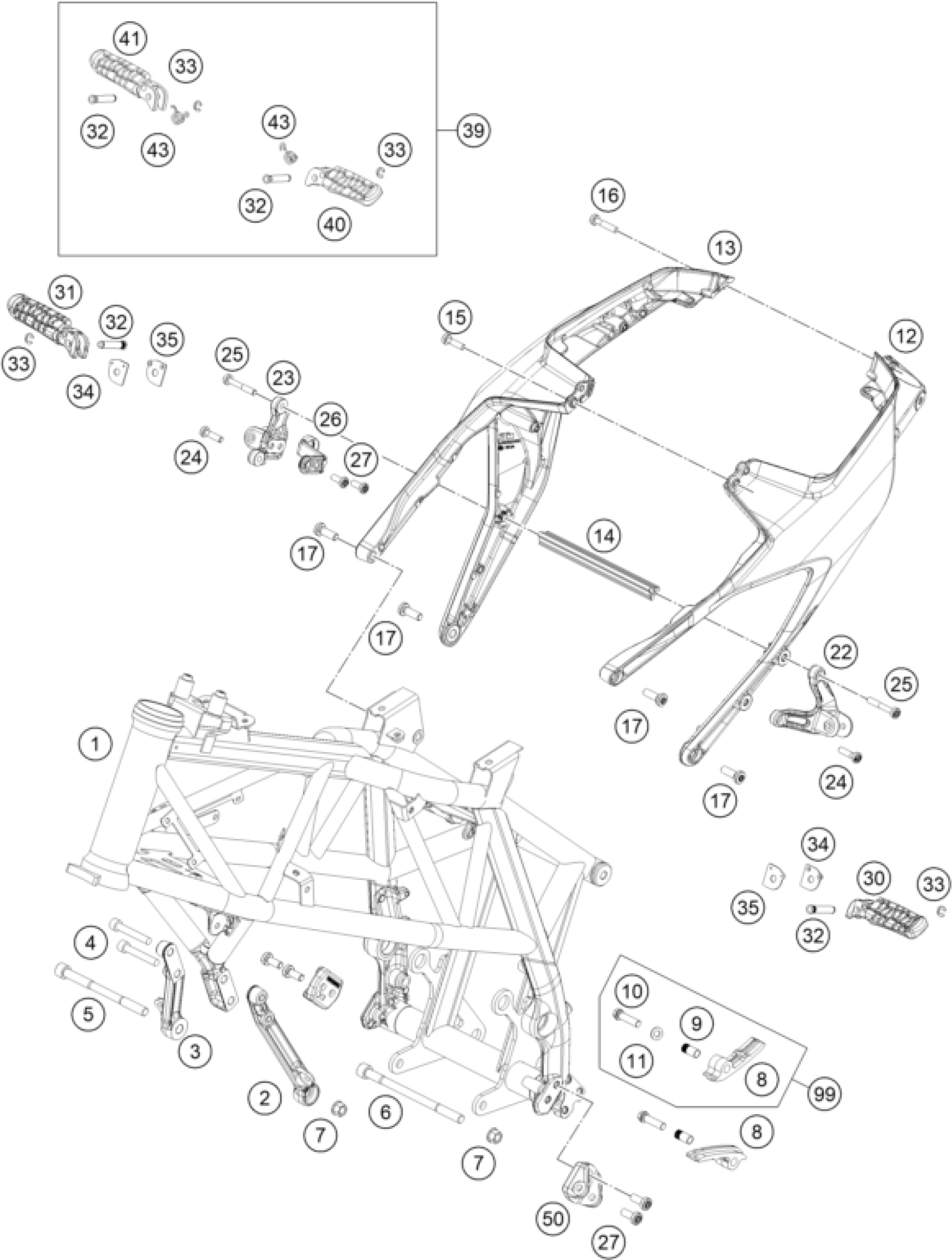

KTM 690 Duke, orange 2018 FRAME Diagram

#

Description

Price

1

FRAME ''760PA''

7600300110033

$2,117.86

2

CONNECTION BRACKET ENG. L/S 07

7500300104901

$45.62

3

CONNECTION BRACKET ENG. R/S 07

7500310104901

$41.51

4

Cap head bold M8x50 ISR 45

014579080506S

$5.23

5

SPECIAL SCREW M10X129 HEX8 08

75603015000

$7.85

6

SPECIAL SCREW M10X152 ISK8 07

75003014000

$6.72

7

COLLAR NUT M10 WS=13

54630044000

$1.49

8

CHAIN SLIDING PIECE 03

54804067000

$5.23

9

BUSHING 8,2X10X20

51103053051

$4.11

10

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

11

washer DIN 125 A -8.4

0125080003

$1.49

12

TAILBOOM L/S

7600300200130

$330.42

13

TAILBOOM R/S

7600300200230

$330.14

14

BRACE SUBFRAME

76003002010

$27.48

15

AH collar screw M8x25 ISA45

0035080256

$4.11

16

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

17

AH collar screw M10x30 ISA45

0035100309S

$3.08

22

FOOTREST BRACKET REAR L/S

7600304800001S

$82.08

23

FOOTREST BRACKET REAR R/S

7600304900001S

$86.48

24

AH collar screw M8x30 ISA45

0035080306S

$3.08

25

AH collar screw M8x50 ISA45

0035080506S

$5.23

26

BRACKET F. SILENCER

7600508400001S

$56.56

27

SHCS M8x20 TX45

0035080206S

$5.32

30

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

31

Footrest cmpl. r/s rear 03

60003051000

$61.89

32

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

33

retaining washer DIN 6799 - 6

0799060003

$1.49

34

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

35

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

39

FOOTRESTS CPL.

76003040033

$131.55

40

FOOTREST FRONT L/S CPL. 05

61003050000

$50.20

41

FOOTREST FRONT R/S CPL. 05

61003051000

$49.27

43

RETURN SPRING FOOTREST

76003042000

$3.08

50

FOOTREST SUPPORT

76003101095

$35.52

99

CHAIN SLIDING KIT UPPER CPL.

54804067010

$20.75
