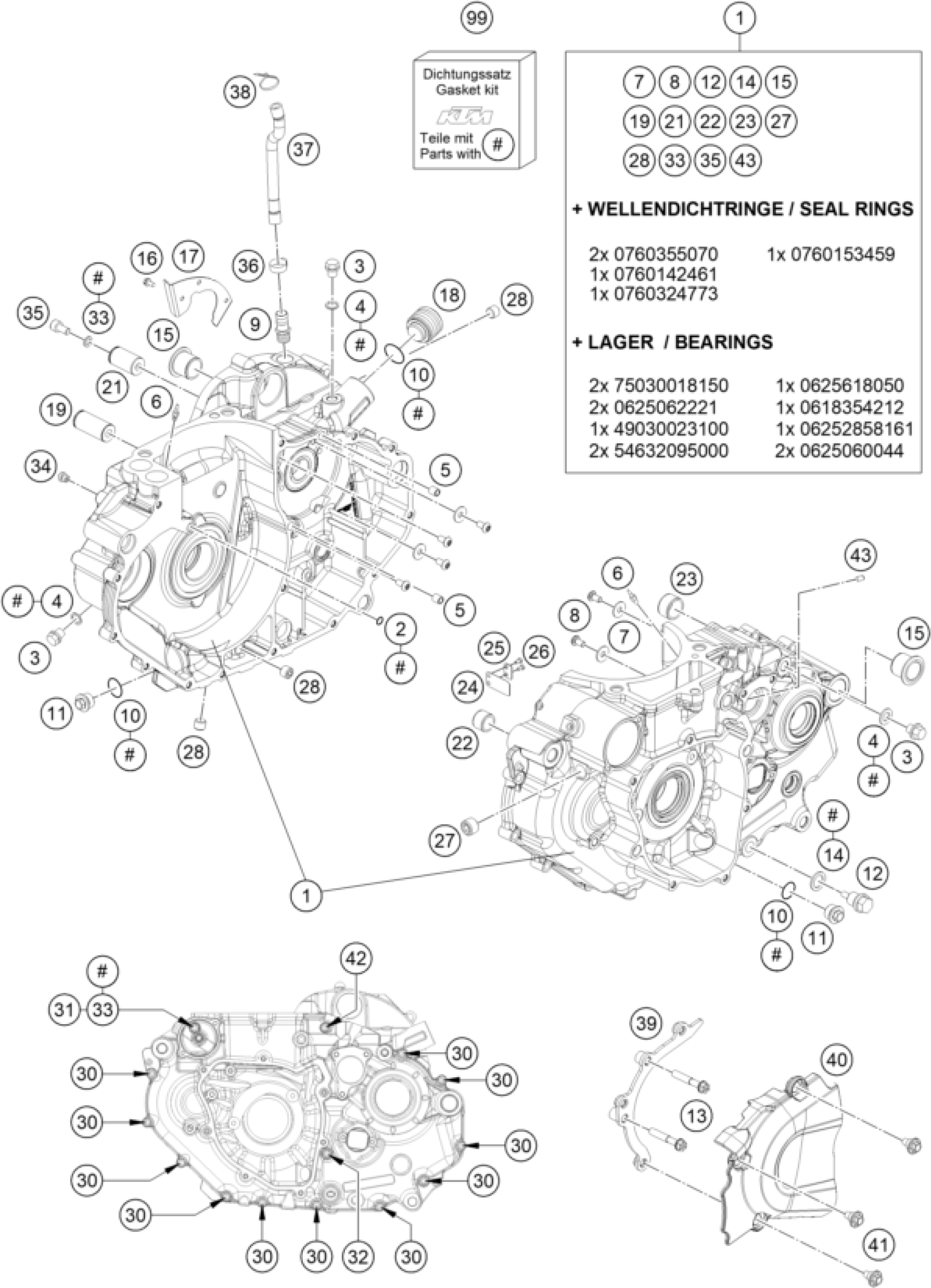

KTM 690 Duke, orange 2018 ENGINE CASE Diagram

#

Description

Price

1

Crankcase cmpl.

7663010003324

Unavailable

2

O-RING 6,07X1,78 FPM75

0770060018

$2.54

3

PLUG DIN0910-M 10X1

0910100003

$4.24

4

sealing ring DIN 7603 10x14x1

0603100141

$2.54

5

dowel sleeve 6x8x11.5

59030023000

Unavailable

6

OIL JET 50 M6X0,75 WS8 05

60030064050

$10.65

7

washer DIN 9021 A - 5.3

0021050003

$1.69

8

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

9

VENTILATION CONNECTOR M16X1,5

60030022000

$8.31

10

o-ring 18.00x2.00 NBR70

0770180020

$2.54

11

PLUG M20X1,5 WS=13

59038017100

$7.85

12

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

13

HH collar screw M6x35 TX30

0025060356

$3.39

14

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.54

15

Housing bush

79230010000

$11.87

16

AH SCREW DIN7984 M5X10 A2

07984050100

Unavailable

17

COVER

75030042000

$19.44

18

LOCK PIECE

75038048100

$30.85

19

BUSHING PIN

54633018400

$21.87

20

o-ring 18.00x2.00 NBR70

0770180020

$2.54

21

BUSHING PIN

59040028000

$10.46

22

DOWEL 17 X 13 X 12

51030026100

$6.44

23

DOWEL 21X12 03

54830027000

Unavailable

24

MEMBRANE 07

75030003051

$2.54

25

STOP SHEET MEMBRANE 07

75030003050

$2.54

26

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.39

27

PLUG SCREW DIN0906 - M14X1,5

0906140150

$3.39

28

pipe plug DIN 906 M10x1

0906100100

$4.24

30

HH collar screw M6x30 TX30

0025060306

$3.39

31

HH collar screw M6x25 TX30

0025060256

$3.39

32

HH COLLAR SCREW M6X70 TX30

0025060706

$3.39

33

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.54

34

JET 160

75030058160

$5.79

35

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

36

CLAMP STD DN22

00049220121

$2.54

37

ENGINE EXHAUST RETURN FLOW

76030086000

$18.88

38

Cable tie 200/4.6mm black

44011076200

$1.69

39

SECURING GUIDE 07

75030047000

$21.03

40

CHAIN GUARD

75030060100

$6.91

41

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.54

42

HH COLLAR SCREW M6X80 TX30

0025060806

$2.54

99

Gasket kit 690 Duke 18

76630099100

$235.89

43

Jet screw M4x8

76638029030

$5.23
