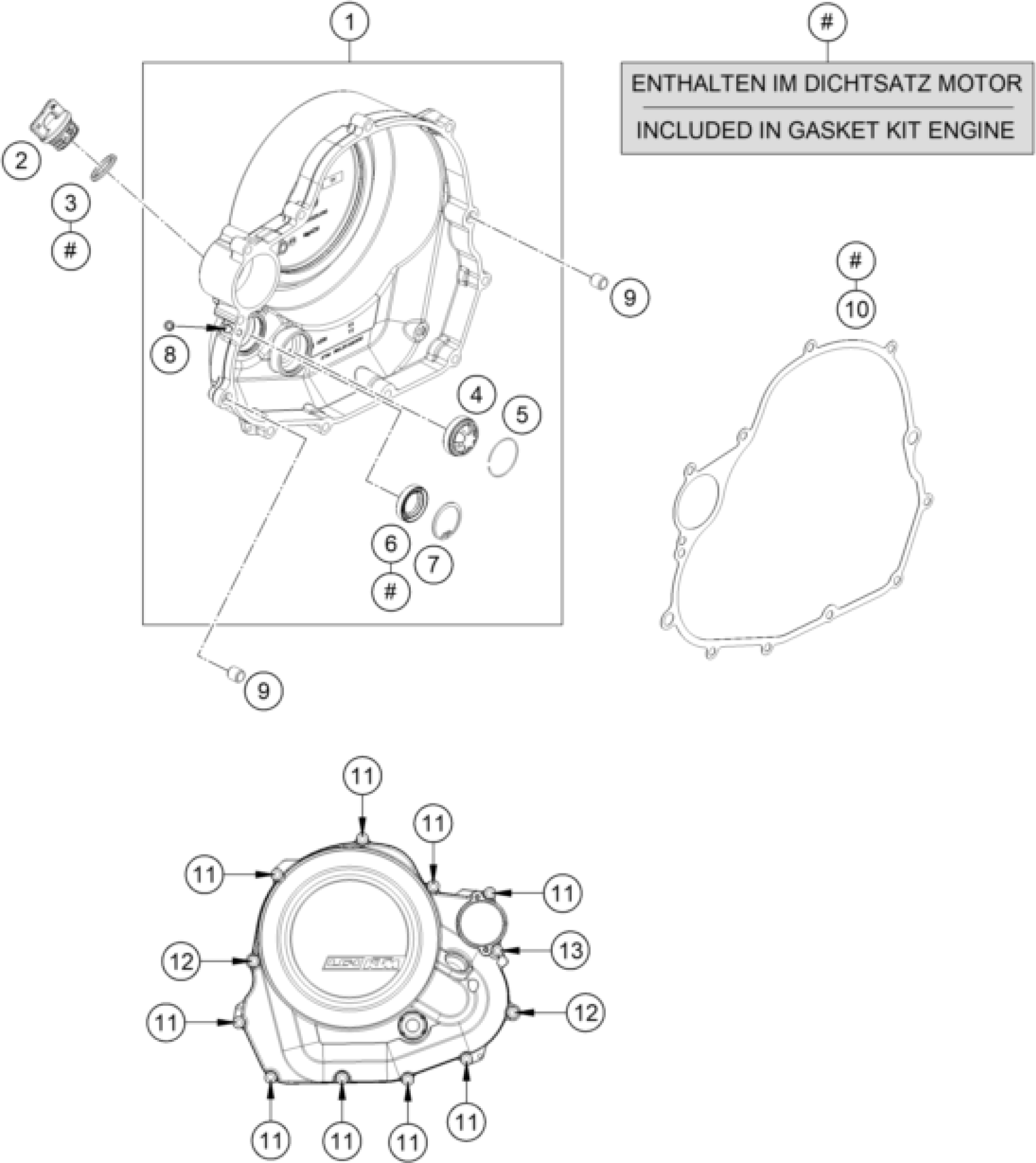

KTM 690 Duke, orange 2018 CLUTCH COVER Diagram

#

Description

Price

1

Clutch cover cpl.

7663000124441

Unavailable

2

oil plug cpl. M24x3

58030020100

$5.23

3

O-RING 19,00X3,00 NBR

0770191015

$2.05

4

OIL SIGHT GLASS

59030019200

$21.31

5

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

6

SHAFT SEAL RING 17X28X6 FKM

0760172861

$10.18

7

CIRCLIP DIN0472-28X1,2

0472280120

$2.05

8

SCREW PLUG

59030296000

$6.26

9

DOWEL 9,8 X 7 X 10

49030090000

$2.05

10

CLUTCH CASE GASKET 07

75030025000

$19.53

11

HH collar screw M6x25 TX30

0025060256

$3.08

12

HH collar screw M6x30 TX30

0025060306

$3.08

13

HH collar screw M6x35 TX30

0025060356

$3.08
