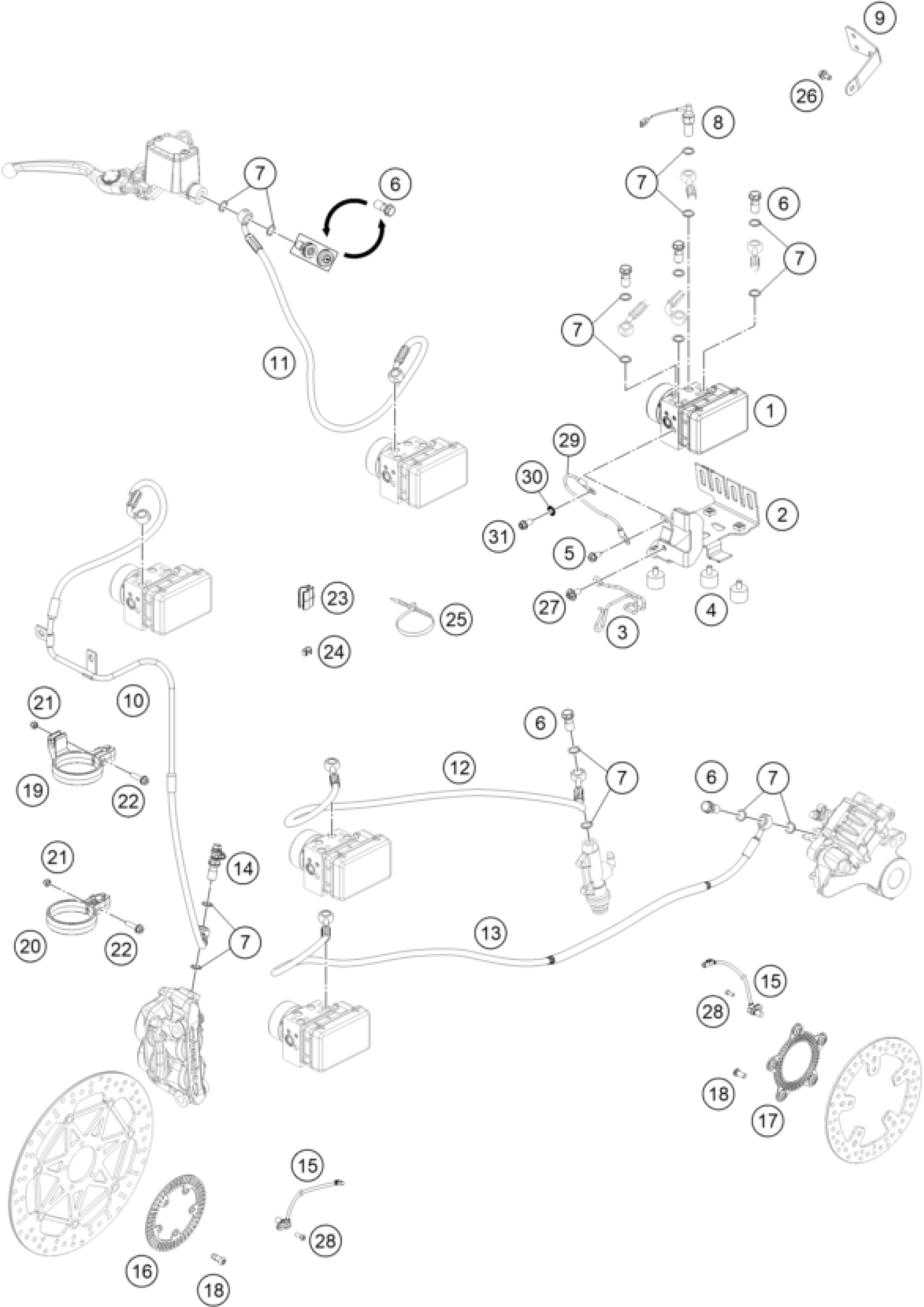

KTM 690 Duke, orange 2018 ABS Diagram

#

Description

Price

1

ABS-MODULE FILLED

76042131044

$3,633.03

2

ABS MOUNTING CPL.

76042040100

$72.17

3

BRAKE PIPE GUIDE

76042001150

$6.26

4

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

5

HH collar screw M5x10 TX30

0025050106

$1.49

6

banjo bolt M10x1x19.5

62113020100

$8.78

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

8

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

9

ABS RELAY BRACKET

76042080050

$5.23

10

BRAKE PIPE

76042001000

$120.89

11

BRAKE PIPE

76042002000

$41.88

12

BRAKE HOSE

76042003100

$44.12

13

BRAKE PIPE

76042004100

$120.79

14

BLEEDER SCREW CPL. 05

62513020000

$27.48

15

ABS-SENSOR

76042125000

$189.98

16

Phonic wheel, front

76042020000

$34.59

17

Sensor wheel rear

76042021000

$35.24

18

Special screw M8X25 SL TX40

76009062000

$2.05

19

CLAMPING BRAKE PIPE

76001071100

$4.11

20

CLAMPING BRAKE PIPE

76001070100

$3.08

21

Self locking nut DIN 985 M5

0985050003

$2.05

22

HH collar screw M5x20 TX30

0025050206

$2.05

23

CABLE SUPPORT 10/4MM 2014

54813026100

$2.05

24

BAR SPACER 4/7 BLACK

60111094100

$5.79

25

Cable tie 200/4.6mm black

44011076200

Unavailable

25

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

26

HH collar screw M6x10 TX30

0025060106

$3.08

27

HH collar screw M6x13 TX30

0024060136

$3.08

28

Cap head bold ISO 14580 M6x16

014580060166

$2.05

29

Ground cable LC4 ABS

76011097050

$4.11

30

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

31

HH collar screw M6x12 TX30

0025060126

$3.08
