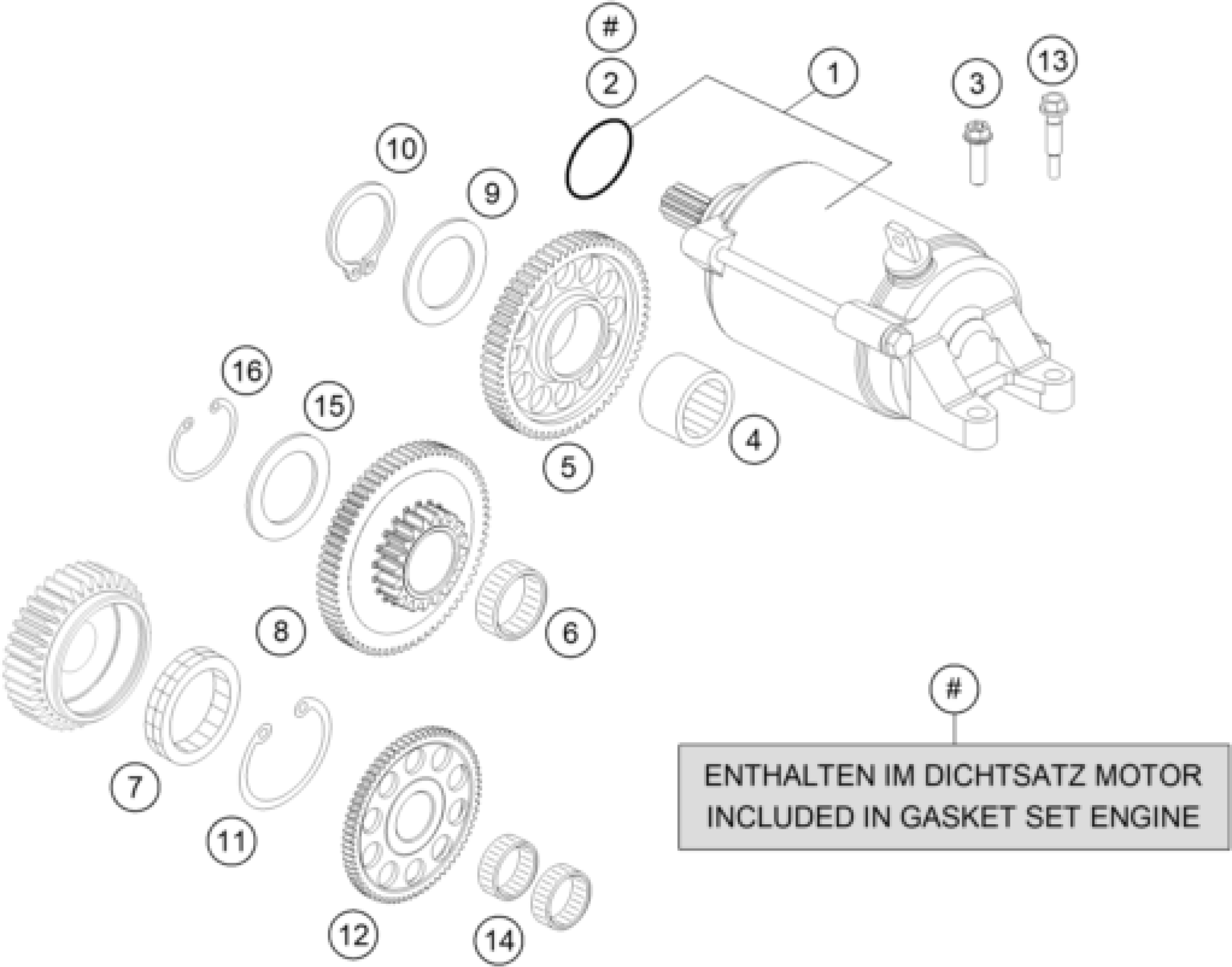

KTM 690 DUKE ORANGE 2017 ELECTRIC STARTER Diagram

#

Description

Price

1

E-Starter Engine cpl.

76640001000

$249.82

2

O-Ring 24,40 x 3,10 NBR 70

0770244031

$1.49

3

HH collar screw M6x20 TX30

0025060206

$3.08

4

NEEDLE SLEEVE HK 1712 17X23X12

0618172312

$7.75

5

STARTER INTERMEDIATE GEAR

75040022100

$34.12

6

NEEDLE BEARING K17X21X17

0405172117

$7.66

7

FREE WHEEL

76640026000

$108.64

8

TORQUE LIMITER

75040015100

$102.84

9

STOP DISK 17,2X25X1

54633090000

$5.23

10

CIRCLIP DIN0471-17X1

0471170010

$2.05

11

CIRCLIP DIN0472 J56

0472056200

$3.08

12

FREE WHEEL GEAR

75040020100

$64.23

13

HH COLLAR SCREW M 6X30

76240030000

$28.79

14

NEEDLE BEAR. K 26X30X13

0405263013

$8.97

15

STOP DISK 17,2X22X1

75040015007

$5.79

16

CIRCLIP DIN 0471-17X1

0471170100

$3.08
