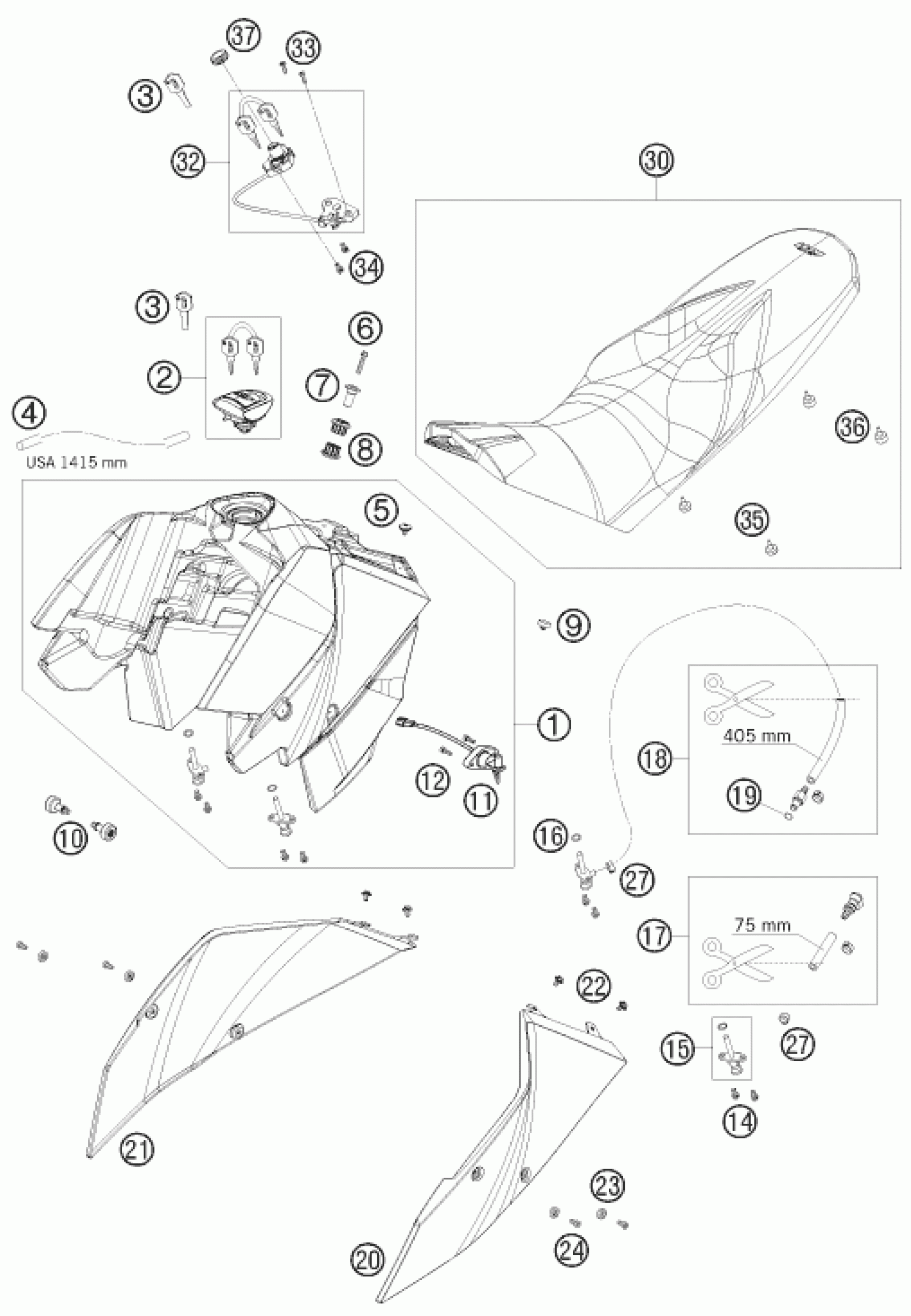

KTM 690 DUKE ORANGE 2008 TANK, SEAT Diagram

#

Description

Price

1

FUEL TANK CPL. BLACK/ORANGE 08

7500701304475A

Unavailable

11

GAS-LEVEL SENSOR ADV. 2006

58207080100

Unavailable

12

AH collar screw DIN 912 M5x16

0912050163

Unavailable

2

TANK PLUG 06

58407008200

Unavailable

3

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

4

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

5

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

6

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

7

BEARING BUSHING OUTSIDE 03

60007060000

Unavailable

8

TANK RUBBER BUSHING 03

60007065000

Unavailable

9

RUBBER BUFFER

54308042000

Unavailable

10

SPECIAL SCREW M8 06

62507026100

Unavailable

14

HH collar screw M6x12 TX30

0025060126

Unavailable

15

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

16

O-RING 11X1,8 NBR 70

55007006200

Unavailable

17

FUEL HOSE WITH CLUTCH

75007116060

Unavailable

18

FUEL HOSE WITH CLUTCH

75007016050

Unavailable

19

O-ring VITON f. plug CPC 0

58507012000

Unavailable

20

SPOILER L/S BLACK-MET.+DECAL08

7500805000040C

Unavailable

21

SPOILER R/S BLACK-MET.+DECAL08

7500805100040C

Unavailable

22

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

23

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

24

AH SCREW DIN6912 M6X12

0012060123

Unavailable

27

VARIABLE ONE-EAR CLAMP 14,2 MM

00050142706

Unavailable

30

SEAT 08

75607040000

Unavailable

32

SEAT LOCK 05

62507050000

Unavailable

33

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

Unavailable

34

HH collar screw M5x12 TX30

0025050126

Unavailable

35

SEAT RUBBER 6 MM

75007046020

Unavailable

36

SEAT RUBBER 10 MM

75007046010

Unavailable

37

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

Unavailable
