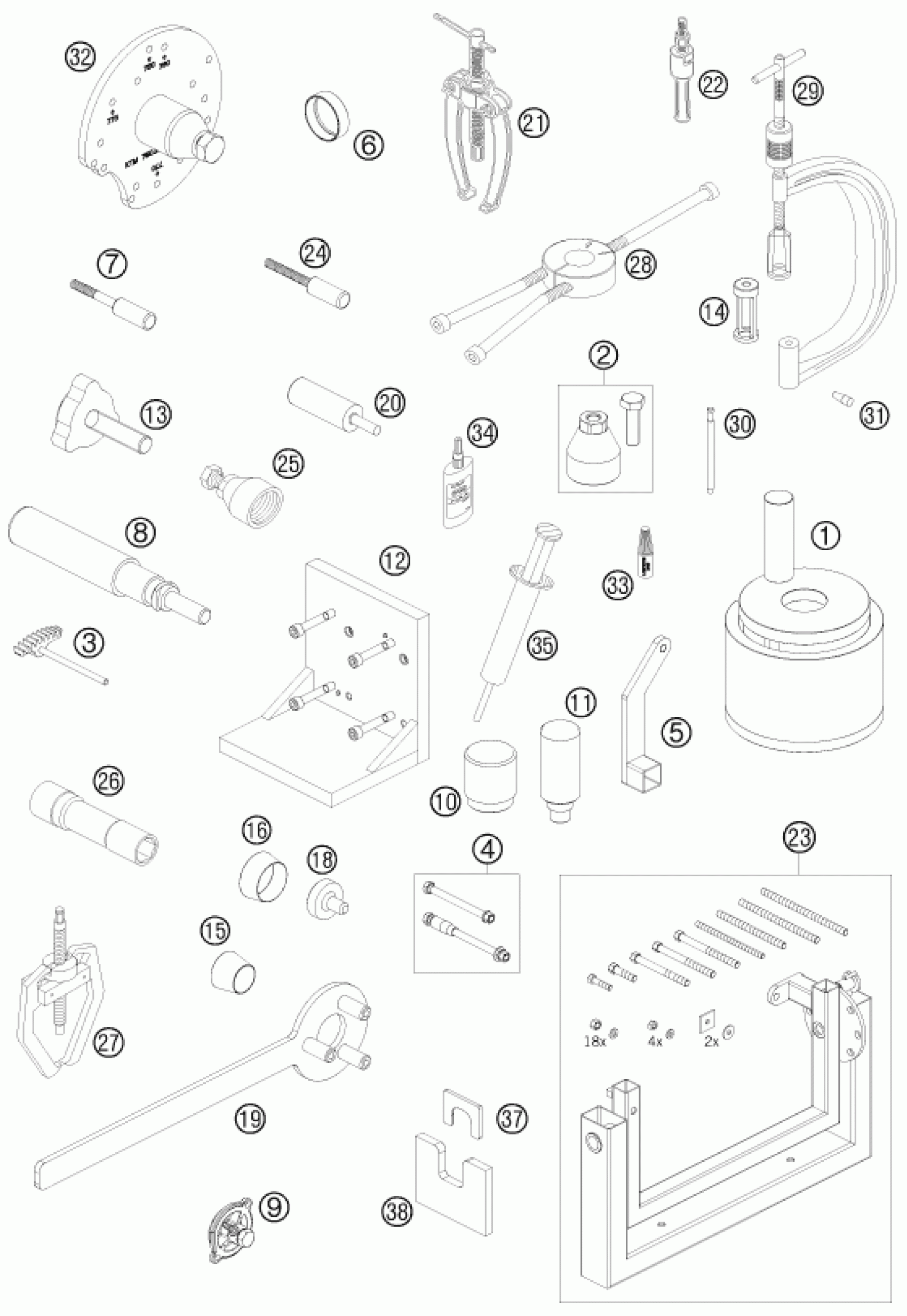

KTM 690 DUKE ORANGE 2008 Special tools (engine) Diagram

#

Description

Price

1

PRESS. TOOL F. CRANKS. CPL.

75029047000

$677.00

2

EXTRACTOR PRIM. CPL.

75029021000

$53.01

3

GEAR SEGMENT CPL.

75029081000

$43.44

4

SUPPORT CPL.

75012001060

$130.76

8

PLUG IN FUSE PISTON PIN

75029035000

$56.14

9

OIL PRESSURE ADAPTER

75029094000

$78.27

12

ON TENSIONER PL. CYLINDER HEAD

75029050000

$245.56

13

PRESS OUT PUNCH CPL.

75029051000

$41.35

14

INSERT FOR VALVE SPRING LEVER

77329060000

$52.75

15

MOUNT.SLEEVE F. SH.S.RING MS

75029080000

$31.01

16

MOUNT.SLEEVE F. SH.S.RING KS

75029080050

$29.84

18

PROTECTOR CAP F.CRANKSHAFT 07

75029090000

$24.34

19

HOLDING SPANNER FOR FLYWHEEL

75029091000

$151.96

20

UNLOCK CHAIN TENSIONER

77329051000

$45.02

21

BUSHING EXTRACTOR

15112017000

$179.32

22

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

23

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

24

LOCATING SCREW

77329010000

$25.77

25

MAGNETO EXTRACTOR

58429009000

$40.04

26

SPARK PLUG WRENCH

75029172000

$71.33

27

EXTRACTOR FOR TIMING GEAR

59029033000

$164.93

28

MOUNTING TOOL F.BEARING NJ 207

58429037043

$91.88

29

VALVE SPRING LEVER

59029019000

$415.46

30

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

$32.84

31

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

$53.52

32

CASING DISMOUNTING TOOL 07

75029048000

$237.97

33

LOCTITE 243 BLUE 5 ML

6899785

$28.04

34

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

35

LOCTITE 5910 50ML

58429059200

$28.88

37

PRESS OUT PLATE TOP PART

75029047050

$204.59

38

PRESS OUT PLATE BOTTOM PART

75029047051

$245.43

10

PRESS PUNCH CAMSH. BEAR. LARGE

75029044010

$37.82

11

PRESS PUNCH CAMSHAFT BEAR. SM.

75029044020

$37.69

5

RETAIN. ARM F. ENG.WORK STAND

75012001070

$61.77

6

PISTON R. COMPRESSOR DM=102

75029015102

$90.97

7

MOUNTING SCREWS

75029033000

$65.44
