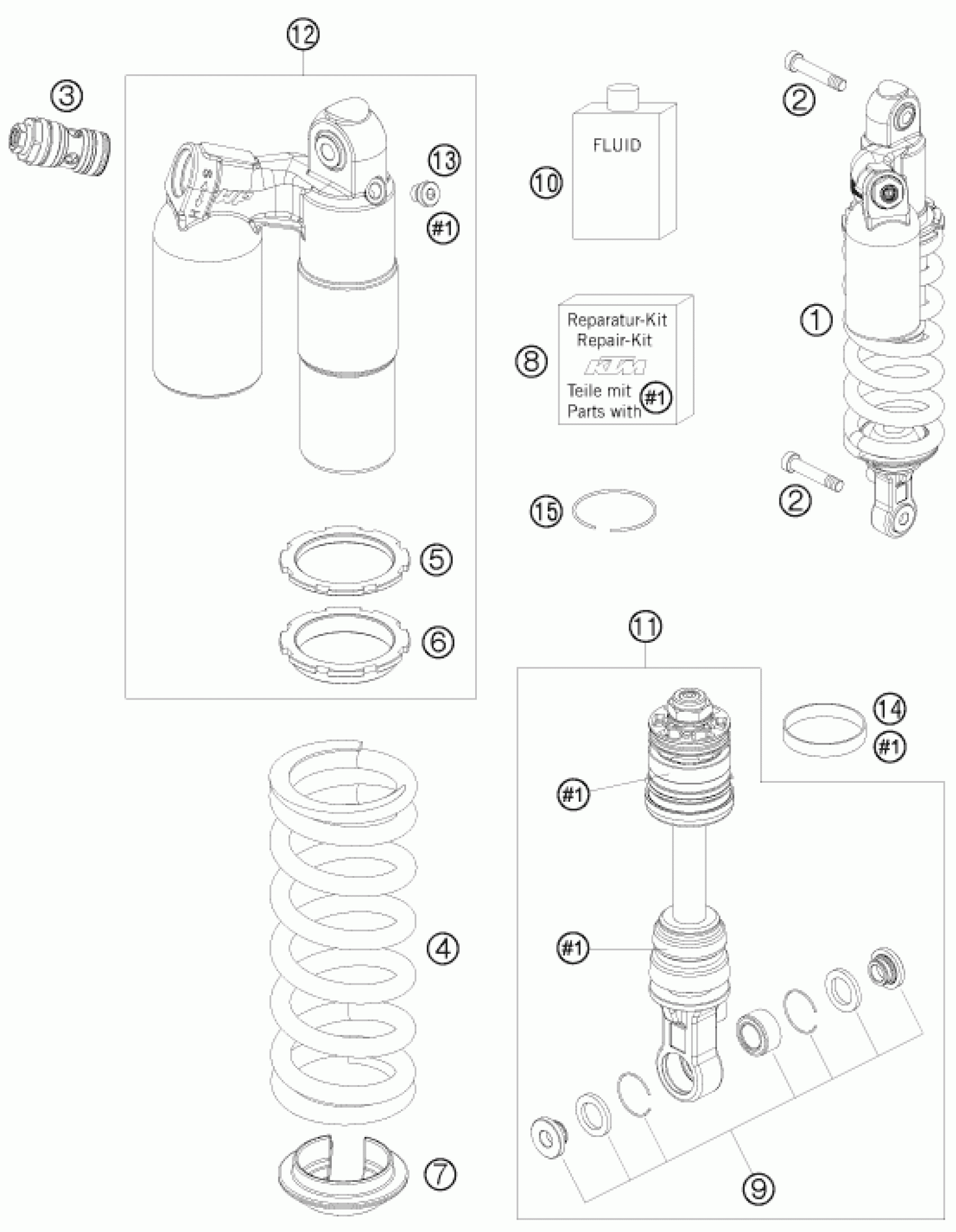

KTM 690 DUKE ORANGE 2008 SHOCK ABSORBER Diagram

#

Description

Price

12

MONOSHOCK CASE TOP 07

46180442S1

Unavailable

13

HS cylinder-head screw R1/8 l8

50180095

Unavailable

15

Round-wire snap ring 49x1,5

46810010

Unavailable

1

MONOSHOCK 690 DUKE 08

15187D09

Unavailable

2

SCREW M 10 L=53MM 07

75004016000

Unavailable

3

DCC-COMPR.DAMP.CONTROL CPL. 07

46180533S

Unavailable

4

SPRING 185MM 70N/MM (61)

91110012S

Unavailable

5

COUNTERNUT

46180445

Unavailable

6

ADJUSTING NUT

46180444

Unavailable

7

Spring retainer 28x73x15

46180396

Unavailable

8

REPAIR-KIT GASKET 05

R15002

Unavailable

9

REPAIR KIT BEARINGS 07

R15006

Unavailable

11

SHOCK ABS. BOTTOM CPL. DUKE

46180654S4

Unavailable

10

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

4

SPRING 185MM 75N/MM (61)

91110013S

Unavailable

14

PISTON RING

46810361

Unavailable
